Slim SAS 4i 38-pin to four SATA 7-pin fanout cable 50cm

Shenzhen Shenzhong TECH. CO. LTD.

Shenzhen Shenzhong TECH. CO. LTD. Slim Line SAS 4.0 SFF-8654 4i 38pin to 4 SATA 7pin Cable 50cm

SKU CH-Z692-0J3AC

Connects a Slim SAS SFF-8654 4i host to four SATA drives at 24 Gbps per channel over 50 cm

  • Connector TypeUSB A to USB B
  • Connect internal SATA drives to Slim SAS controllers
  • 24 Gbps SAS and 8 GT/s PCIe per channel
  • Four independent channels for multi-drive arrays
  • 50 cm length suits compact chassis builds
  • Meets SAS 3.0 and SlimSAS SFF-8654 specifications

Slim Line SAS 4.0 fan-out cable

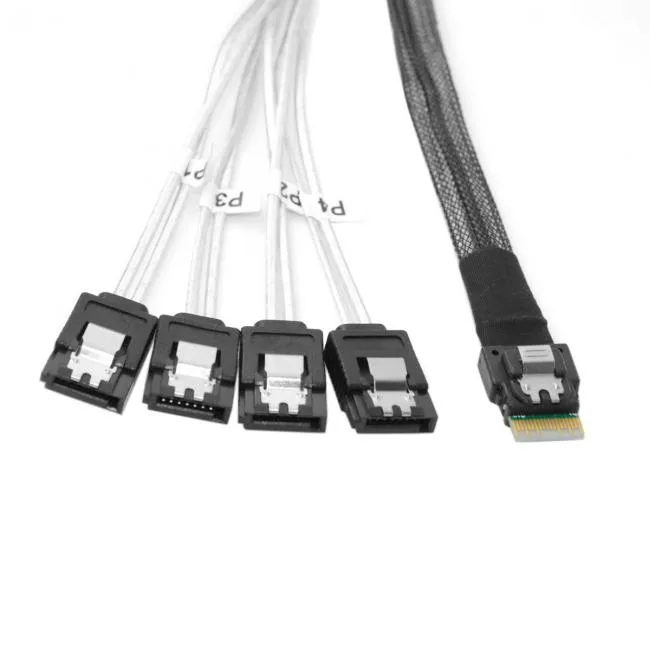

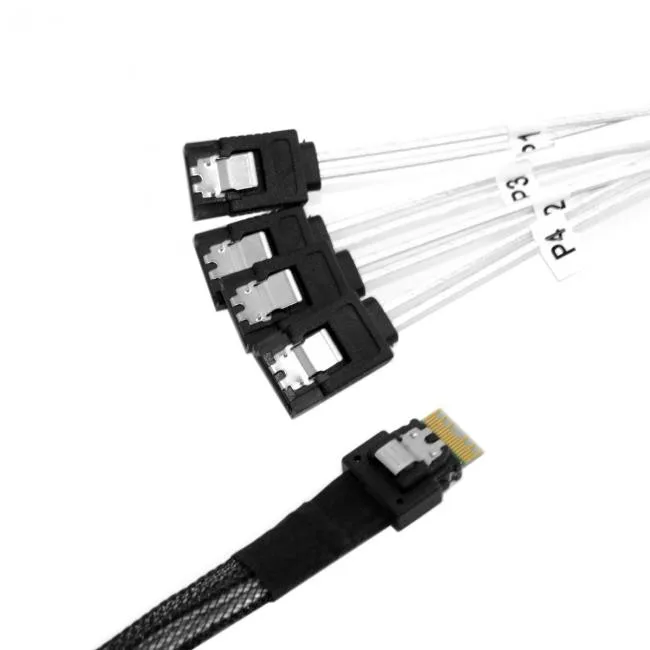

This cable links a controller with a Slim SAS SFF-8654 4i 38-pin connector to four SATA 7-pin drives. It is built for internal use in servers or workstations that need to break out a single high-density port into multiple drive connections.

Upgrades from older SAS 3.0 fan-out cables

The assembly meets the SAS 3.0 and SlimSAS SFF-8654 specifications while supporting 24 Gbps SAS and 8 GT/s PCIe per channel. The jump is worth it when the controller and backplane both support the 4.0 signalling rate and the 50 cm reach fits the chassis layout.

Handles four drive channels at full 4.0 speed

Each of the four lanes carries the rated 24 Gbps SAS bandwidth, giving ample headroom for current enterprise SSDs and HDDs. The limit appears when the host controller cannot supply four lanes at the higher rate or when cable routing exceeds the fixed 50 cm length.

Highlights

  • Connect internal SATA drives to Slim SAS controllers
  • 24 Gbps SAS and 8 GT/s PCIe per channel
  • Four independent channels for multi-drive arrays
  • 50 cm length suits compact chassis builds
  • Meets SAS 3.0 and SlimSAS SFF-8654 specifications

Specifications

Connector TypeUSB A to USB B

Questions about this item

What controller connector does the 38-pin SFF-8654 4i end plug into?

It plugs into a Slim SAS SFF-8654 4i host connector on the controller or backplane.

Which orientation is correct when seating the SFF-8654 4i connector?

Align the keyed notch on the 38-pin plug with the slot on the host port and press straight in until the latch clicks.

When should the 50 cm fan-out cable be replaced?

Replace it if the SATA 7-pin latches break, the Slim SAS latch fails to hold, or signal errors appear on any of the four channels.
