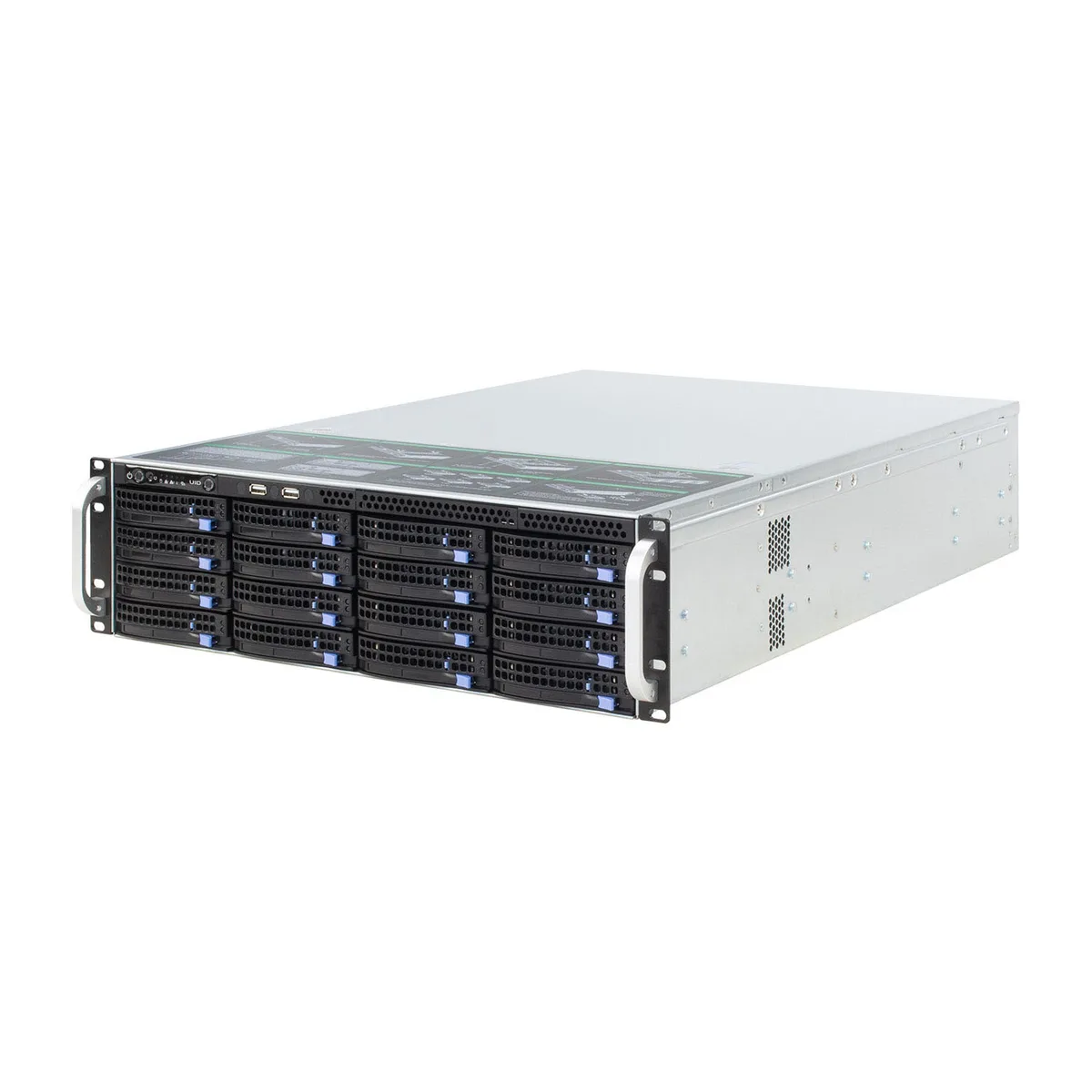

Silver 3U rackmount server chassis with sixteen front 3.5-inch hot-swap drive bays and three 12038 fans

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co. 3U server chassis 16×3.5″ hot-swap 6Gb/s Expander SFF8087

SKU CH-BVBB-CRR8K

A 3U server chassis holding sixteen hot-swap 3.5″ drives on a 6 Gb/s SAS expander backplane with SFF-8087 connectors

  • Form Factor3U
  • 16 front 3.5″ hot-swap bays with 6Gb/s SAS expander backplane
  • Three 12 cm hot-swap ball fans provide temperature-controlled cooling
  • Tool-free top-cover release speeds hardware maintenance
  • Seven full-height PCIe slots support vertical add-in cards
  • Compatible with standard 2U and CRPS redundant power supplies up to 240mm

3U Chassis with 16 Hot-Swap Bays

This 3U server chassis holds sixteen front-access 3.5" drives and three internal 2.5" drives. The 6Gb/s expander backplane uses SFF8087 mini-SAS connectors and adds SGPIO signalling with staggered spin-up. Tool-free top cover removal and anti-EMI drive carriers with activity LEDs simplify daily maintenance.

Suited for Dense Storage Builds

The enclosure fits standard motherboards up to 12" × 10.5" and provides seven full-height vertical PCIe slots. Three hot-swap 12038 ball fans and dual 2.0 USB ports are included. Builders who need more than sixteen front bays, horizontal card orientation, or a smaller form factor should consider a different platform.

Sustained Operation with Redundant Cooling

Three hot-swap 12038 ball fans maintain airflow under continuous load while the expander backplane manages drive temperatures. The chassis accepts standard 2U or CRPS redundant power supplies up to 240 mm long. Front-panel LEDs report power, fan, over-heat and drive status for quick diagnostics.

Highlights

  • 16 front 3.5″ hot-swap bays with 6Gb/s SAS expander backplane
  • Three 12 cm hot-swap ball fans provide temperature-controlled cooling
  • Tool-free top-cover release speeds hardware maintenance
  • Seven full-height PCIe slots support vertical add-in cards
  • Compatible with standard 2U and CRPS redundant power supplies up to 240mm

Specifications

Form Factor3U

Questions about this item

Which motherboard size must I already have to fit this 3U chassis?

The chassis accepts standard motherboards up to 12 × 10.5 inches, so your board must not exceed those dimensions.

Can I keep my existing 2.5″ drives when moving to this chassis?

Yes, the 16 front bays take 3.5″ drives and are also compatible with 2.5″ HDD or SSD, plus three internal 2.5″ slots are provided.

How do I confirm the expander backplane is operating correctly after installation?

Each drive tray has a light-guide column that shows the drive working state, and the backplane supports SGPIO so drive activity and status appear on the front LEDs.
