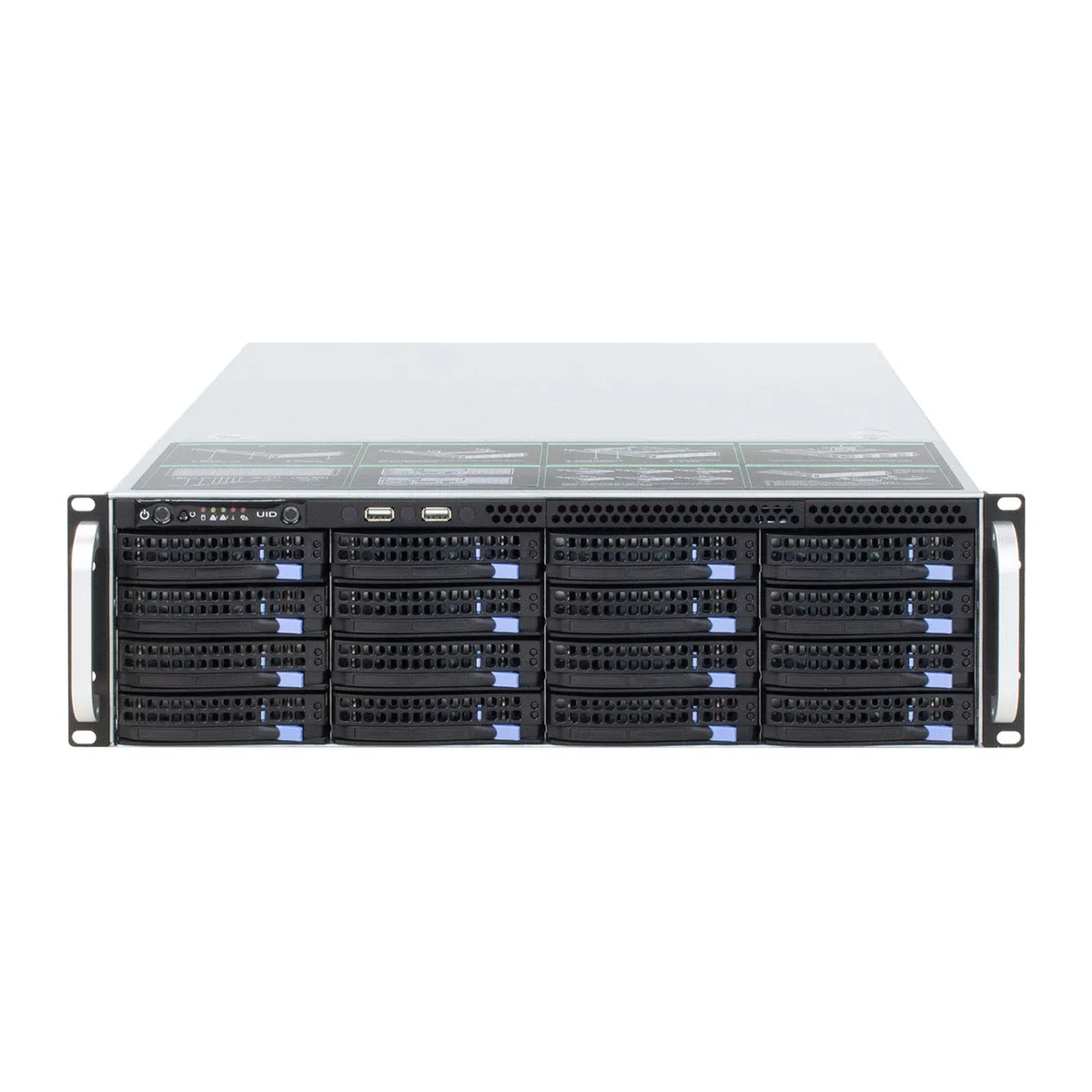

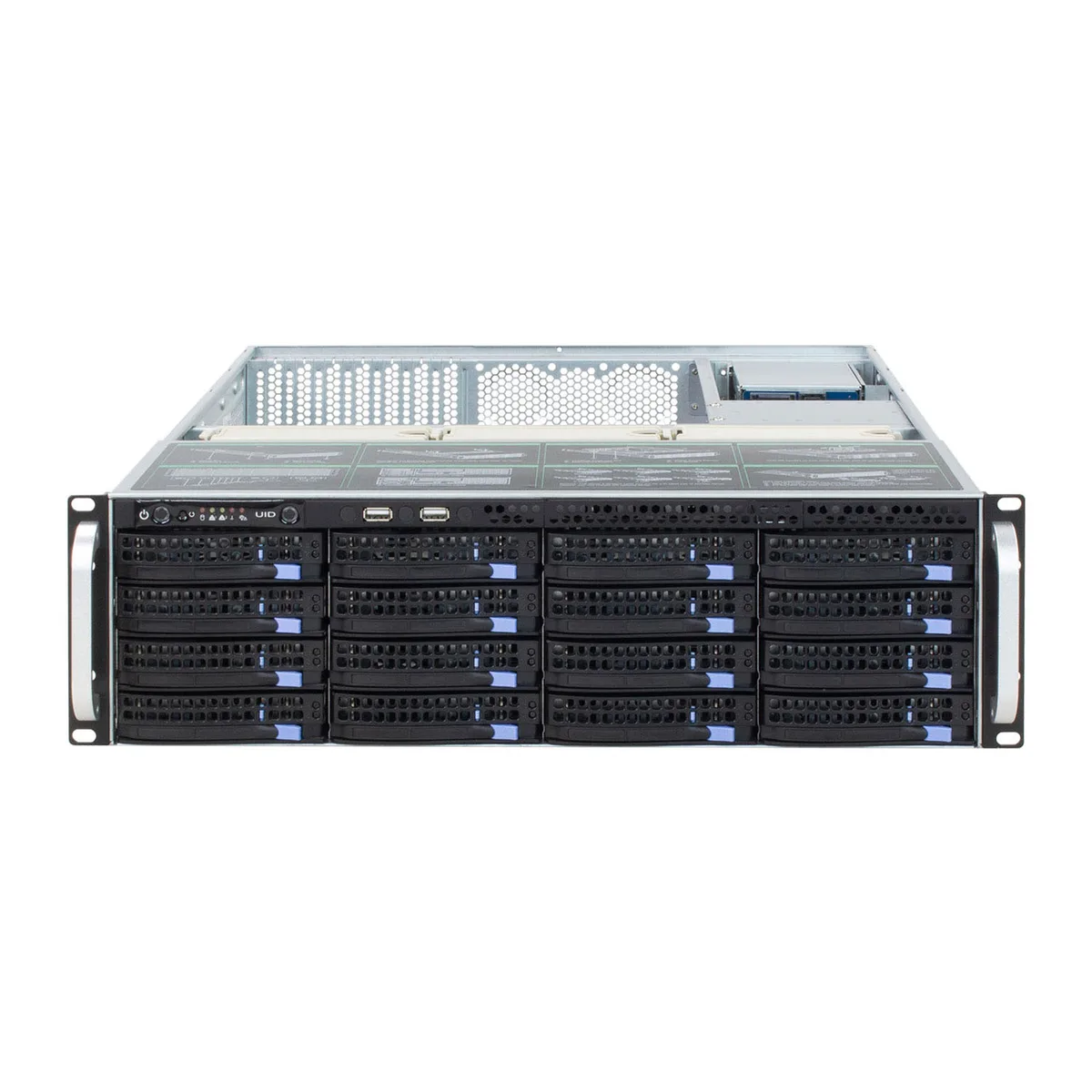

Silver 3U rack chassis, sixteen front 3.5-inch hot-plug bays, three 12038 fans, tool-free top cover

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 3U Server Chassis 16×3.5" Hot-Plug SAS 8087

SKU CH-QRTK-RZCNF

A 3U server chassis holding 16 front 3.5-inch hot-plug drives plus three internal 2.5-inch bays, with a 6Gb/s Mini-SAS backplane, three hot-swap 12038 fans, and seven full-height PCIe slots

  • Form Factor3U
  • 16 front 3.5" hot-plug bays with SAS 8087 backplane
  • Three hot-swappable 12038 ball fans for cooling
  • Tool-free top cover for fast maintenance
  • Supports standard 12" × 10.5" motherboards
  • Seven full-height vertical PCI/PCIe expansion slots

3U Server Chassis with 16 Hot-Plug Bays

This 3U server chassis holds sixteen front 3.5" hot-plug drive bays compatible with 2.5" drives and three internal 2.5" bays. It supports motherboards up to 12" × 10.5" and provides seven full-height vertical PCI/PCIe expansion slots. The backplane uses a 6Gb/s Mini-SAS SFF-8087 interface with temperature control and SGPIO.

Upgrade from Fixed or Smaller-Count Bays

The chassis replaces enclosures that lack hot-plug capability or that offer fewer than sixteen front bays. The jump is worth it when workloads require simultaneous access to many drives without downtime for swap-outs. It also suits builds that need both high front density and internal 2.5" positions for boot or cache devices.

Sustained Operation with Temperature-Controlled

Three hot-swappable 12038 ball fans run under temperature control to maintain airflow during continuous load. The anti-EMI drive carriers with light-guide columns show drive status at a glance. Tool-free top cover release and a 240mm max-length CRPS redundant power supply option support serviceability without interrupting long-running storage or compute tasks.

Highlights

  • 16 front 3.5" hot-plug bays with SAS 8087 backplane
  • Three hot-swappable 12038 ball fans for cooling
  • Tool-free top cover for fast maintenance
  • Supports standard 12" × 10.5" motherboards
  • Seven full-height vertical PCI/PCIe expansion slots

Specifications

Form Factor3U

Questions about this item

What rack depth and width does the 560 mm deep, 437.5 mm wide 3U chassis require?

The chassis measures 560 mm deep by 437.5 mm wide by 132 mm high and fits a standard 3U rack opening; verify your cabinet provides at least 560 mm usable depth and the 437.5 mm mounting width.

How are the three 12038 ball fans installed and what is the common mistake?

The three 12038 ball fans mount in the hot-swappable fan positions; the step often missed is fully seating each fan until the latch clicks so the SGPIO and temperature-control backplane can monitor speed and fault LEDs.

Which drive trays and backplane connectors will need replacement after extended use?

The 16 front hot-plug trays for 3.5 or 2.5 drives and the three internal 2.5 trays slide on rails with light-guide columns; the SFF-8087 Mini-SAS backplane with SGPIO and temperature control is the component most likely to require replacement after heavy insertion cycles.
