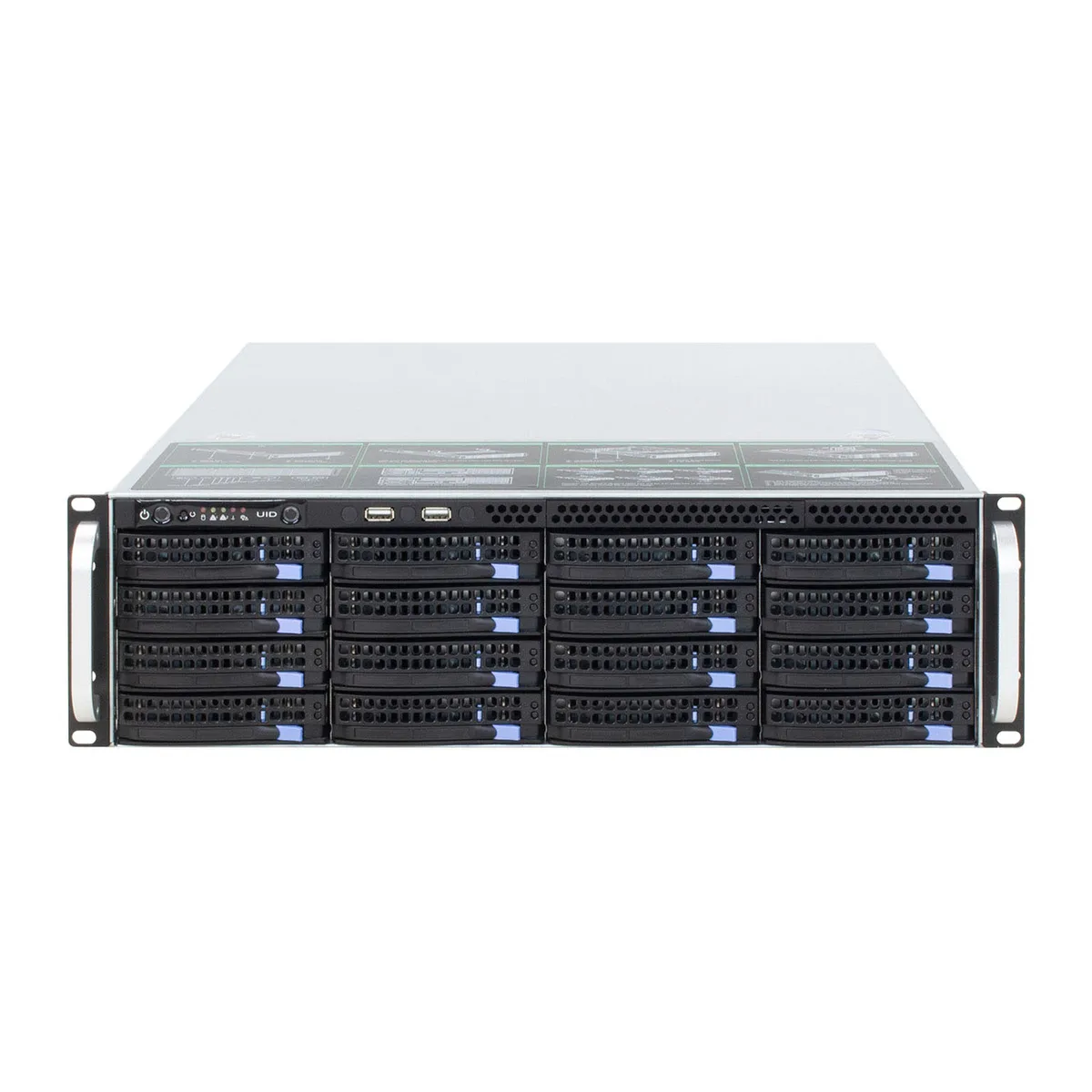

Silver 3U rack chassis with sixteen front drive bays and three 12 cm fans

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 3U 16-Disk Server Chassis with 6Gb/s Expander Backplane

SKU CH-3PM5-YWXGC

A 3U server chassis that holds sixteen hot-swappable 3.5" drives plus three internal 2.5" bays, using a 6Gb/s SAS expander backplane with SGPIO and staggered spin-up

  • Form Factor3U
  • 16 hot-swap 3.5-inch bays with anti-EMI carriers and LED status
  • 6 Gb/s expander backplane with Mini-SAS SFF-8087, SGPIO and staggered spin-up
  • Three hot-swap 12038 ball fans with optional high-pressure models
  • Seven full-height PCIe slots plus three internal 2.5-inch drive positions
  • Fits standard 2U or CRPS redundant PSUs up to 300 mm long

3U 16-Bay Server Chassis

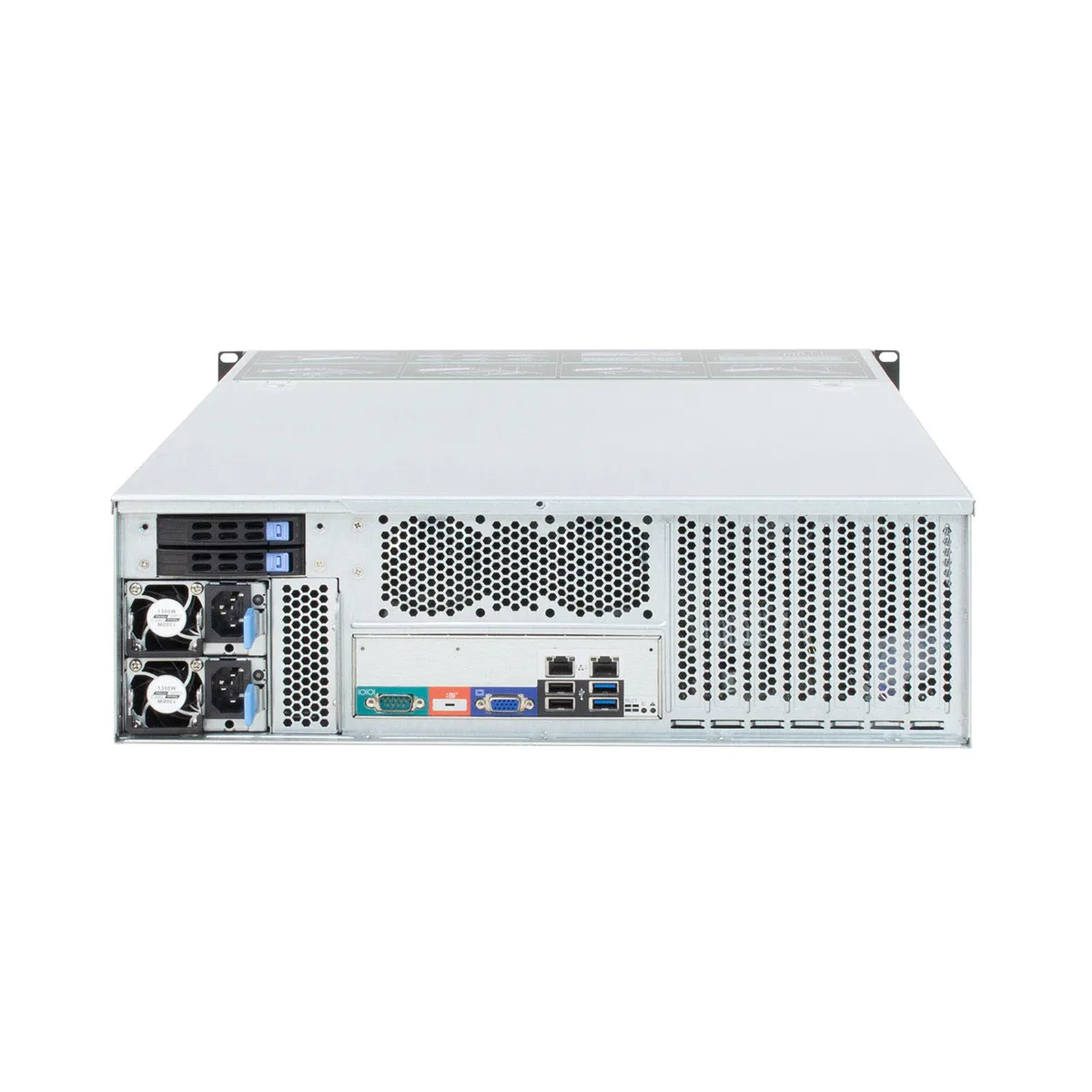

This 3U rackmount chassis holds sixteen front-access 3.5-inch drive trays plus three internal 2.5-inch positions. The 6Gb/s expander backplane uses Mini-SAS SFF-8087 connectors and adds temperature monitoring, SGPIO signalling and staggered spin-up. Seven full-height PCIe slots run vertically at the rear for add-in cards.

Check Backplane and Power Fit

Verify your host bus adapter or RAID card provides enough Mini-SAS SFF-8087 ports for the expander. The chassis accepts standard 2U power supplies or CRPS redundant units up to 300 mm long, typically rated 400 W to 700 W. Ensure your rails support a 650 mm deep enclosure and that 1.0 mm SGCC construction meets your rack specifications.

Sustained Operation Cooling

Three hot-swappable 12038 ball-bearing fans deliver high static pressure across the dense drive array and expansion cards. Fan failure and over-temperature LEDs alert operators before thermal throttling occurs. Staggered drive spin-up limits inrush current during power-on sequences in cloud storage, big data or security monitoring deployments.

Highlights

  • 16 hot-swap 3.5-inch bays with anti-EMI carriers and LED status
  • 6 Gb/s expander backplane with Mini-SAS SFF-8087, SGPIO and staggered spin-up
  • Three hot-swap 12038 ball fans with optional high-pressure models
  • Seven full-height PCIe slots plus three internal 2.5-inch drive positions
  • Fits standard 2U or CRPS redundant PSUs up to 300 mm long

Specifications

Form Factor3U

Questions about this item

Does the chassis include drives or only the empty enclosure with backplane and fans?

The unit ships as an empty 3U chassis with a 6Gb/s expander backplane, three hot-swappable 12038 ball fans and rails; all 3.5" or 2.5" drives must be purchased separately.

Which drive counts and form factors does the backplane support?

The front expander backplane accepts sixteen 3.5" drives and is also compatible with 2.5" HDDs or SSDs; three additional internal 2.5" bays are available.

What power supplies fit the chassis and how many PCIe slots are usable?

Standard 2U supplies from 400 W to 700 W or CRPS redundant units up to 300 mm long are compatible; seven full-height PCI/PCIe slots are mounted vertically at the rear.
