Silver 2U rackmount server chassis with eight front hot-swap drive bays

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 2U 8-Bay Hot-Swap Server Chassis 6Gb/s SATA Backplane E-ATX

SKU CH-ZQRP-B5TKP

A 2U rackmount chassis with eight hot-swap 3.5-inch SATA or SAS drive bays and a 6Gb/s backplane for E-ATX boards

  • Chassis TypeRackmount
  • Eight hot-swap 3.5" bays deliver high-density storage
  • 6 Gb/s SATA backplane supports fast drive throughput
  • Standard 19" rackmount fits existing cabinet infrastructure
  • 0 mm SGCC steel chassis resists electromagnetic interference

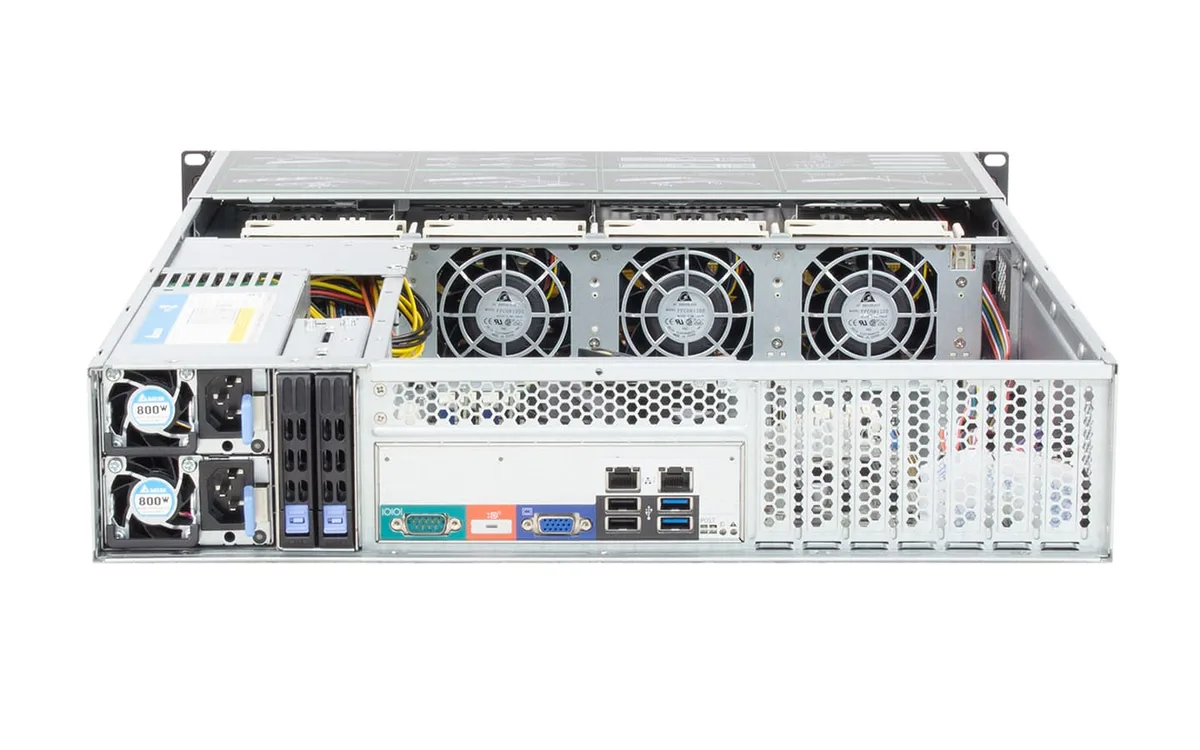

  • Three 8025 AVC ball-bearing fans provide reliable cooling

2U 8-Bay Hot-Swap Server Chassis

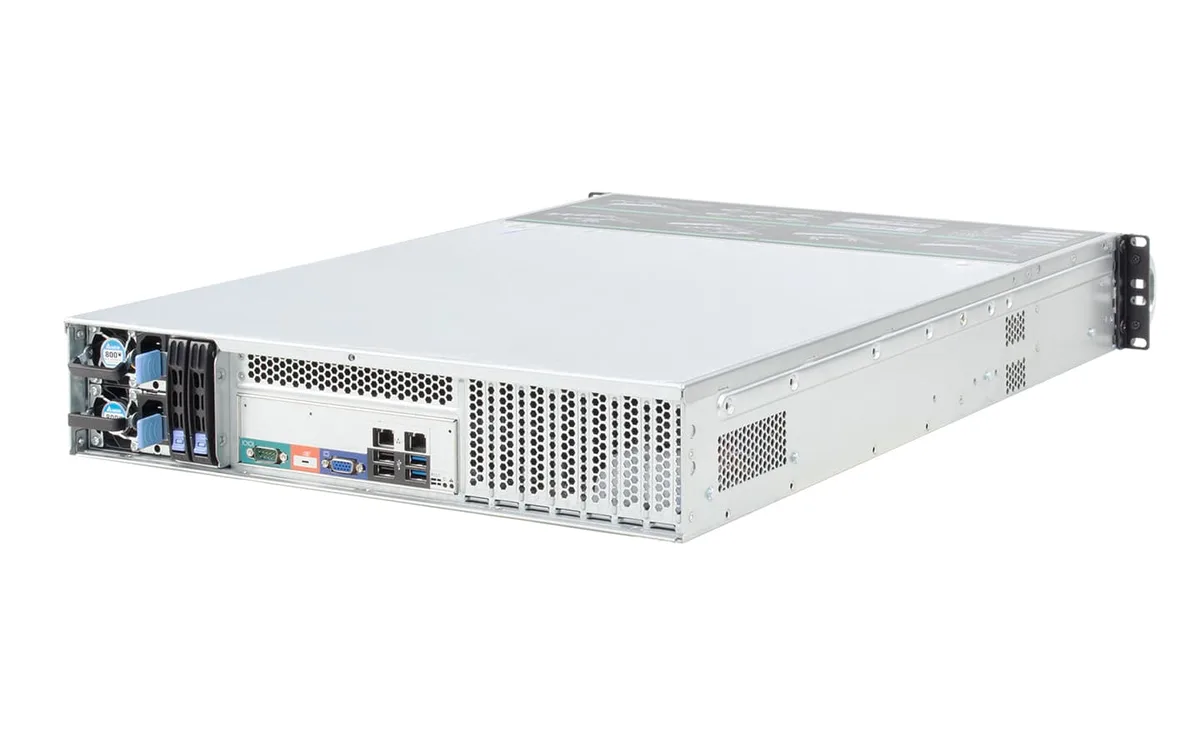

This 2U rackmount chassis fits a standard 19-inch rack and measures 437.5 mm by 650 mm by 88 mm. It is built from 1.0 mm SGCC zinc-coated steel and supports E-ATX motherboards up to 12 inches by 13 inches. Eight hot-swap 3.5-inch drive bays connect through a 6Gb/s SATA backplane that also accepts SAS drives. Seven full-height PCI or PCIe expansion slots provide room for add-in cards.

Storage servers needing eight hot-swap bays in 2U

The chassis suits builders deploying cloud storage, big data or security monitoring platforms that rely on SATA or SAS hard drives. It is not for systems that require more than eight 3.5-inch bays or that need a larger form factor than 2U. The optional slim optical bay only accepts 2.5-inch drives, so a separate enclosure is necessary for 5.25-inch media. Front USB connectivity defaults to USB 2.0 unless the USB 3.0 option is specified.

6Gb/s SATA backplane with SAS support

The single specification that decides fit is the 6Gb/s SATA backplane, which also runs SAS II or III drives at 6Gb/s. This backplane includes a temperature control chipset and connects directly to the motherboard or RAID controller via Mini SAS cables. Selecting a 12Gb/s Mini SAS backplane variant changes the maximum interface speed, so the chosen backplane version must match the host controller capability.

Highlights

  • Eight hot-swap 3.5" bays deliver high-density storage
  • 6 Gb/s SATA backplane supports fast drive throughput
  • Standard 19" rackmount fits existing cabinet infrastructure
  • 0 mm SGCC steel chassis resists electromagnetic interference
  • Three 8025 AVC ball-bearing fans provide reliable cooling

Specifications

Chassis TypeRackmount

Questions about this item

How do I verify the 6Gb/s SATA backplane is functioning after installing drives?

The front panel provides individual HDD LED indicators for each of the 8 bays and a Power LED; both should illuminate when drives are seated and the system powers on.

Which components are included with the 2U 8-bay chassis and what must be sourced separately?

The chassis, 6Gb/s SATA backplane and three 8025 AVC ball-bearing fans are supplied; motherboard, CPU, memory, drives, 2U PSU, slim CD-ROM and optional fourth fan are not included.

Which backplane version should I select for 12Gb/s SAS drives in this 8-bay unit?

Choose the 12Gb/s MINI SAS backplane option; it includes a temperature-control chipset and supports SAS II or III at 6Gb/s per bay.
