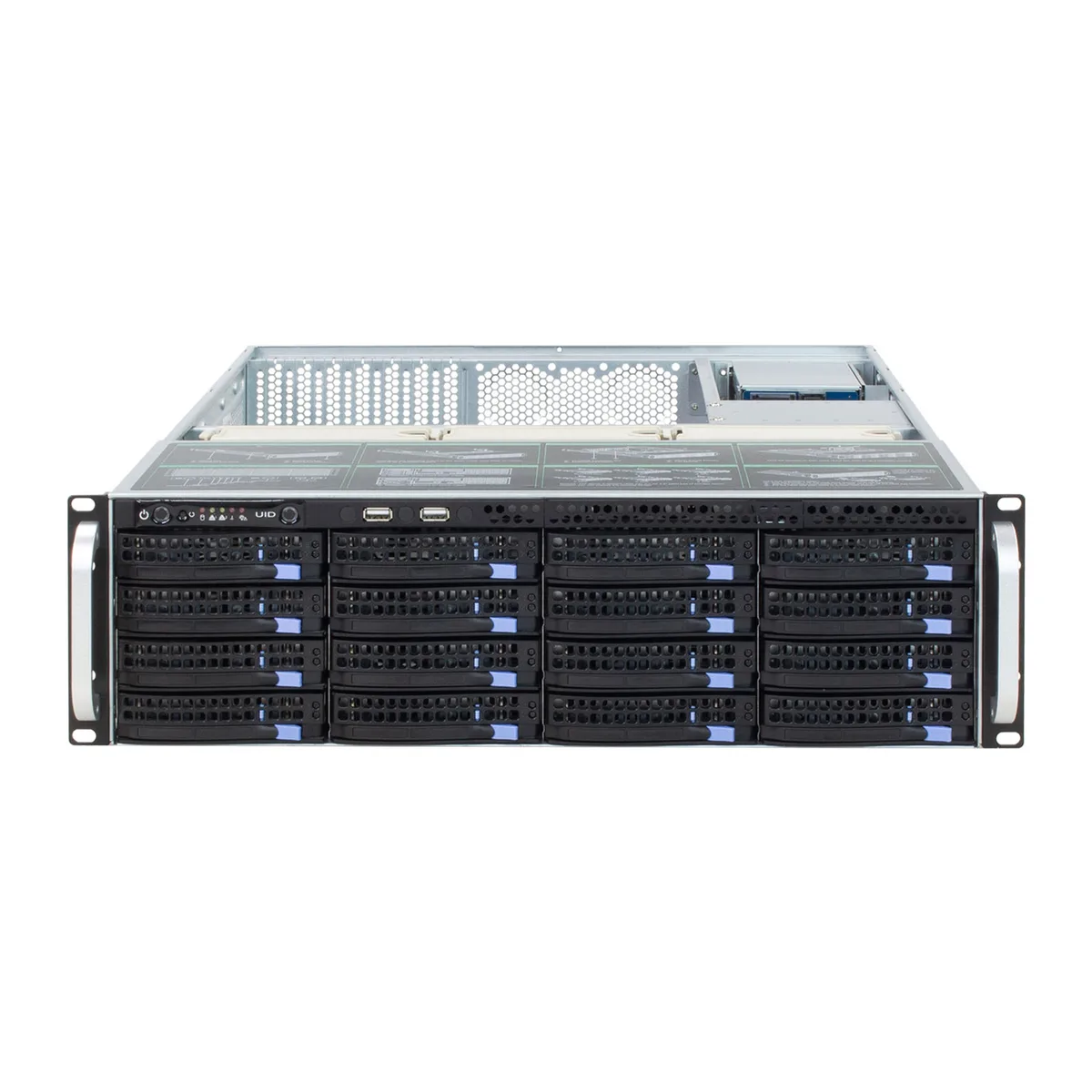

Silver 3U rack chassis with sixteen front drive bays and three fans

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng 3U 16-disk server chassis SFF8087 SGPIO

SKU CH-V92X-3BDCH

A 3U rackmount chassis holding sixteen front 3.5" drives plus three internal 2.5" bays, with a 6Gb/s SAS backplane featuring SGPIO and temperature control

  • Form Factor3U
  • 16 front 3.5-inch bays plus three internal 2.5-inch slots for dense storage
  • 6 Gb/s Mini-SAS SFF-8087 backplane with SGPIO and temperature control
  • Three hot-swappable 12038 ball fans with high airflow option
  • Seven full-height PCIe expansion slots for add-in cards
  • Supports standard 2U and CRPS redundant power supplies up to 300 mm long

High-density 3U server chassis

This 3U rack-mount chassis holds sixteen front-access 3.5-inch drives and three internal 2.5-inch drives in a 650mm deep enclosure. It targets storage-heavy workloads such as cloud storage, big data and security monitoring. Builders needing fewer drive bays or a shorter chassis should look elsewhere.

SFF-8087 backplane with SGPIO

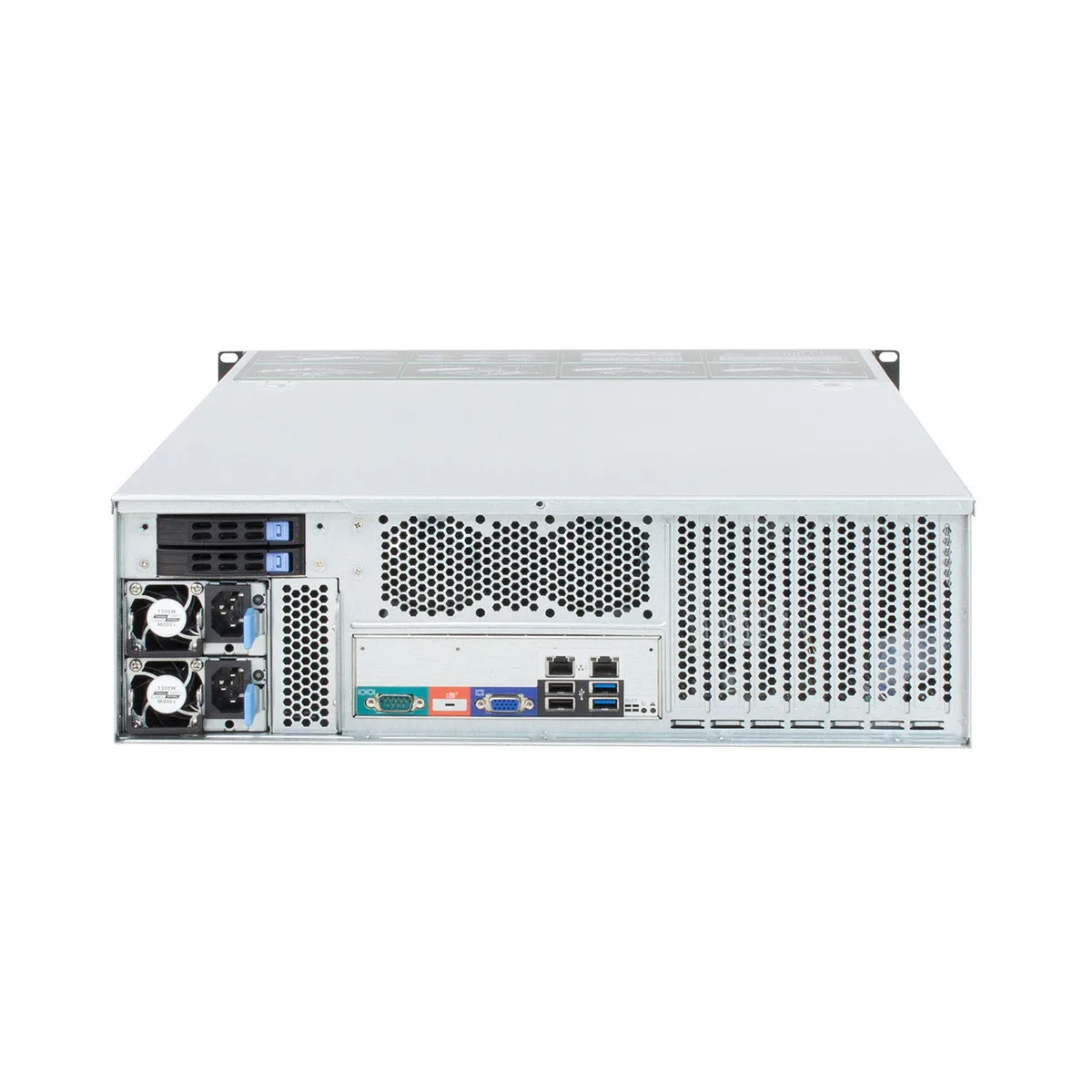

The 6Gb/s Mini-SAS backplane uses SFF-8087 connectors and supports SGPIO signalling for drive status LEDs. Seven full-height PCI/PCIe slots mount vertically at the rear. Power comes from a standard 2U supply or a CRPS redundant unit up to 300mm long. No motherboard, CPU or memory is included.

Three hot-swap 12038 ball fans

Three 12038 ball-bearing fans provide forced airflow and can be replaced without shutting down. The front drive trays use an anti-EMI design with light-guide columns to show drive activity. The 1.0mm SGCC steel body resists fingerprints. Sustained cooling relies on the supplied fan configuration.

Highlights

  • 16 front 3.5-inch bays plus three internal 2.5-inch slots for dense storage
  • 6 Gb/s Mini-SAS SFF-8087 backplane with SGPIO and temperature control
  • Three hot-swappable 12038 ball fans with high airflow option
  • Seven full-height PCIe expansion slots for add-in cards
  • Supports standard 2U and CRPS redundant power supplies up to 300 mm long

Specifications

Form Factor3U

Questions about this item

How many 3.5-inch drive bays does the chassis provide?

The chassis provides 16 front-accessible 3.5-inch hot-swap bays, each compatible with 2.5-inch drives as well.

How many fans are fitted and are they hot-swappable?

Three 12038 ball-bearing fans are installed in 12 cm positions and are fully hot-swappable.

What power supply form factor and length limit does the chassis accept?

It accepts standard 2U power supplies and CRPS redundant units up to 300 mm long.
