White rectangular business projector with front lens and ventilation grilles

Sharp

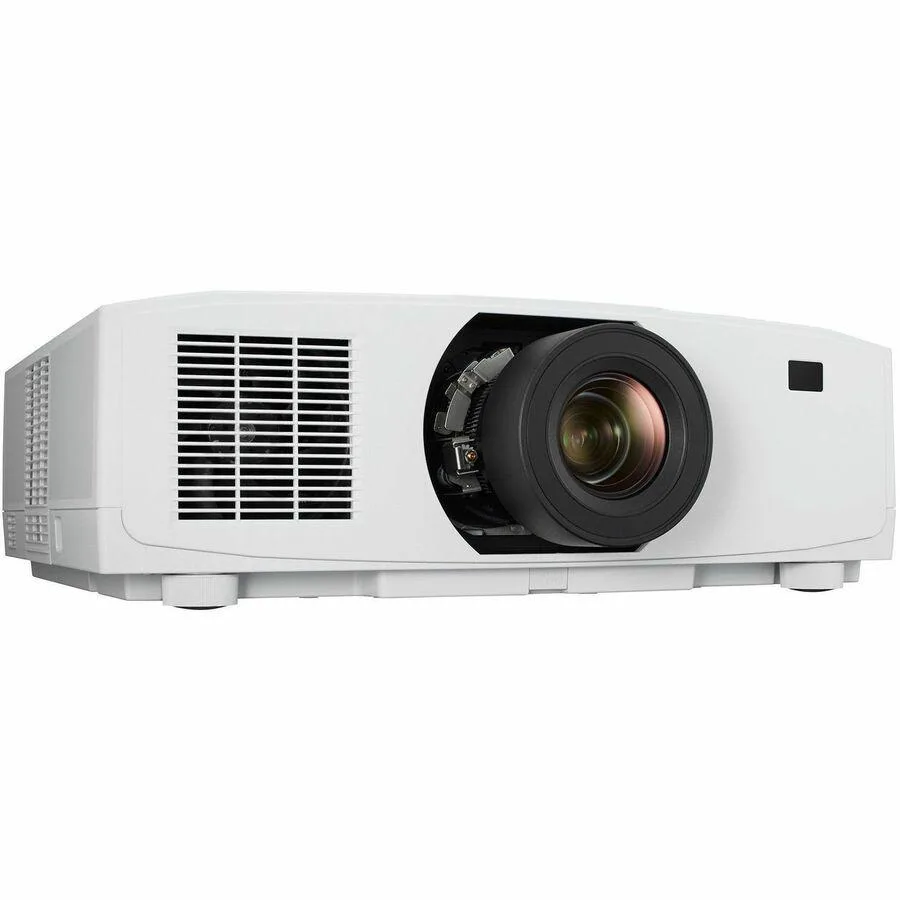

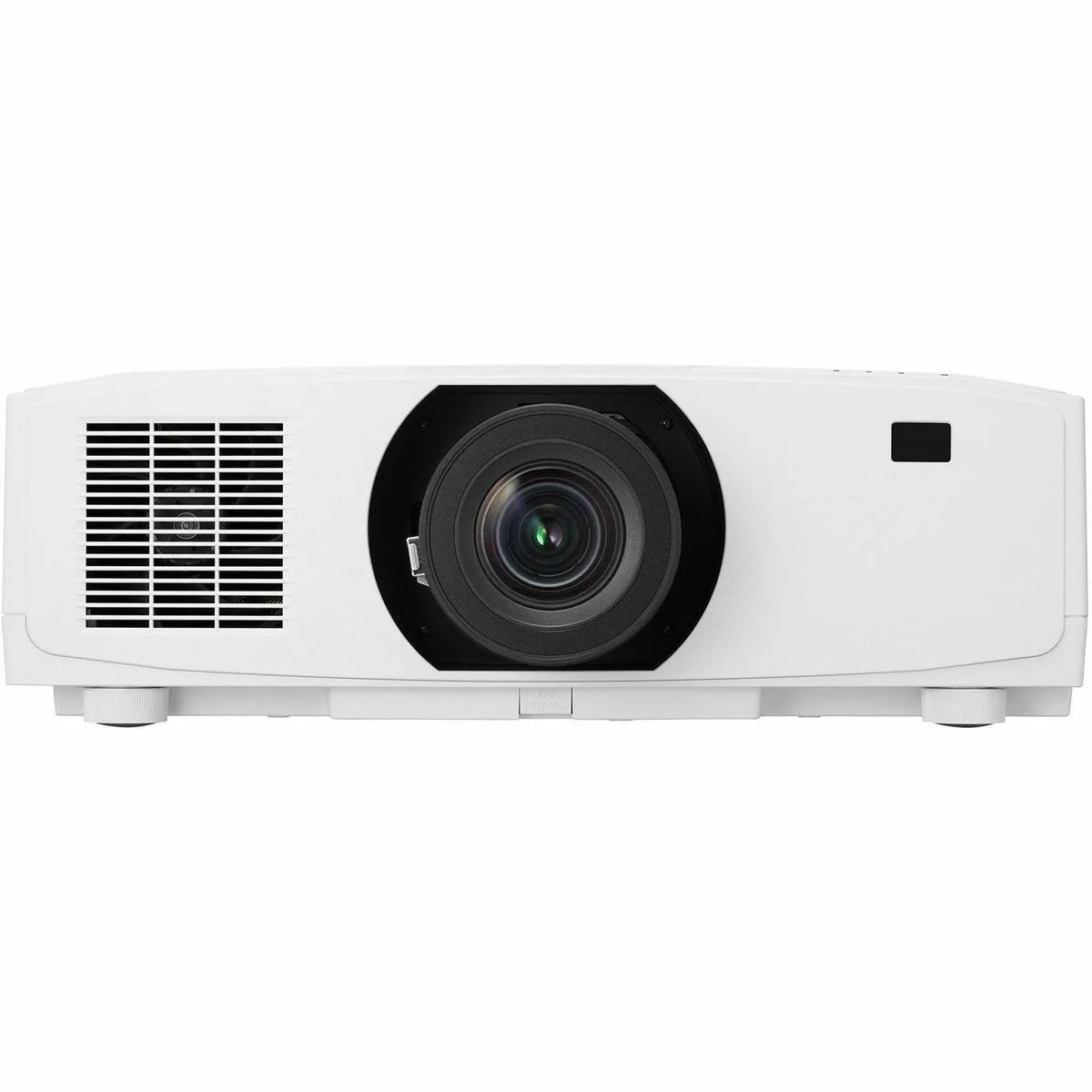

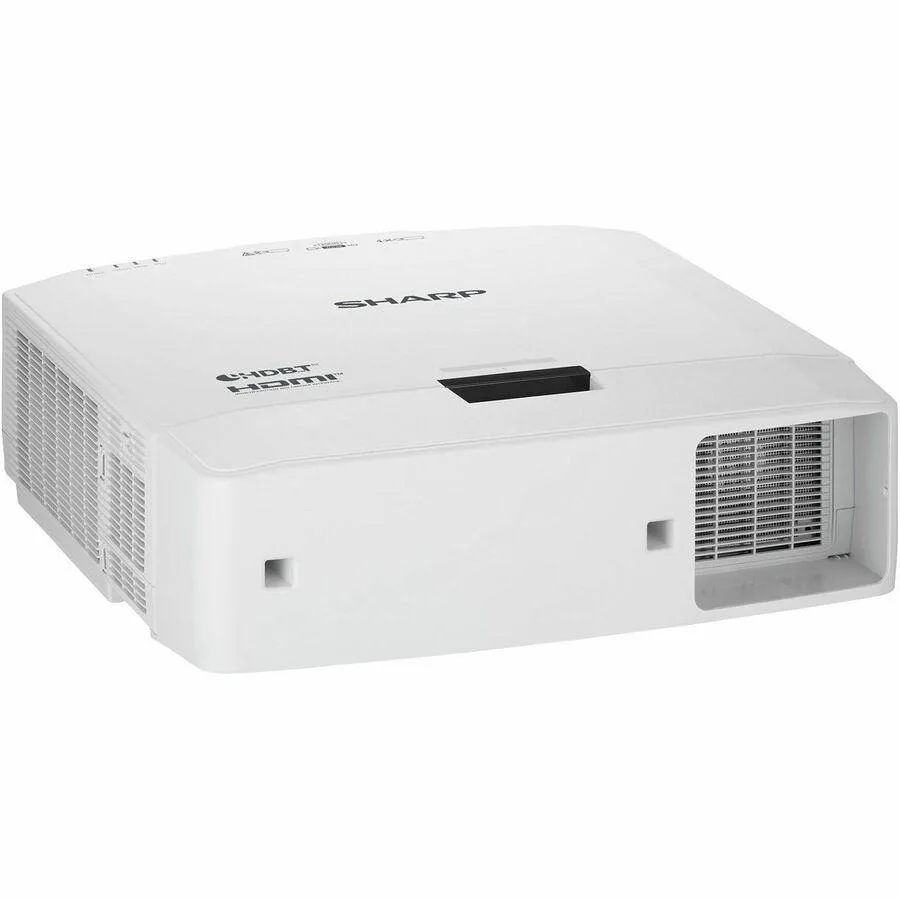

Sharp XP-V801U-W business projector 8000 lm WUXGA 1920x1200 3000000:1

SKU CH-4ZBF-X770G MPN XP-V801U-W

A WUXGA laser projector delivering 8,000 lumens and a 3,000,000:1 dynamic contrast ratio for large-venue installations

  • Cabinet ColorWhite
  • TypeLCD
  • Sports TeamNO
  • Brightness8,000 Lumens (typical), 8,300 Lumens (maximum)
  • Native ResolutionWUXGA 1920x1200
  • Maximum Resolution4096 x 2160
  • 8,000 lumens typical brightness illuminates large venues clearly
  • WUXGA 1920x1200 native resolution renders detailed text and graphics
  • 3,000,000:1 dynamic contrast adds depth to dark scenes
  • Motorised lens shift, zoom and focus simplify precise alignment
  • Dual HDMI and HDBaseT inputs connect multiple sources easily

Professional installation projector

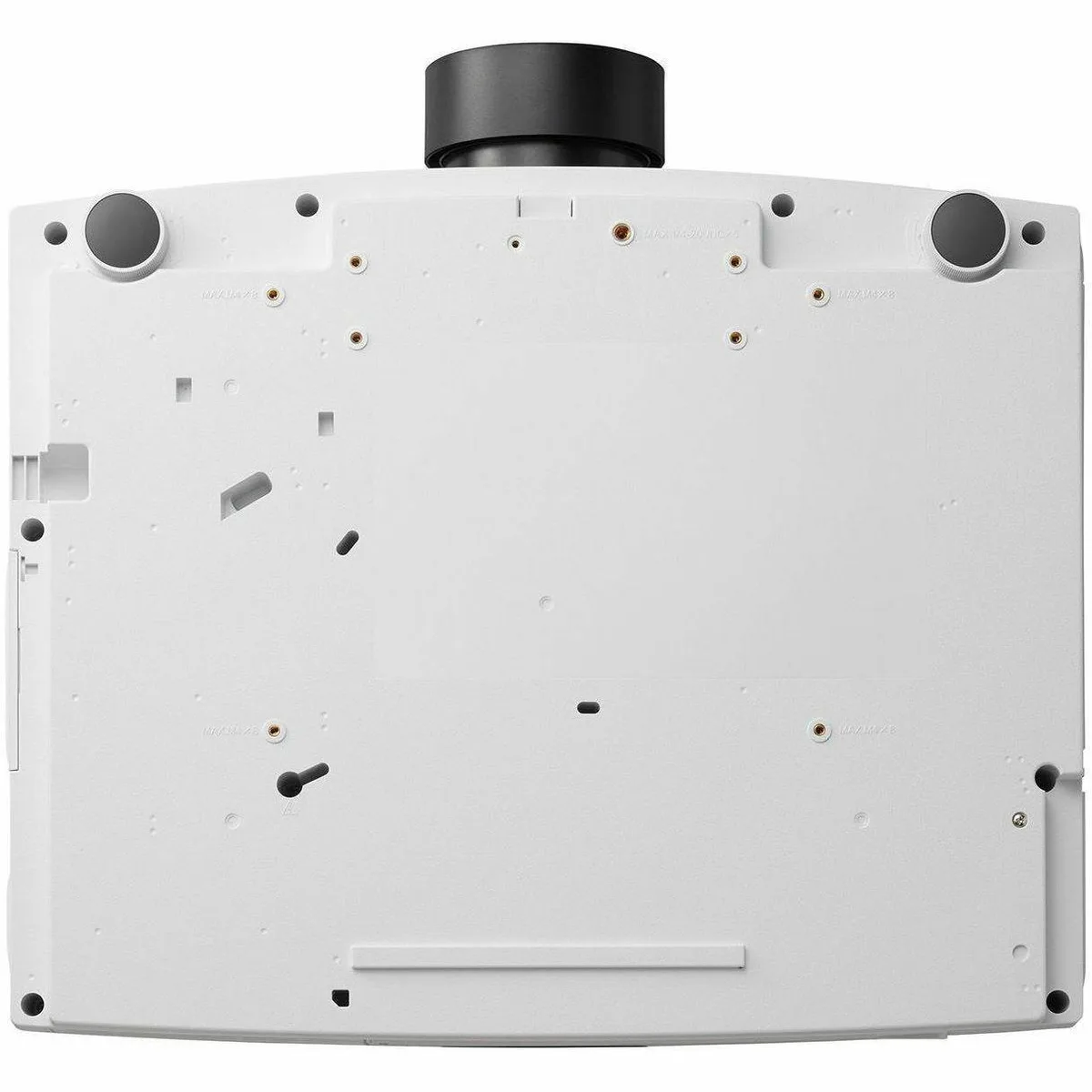

The Sharp XP-V801U-W is an 8,000-lumen laser projector with WUXGA 1920x1200 native resolution and a 3,000,000:1 dynamic contrast ratio. It uses 3LCD technology to produce 1.07 billion colours and supports 4K input up to 4096x2160 at 30 Hz. The unit is ceiling-mountable and offers horizontal refresh rates from 24 to 153 Hz.

Suited for large venues and fixed installs

This model fits higher education, house of worship, corporate and museum environments that need constant brightness, geometric correction and lens-shift flexibility. It accepts HDMI and HDBaseT sources and includes RS-232 and RJ45 for integration. Buyers who require ultra-short-throw projection or built-in wireless presentation should look elsewhere.

Dual HDMI and HDBaseT connectivity

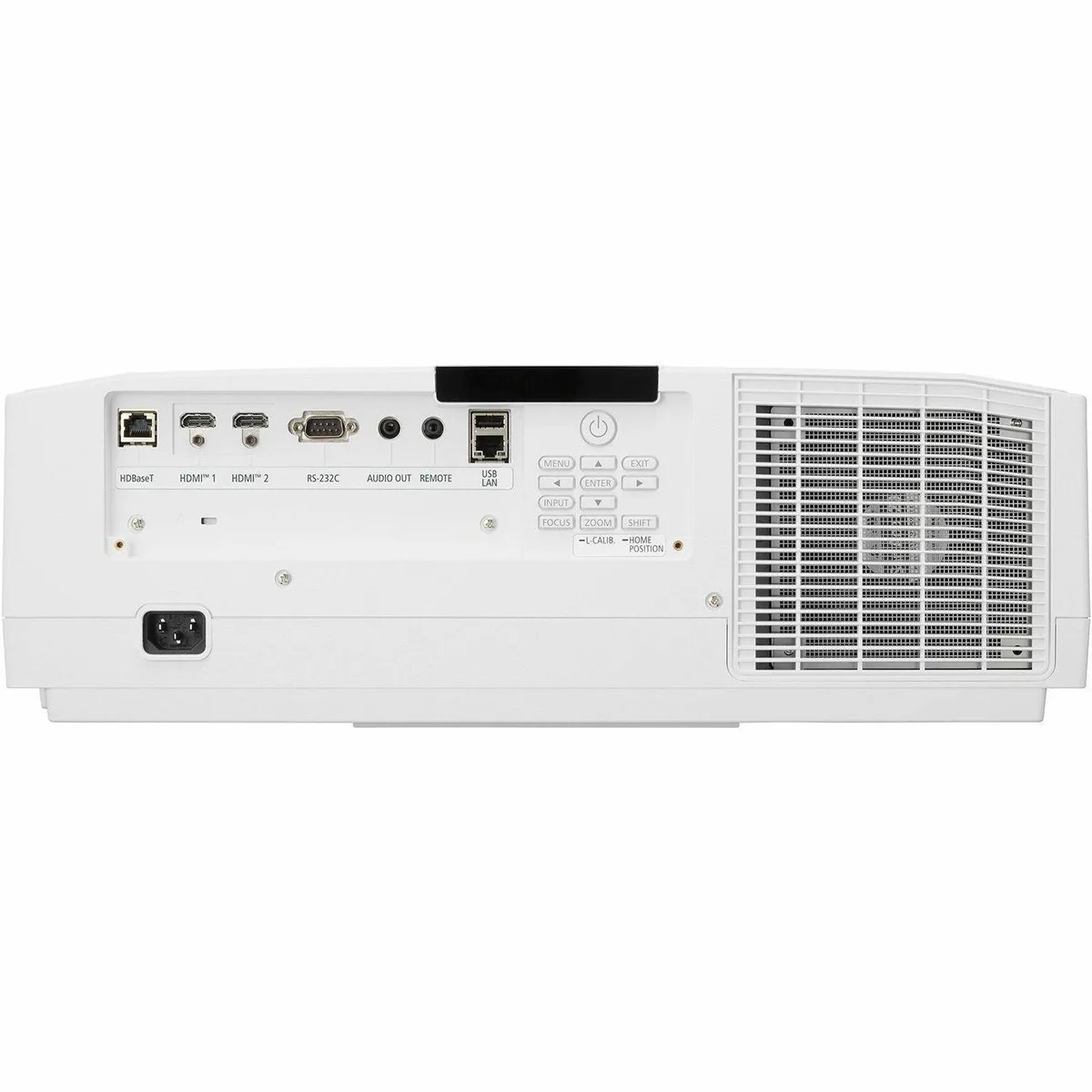

Two HDMI ports with HDCP 1.4 and one HDBaseT input carry both video and audio, while a 3.5 mm stereo output and USB-A 2 A power delivery support external audio and streaming devices. The projector also provides a 3.5 mm wired-remote jack and test-pattern generator for setup.

Highlights

  • 8,000 lumens typical brightness illuminates large venues clearly
  • WUXGA 1920x1200 native resolution renders detailed text and graphics
  • 3,000,000:1 dynamic contrast adds depth to dark scenes
  • Motorised lens shift, zoom and focus simplify precise alignment
  • Dual HDMI and HDBaseT inputs connect multiple sources easily

Specifications

BrandSHARP
SeriesXP-V801U
ModelXP-V801U-W
Part NumberXP-V801U-W
Cabinet ColorWhite
TypeLCD
Sports TeamNO
Brightness8,000 Lumens (typical), 8,300 Lumens (maximum)
Native ResolutionWUXGA 1920x1200
Maximum Resolution4096 x 2160
Aspect Ratio16:10
Contrast Ratio3,000,000:1 (Dynamic)
Display Size50" to 500"
Horizontal Refresh Rate24-153 Hz
Display Colors1.07 Billion Colors
Projection MethodsFloor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Input Video CompatibilitySD/HD Video Signal Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
Input Video ConnectorsHDMI, HDBaseT
Network ConnectorsRJ45
PanelLCD
Power Supply100-240V AC, 50/60 Hz
Power Consumption467W / 420W / 0.6W / 0.17W
Humidity Range20~85% (non-condensation)
Dimensions19.8 x 6.6 x 16.2 in.
Shipping weight14.06 kg
Package size597 × 495 × 262 mm

Questions about this item

What video sources do I need to connect to the two HDMI ports and the HDBaseT input on the XP-V801U-W?

Connect any device that outputs 480i, 480p, 576i, 576p, 720p, 1080i, 1080p or 4K signals up to 4096 x 2160; the two HDMI ports support HDCP 1.4 and the HDBaseT input carries both video and audio over a single cable.

Can I keep using my older 1080p sources and 4:3 content with this WUXGA 1920 x 1200 projector?

Yes, the projector accepts SD and HD signals including 480i, 480p, 576i, 576p, 720p, 1080i and 1080p, and scales them to the native 16:10 panel while preserving aspect ratio through keystone and geometric correction.

How can I verify the laser light source is delivering the rated 8000 lumens and 3000000:1 dynamic contrast after installation?

Run the built-in test picture from the on-screen menu, measure centre-screen illuminance with a calibrated meter in normal mode, and confirm the dynamic contrast ratio engages during dark-scene content; the laser source is rated for 20000 hours in normal mode.
