Sharp

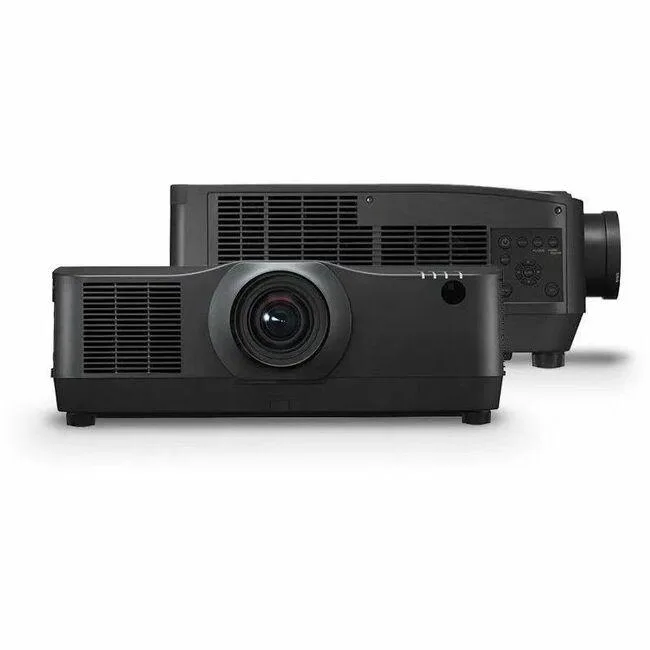

Sharp XP-A824U-B 8200 lumen WUXGA laser business projector
Ultra-short-throw laser projector delivers 8,200-lumen WUXGA images with 4K 60P playback and filter-free IP5X cooling
- Cabinet ColorBlack
- Type0.76" LCD w/ MLA
- Sports TeamNO
- Brightness8,200 Lumens
- Native ResolutionWUXGA 1920 x 1200
- Maximum Resolution4096 x 2160
- 8,200 lumens deliver bright images in lit rooms
- WUXGA 1920 x 1200 native resolution shows sharp detail
- Laser light source rated 20,000 hours removes lamp changes
- HDBaseT in and out passes video, audio, ethernet and control
- IP5X sealed cooling eliminates filter cleaning and reduces noise
Ideal for corporate, education
The Sharp XP-A824U-B is an 8200-lumen WUXGA laser projector built for professional environments. Its IP5X sealed cooling system removes the need for lamp replacements and filter cleaning. Quiet operation suits lecture halls, boardrooms and gallery spaces where reliability matters.
Native WUXGA 1920 x 1200 resolution
The 0.76" LCD panel with MLA delivers 1.07 billion colours and a 3000000:1 dynamic contrast ratio. HDR10 and BT.2020 support enable 4K 60P playback through Sharp's proprietary video processing. Horizontal refresh rates from 15 KHz to 153 KHz cover a wide range of source signals.
HDBaseT in and out plus RJ45 enable daisy-chaining
Preloaded AMX Beacon, Crestron Roomview, Extron XTP and PJ Link protocols integrate directly with existing building management systems. Optional motorised lenses provide powered shift, focus and zoom for flexible placement. ProAssist software simplifies multi-projector setup and ongoing maintenance.
Highlights
- 8,200 lumens deliver bright images in lit rooms
- WUXGA 1920 x 1200 native resolution shows sharp detail
- Laser light source rated 20,000 hours removes lamp changes
- HDBaseT in and out passes video, audio, ethernet and control
- IP5X sealed cooling eliminates filter cleaning and reduces noise
Specifications
| Brand | SHARP |
|---|---|
| Series | XP-A824U Series |
| Model | XP-A824U-B |
| Part Number | XP-A824U-B |
| Cabinet Color | Black |
| Type | 0.76" LCD w/ MLA |
| Sports Team | NO |
| Brightness | 8,200 Lumens |
| Native Resolution | WUXGA 1920 x 1200 |
| Maximum Resolution | 4096 x 2160 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 3,000,000:1 (with Dynamic Contrast) |
| Horizontal Refresh Rate | 15KHz, 24~153KHz |
| Display Colors | 1.07 Billion Colors |
| Projection Methods | Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Input Video Compatibility | Analog RGB, Digital |
| Input Video Connectors | HDMI, HDBaseT |
| Output Video Connectors | HDBaseT |
| Network Connectors | RJ45 |
| Panel | LCD |
| Power Supply | 100-240V AC, 50/60 Hz |
| Power Consumption | 635W / 515W / 0.8W / 0.22W |
| Humidity Range | 20~85% (non-condensation) |
| Dimensions | 23.6 x 8.5 x 19.3 in. / 599 x 216 x 490 mm |
| Shipping weight | 28.71 kg |
| Package size | 739 × 625 × 356 mm |
Questions about this item
How does 8,200 lumens perform in a typical meeting room?
At 8,200 lumens the image stays bright and readable even with lights on, making it suitable for large corporate or lecture spaces without needing a darkened room.
What does the HDBaseT connection actually carry?
The HDBaseT input and output pass uncompressed 4K 60P video, audio, Ethernet and control signals over a single cable, allowing daisy-chaining between projectors.
What mounting options does the chassis support?
The projector is designed for floor front, floor rear, ceiling front and ceiling rear installation, and it accepts optional motorised lenses with powered shift, focus and zoom for flexible placement.
