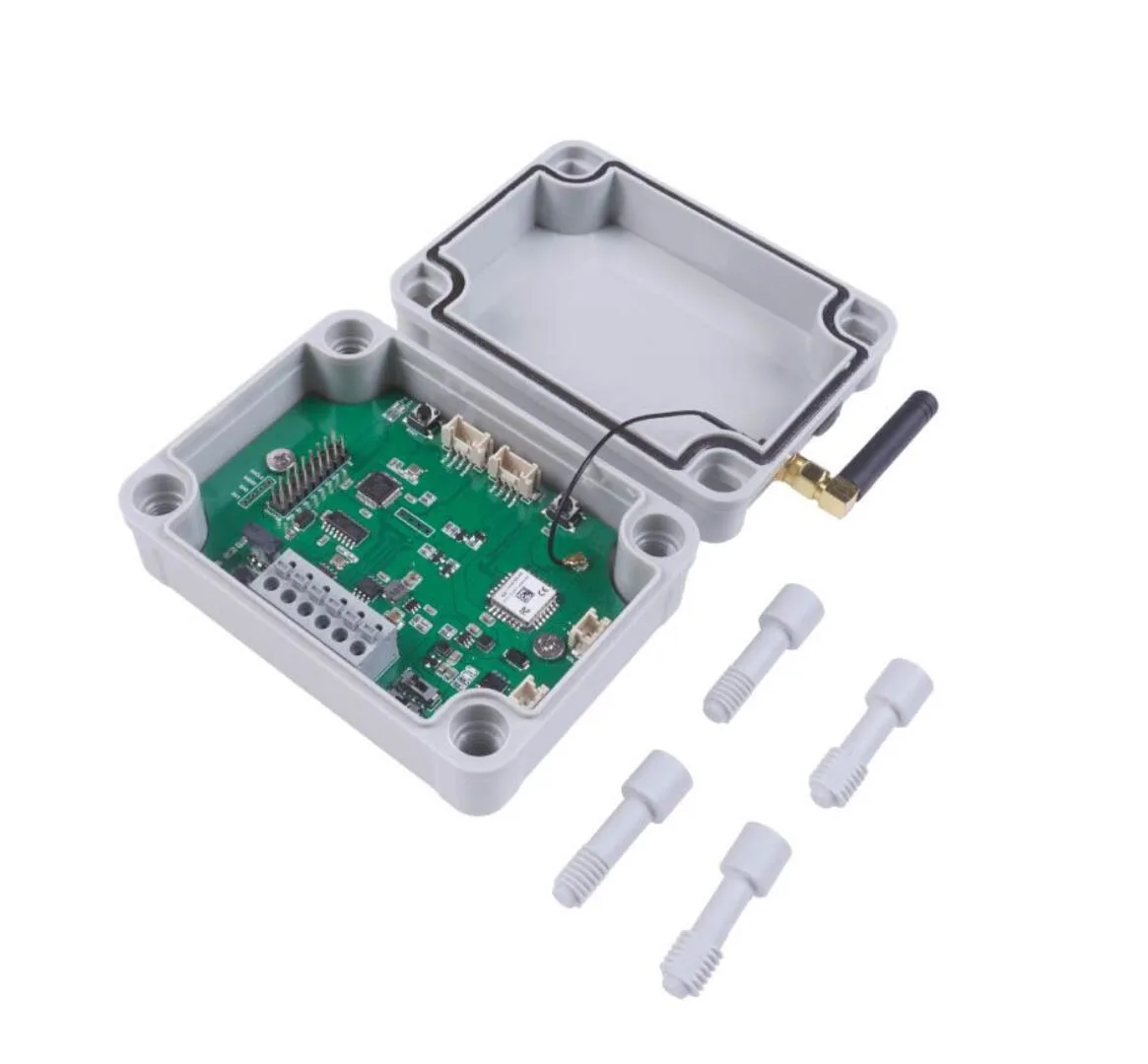

Seeed Studio Wio-E5 CAN FD dev kit in waterproof case with antenna and solar charging interface

Seeed Studio

Seeed Studio Wio-E5 CAN FD dev kit Long Range 10km 28 GPIOs RS485 Grove waterproof solar FCC CE

SKU CH-Y68Z-S7Y26

Long-range LoRaWAN development kit with CAN FD, CAN 2.0, RS-485 and 28 GPIOs in a waterproof solar-ready case for outdoor IoT prototyping

  • TypeSensors
  • Long-range IoT up to 10 km in open areas
  • 28 GPIOs exposed with Grove, RS-485 and headers
  • Industrial temperature range from -40 °C to 85 °C
  • Waterproof case and solar charging for outdoor deployment
  • FCC and CE certified module with ARM Cortex-M4 and SX126X

Long-range LoRa dev kit for outdoor IoT prototyping

This development kit combines a Wio-E5 CAN FD dev board, an antenna for EU868 and US915 bands, and a waterproof case. It is built for engineers and makers who need rapid prototyping of long-range IoT projects with global frequency support. The module integrates an ARM Cortex-M4 core with a Semtech SX126X LoRa chip in a single FCC and CE certified package. It targets applications requiring up to 10 km line-of-sight range in open areas.

Check power, antenna and interface needs before

The kit operates at 3.3 V and includes a solar charging interface for temporary outdoor deployment without external power. Verify that your sensor payloads match the exposed 28 GPIOs and the provided RS-485 terminal, Grove connectors, and male or female pin headers. Confirm the EU868 or US915 frequency plan matches your regional regulations. The board supports CAN FD, CAN 2.0, and RS-485 communication protocols for industrial integration.

Industrial temperature range

The hardware is rated for a wide working temperature from -40 to 85 °C, suitable for harsh outdoor environments. In normal use the radio delivers up to +20.8 dBm output power at 3.3 V with sensitivity between -116.5 dBm and -136 dBm. Power consumption drops to 2.1 uA in WOR sleep mode, enabling long battery or solar-powered operation. The waterproof enclosure protects the electronics during extended field deployment.

Highlights

  • Long-range IoT up to 10 km in open areas
  • 28 GPIOs exposed with Grove, RS-485 and headers
  • Industrial temperature range from -40 °C to 85 °C
  • Waterproof case and solar charging for outdoor deployment
  • FCC and CE certified module with ARM Cortex-M4 and SX126X

Specifications

TypeSensors

Questions about this item

What comes in the box and what do I need to buy separately?

The kit includes the Wio-E5 CAN bus development board, an EU868/US915 antenna, and a waterproof case. External power or solar panel for the charging interface must be sourced separately.

Which frequency plan should I choose for my region?

The supplied antenna covers both EU868 and US915 bands, so the same hardware works worldwide; select the matching frequency plan in your Long Range stack configuration.

What does the 10 km range figure mean in practice?

10 km is the ideal open-area maximum; real-world distance depends on obstacles, antenna height, interference and the chosen spreading factor, so expect less in urban or indoor deployments.
