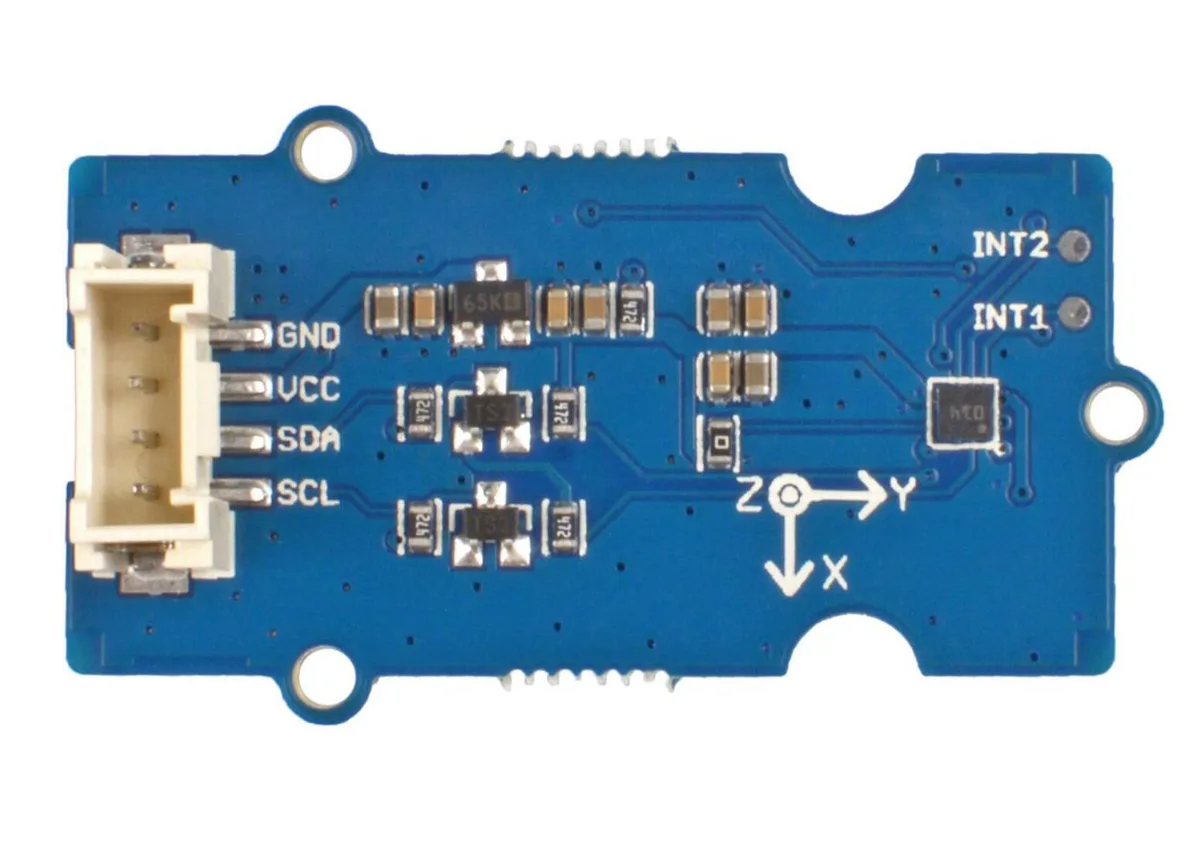

Small rectangular green circuit board with white Grove connector and tiny sensor chip

Seeed Studio

Seeed Studio Grove Step Counter BMA456 40x20mm

SKU CH-RREH-QPERB

A compact triaxial accelerometer module with BMA456 sensor, Grove plug-and-play interface and selectable ±2g to ±16g ranges

  • TypeSensors
  • Triaxial acceleration sensing with Bosch algorithm for accurate step counting
  • Grove unified socket enables plug-and-play integration with 3.3 V or 5 V systems
  • Four selectable ranges from ±2 g to ±16 g with matching sensitivity steps
  • Compact 40 × 20 mm board weighing only 3.2 g for wearable designs
  • I2C interface at address 0x19 or 0x18 for flexible microcontroller connection

Grove Step Counter BMA456

The Seeed Studio Grove Step Counter BMA456 is a compact triaxial accelerometer module designed for wearable devices and activity tracking. It uses a Bosch BMA456 sensor with a specialised algorithm to deliver reliable step counting and motion detection in a 40x20mm footprint.

Check your host voltage and I2C bus

The module operates at 3.3V or 5V and communicates over I2C using the default address 0x19 or the optional 0x18. Verify that your microcontroller supports one of these voltages and that the I2C bus is not already occupied by another device at the same address.

Plug-and-play sensor for space-constrained builds

The Grove unified socket provides a solder-free connection with the included cable, freeing PCB space and simplifying firmware integration. Its low-g range options of ±2g, ±4g, ±8g and ±16g cover gesture recognition, tilt compensation and power-management tasks without additional external components.

Highlights

  • Triaxial acceleration sensing with Bosch algorithm for accurate step counting
  • Grove unified socket enables plug-and-play integration with 3.3 V or 5 V systems
  • Four selectable ranges from ±2 g to ±16 g with matching sensitivity steps
  • Compact 40 × 20 mm board weighing only 3.2 g for wearable designs
  • I2C interface at address 0x19 or 0x18 for flexible microcontroller connection

Specifications

TypeSensors

Questions about this item

Does the box include a Grove cable or must I order one separately?

The package contains one Grove - Step Counter (BMA456) board and one Grove cable, so no extra cable is needed.

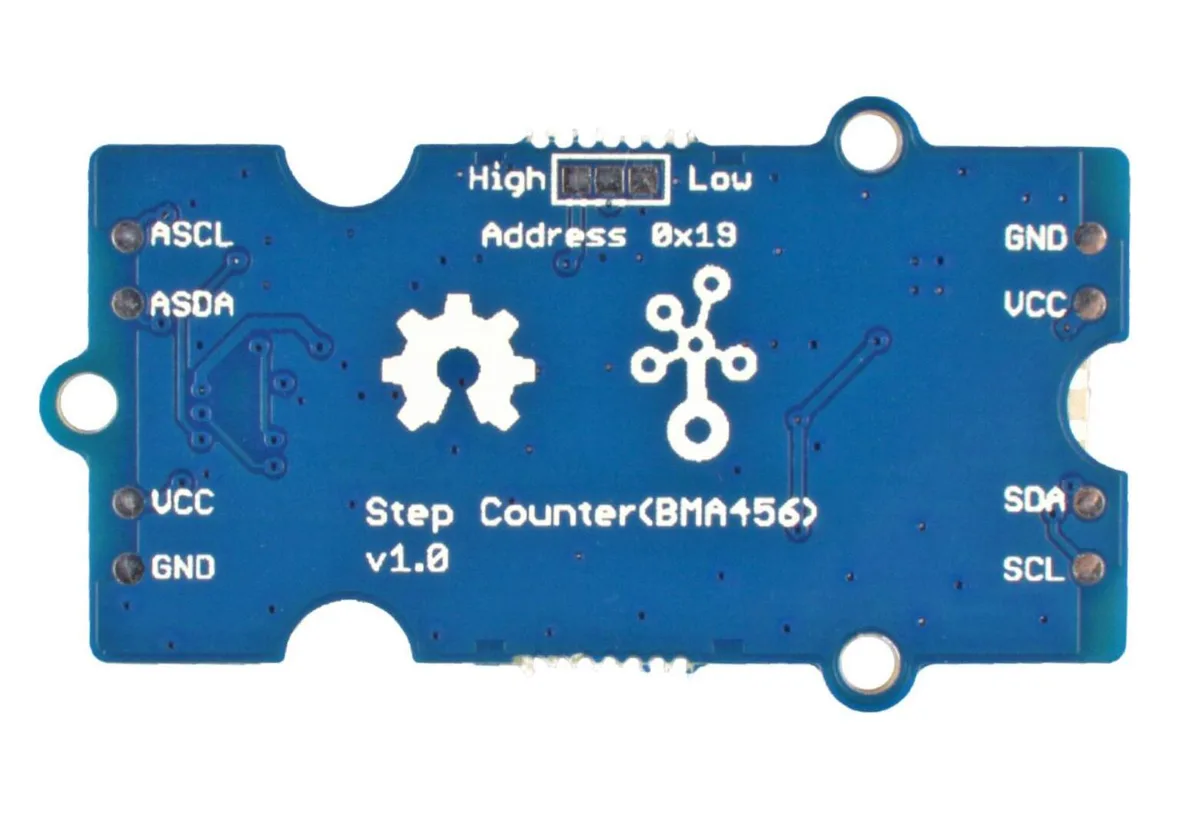

Which I2C address should I use if I have two boards on the same bus?

One board can stay at the default 0x19 address while the second is set to the optional 0x18 address to avoid conflicts.

What does the 16384 sensitivity figure mean for step counting at ±2g?

At the ±2g range the sensor outputs 16384 counts per g, giving fine resolution for detecting individual steps.
