Small green PCB relay module with blue terminal block and white Grove connector

Seeed Studio

Seeed Studio Grove SPDT Relay 30A Normally Closed

SKU CH-QWNK-S8ZHC

A 30 A Grove-compatible SPDT relay switches high-current AC or DC loads from a 5 V coil

  • TypeSensors
  • Switch two circuits with one SPDT relay
  • Handle heavy loads up to 30 A at 250 VAC
  • Low 5 V coil simplifies microcontroller drive
  • Grove connector enables quick plug-and-play wiring
  • Normally closed contact provides fail-safe default state

30 A SPDT relay for high-current switching

This single-pole double-throw relay handles up to 30 A at 250 VAC or 30 VDC from a 5 V coil. It is built for makers and engineers who need to switch mains appliances or heavy DC loads such as vehicle lighting and horns from a low-voltage controller.

Grove plug-in wiring with NC default

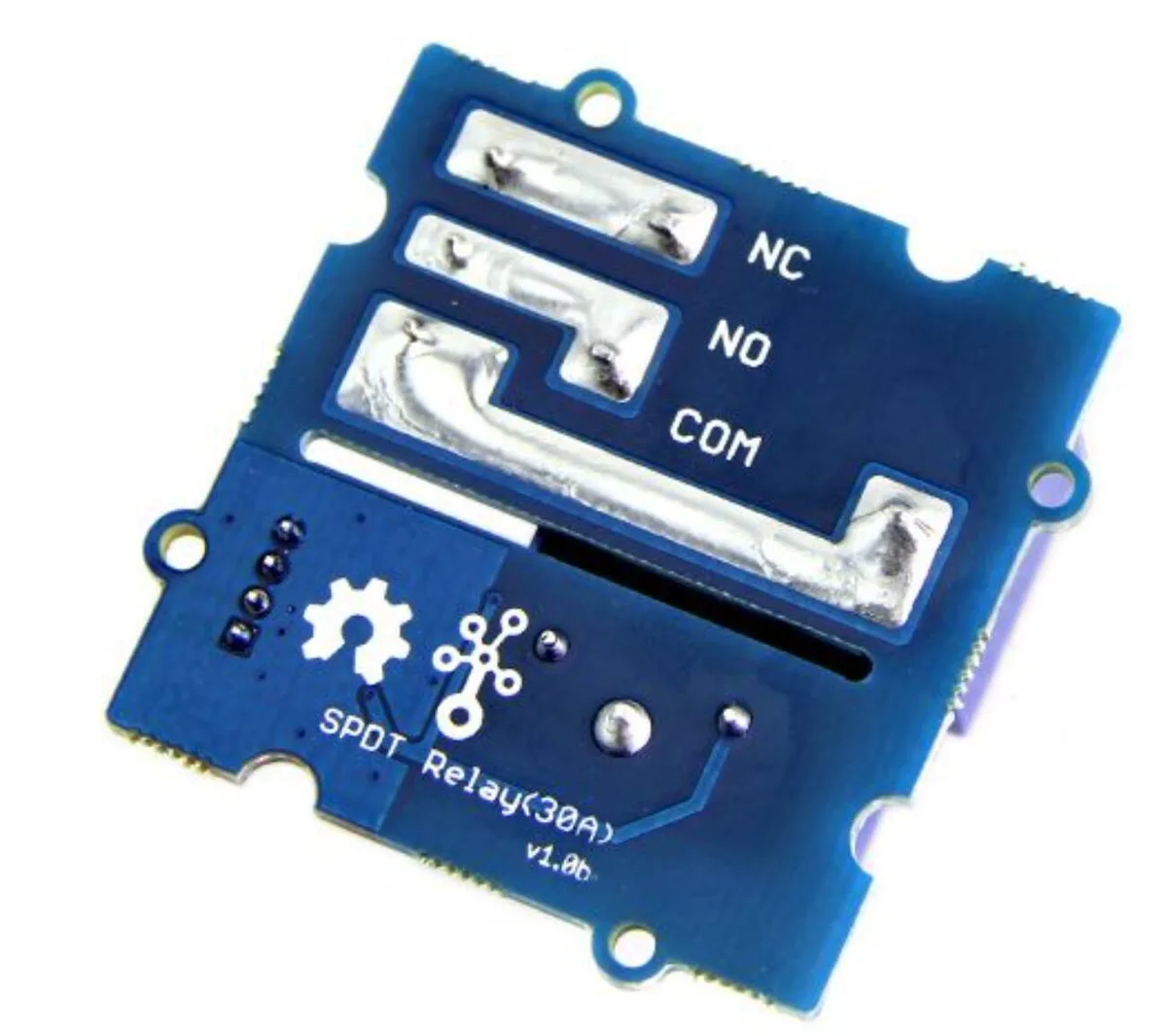

The module uses a Grove-compatible connector so it plugs directly into a Grove base shield without soldering. When the coil is unpowered the common and normally-closed contacts are connected; energising the coil switches continuity to the normally-open contact. Mains-voltage work demands proper insulation, clearance and a qualified electrician.

30 A rating covers large AC and DC loads

At 30 A the contacts comfortably drive heaters, motors or automotive lighting circuits. The 10 A relay previously used in similar Grove modules cannot sustain these heavier loads, so this unit is chosen when the application exceeds that lower threshold.

Highlights

  • Switch two circuits with one SPDT relay
  • Handle heavy loads up to 30 A at 250 VAC
  • Low 5 V coil simplifies microcontroller drive
  • Grove connector enables quick plug-and-play wiring
  • Normally closed contact provides fail-safe default state

Specifications

TypeSensors

Questions about this item

How can I confirm the relay switches correctly after wiring it?

Apply 5 V to the coil and verify continuity moves from the common–NC path to the common–NO path using a multimeter.

What comes in the package and what must I source separately?

The module includes the 30 A SPDT relay on a Grove-compatible board; you need a 5 V control source, a Grove cable, and the load wiring for 250 VAC or 30 VDC circuits.

Which version should I choose for a 30 A load?

This single 30 A normally-closed SPDT model is the only version listed; select it when your load requires up to 30 A switching at 250 VAC or 30 VDC.
