Small rectangular green circuit board with white dome sensor and two blue potentiometers, 40mm by 20mm

Seeed Studio

Seeed Studio Grove PIR Motion Sensor

SKU CH-FHK4-DTW12

A compact Grove-compatible PIR motion sensor detecting movement up to 120 degrees and six metres with adjustable sensitivity and hold time from .3 to 25 seconds

  • TypeSensors
  • Grove interface works with Arduino and Raspberry Pi
  • 120 degree detecting angle covers wide area
  • Adjustable range up to 6 metres and response time 0.3 to 25 seconds

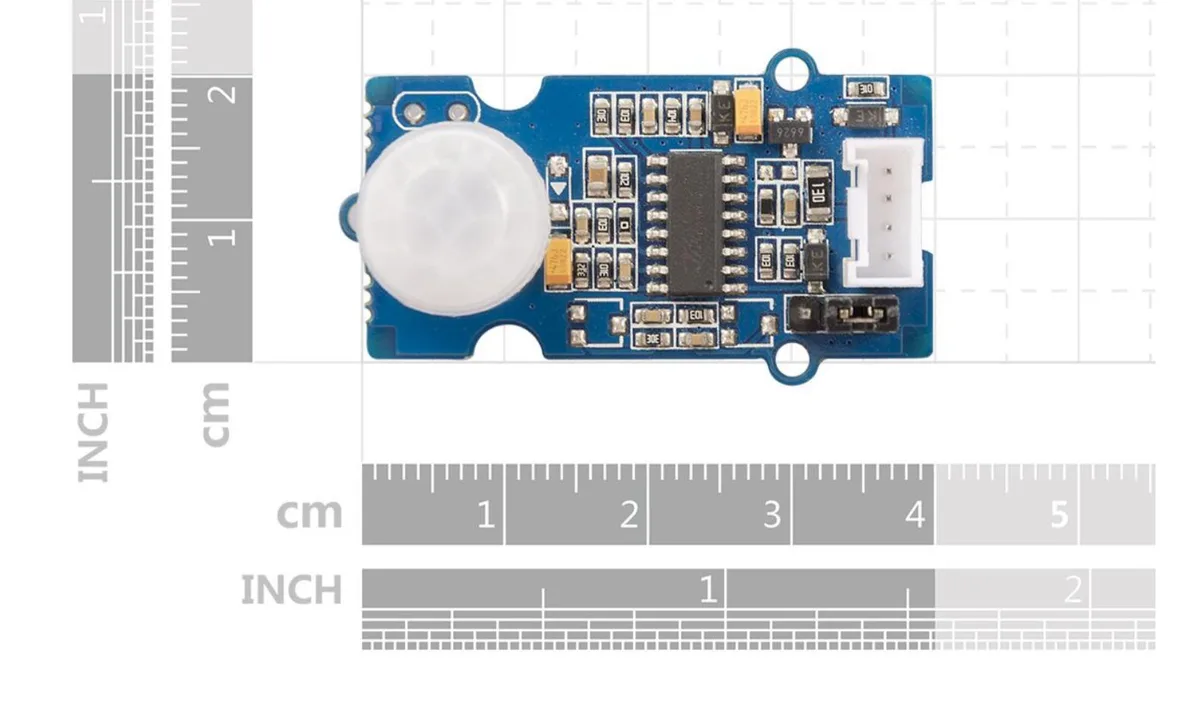

  • Compact 20 by 40 by 15 millimetre module fits tight spaces
  • Low power passive infrared sensor with long operating life

Purpose and audience

The Grove PIR Motion Sensor detects human or particle movement within a defined range using passive infrared technology. It suits hobbyists, students and developers who need a simple motion trigger for Arduino or Raspberry Pi projects.

Setup checklist

Verify that your host board provides a 3V or 5V supply and a Grove-compatible connector for the SIG pin. Allow space for the 40mm by 20mm by 15mm module and confirm the 120-degree detecting angle covers the intended zone.

Fit and alternatives

Builders who need adjustable range up to 6 metres and response times between .3 s and 25 s will find this sensor convenient. Users requiring longer detection distances, narrower fields of view or integrated potentiometers should consider other modules.

Highlights

  • Grove interface works with Arduino and Raspberry Pi
  • 120 degree detecting angle covers wide area
  • Adjustable range up to 6 metres and response time 0.3 to 25 seconds
  • Compact 20 by 40 by 15 millimetre module fits tight spaces
  • Low power passive infrared sensor with long operating life

Specifications

TypeSensors

Questions about this item

What comes in the box and do I need to buy potentiometers separately?

The box contains one Grove PIR Motion Sensor module; the two adjustment potentiometers are soldered on the board so nothing extra is required.

Should I choose the 3 metre default range or the 6 metre maximum range for my project?

The sensor detects up to 6 metres after you turn the distance potentiometer; it ships set to roughly 3 metres.

What does the 120 degree detecting angle mean when the sensor is mounted on a wall?

It covers a 120 degree cone in front of the module, so motion anywhere inside that wedge up to the set distance triggers a HIGH signal.
