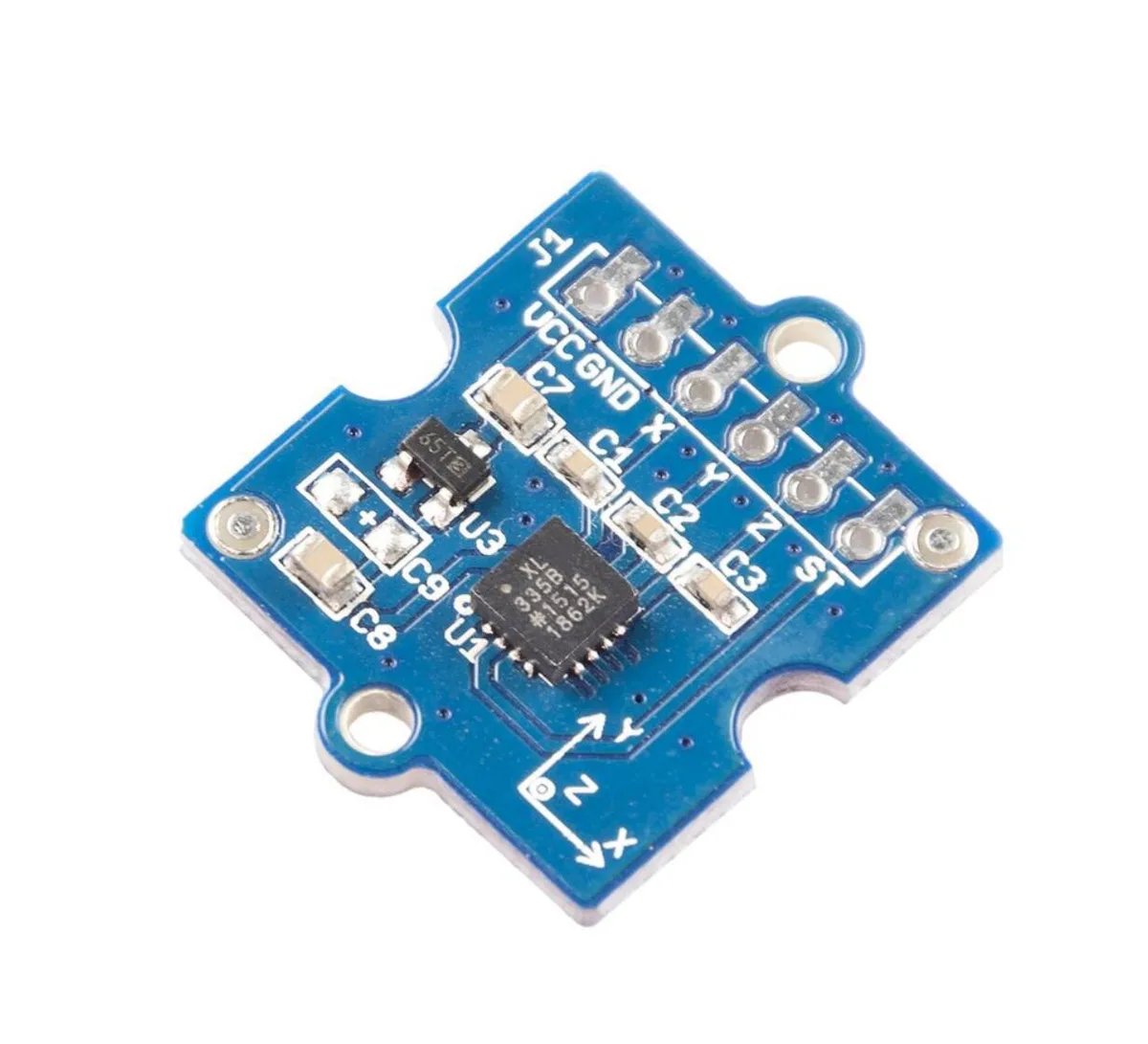

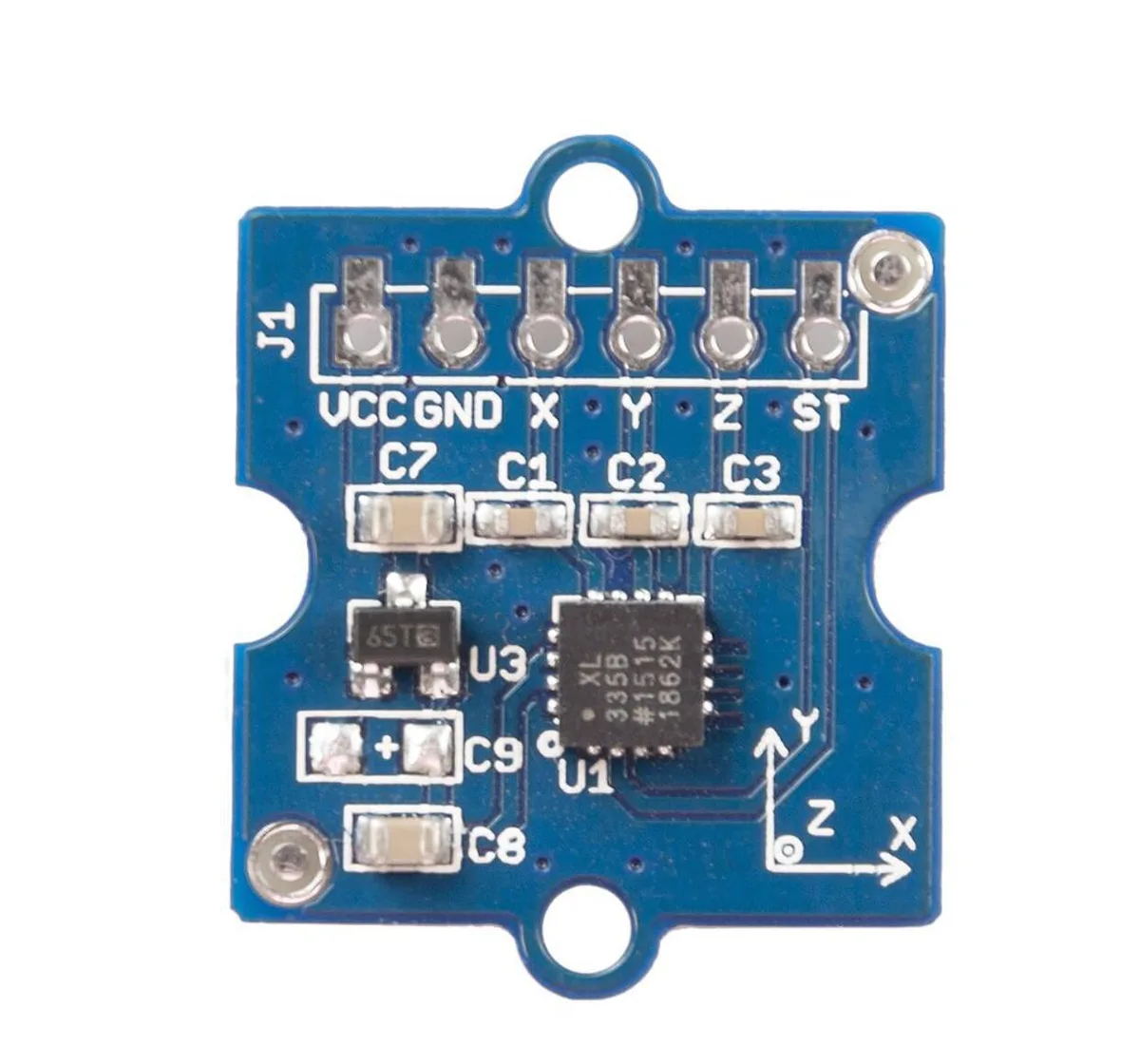

Small green circuit board with Grove connector and ADXL335 sensor chip

Seeed Studio

Seeed Studio Grove ADXL335 3-Axis Analog Accelerometer ±3g

SKU CH-Y8GE-FNKPR

A compact three-axis analog accelerometer measuring ±3 g with a Grove connector for direct microcontroller use

  • TypeSensors
  • 3-axis analog sensing for tilt and motion detection
  • ±3 g full-scale range captures gravity and dynamic acceleration
  • Grove connector enables plug-and-play use with Arduino boards
  • Low power draw of 150 µA typical at 3 V
  • Compact 4×4×1.45 mm LFCSP package saves board space

Small low-power accelerometer for tilt

The Grove ADXL335 module provides three-axis analog acceleration data with a ±3 g range. It operates from 3 V to 5 V and draws only 150 µA typical in measurement mode. The board uses a 4×4×1.45 mm LFCSP package and includes a Grove connector for direct plug-in use with compatible microcontroller boards. It suits robotics, vibration monitoring and tilt detection projects.

Thermals noise and power in normal use

The sensor consumes 150 µA at 3 V during active measurement and 350 µA typical at the same voltage. Analog voltage outputs produce no switching noise, and the tiny 4×4 mm package generates negligible heat. No fan or heatsink is required and the module is silent in operation.

±3 g full-scale range decides suitability

The ADXL335 measures acceleration up to ±3 g, covering gravity-based tilt and moderate shock or vibration. Applications needing higher g-range, digital output or lower noise density will require a different sensor. The Grove connector and 3 V–5 V supply simplify integration for the supported range.

Highlights

  • 3-axis analog sensing for tilt and motion detection
  • ±3 g full-scale range captures gravity and dynamic acceleration
  • Grove connector enables plug-and-play use with Arduino boards
  • Low power draw of 150 µA typical at 3 V
  • Compact 4×4×1.45 mm LFCSP package saves board space

Specifications

TypeSensors

Questions about this item

How do I install the Grove ADXL335 accelerometer and what step is often missed?

Connect the Grove cable to the onboard connector and an Arduino Grove shield; the step often missed is powering the module within the 3 V to 5 V range before reading the analog X, Y and Z outputs.

What maintenance or replacement will the ADXL335 accelerometer need later?

The solid-state MEMS sensor has no moving parts and no user-serviceable components; if the board is physically damaged or the Grove connector fails, replace the entire module.

What limit appears first when the ADXL335 accelerometer runs under sustained use?

The ±3 g measurement range is the first limit; accelerations beyond three times gravity will saturate the analog outputs regardless of how long the module is powered.
