SECURITRON mortise keyswitch door switch metal finish

SECURITRON MAGNALOCK CORPORATION

SECURITRON MAGNALOCK CORPORATION Mortise Keyswitch Door Switch Metal

SKU CH-TNWJ-J7Z7Q

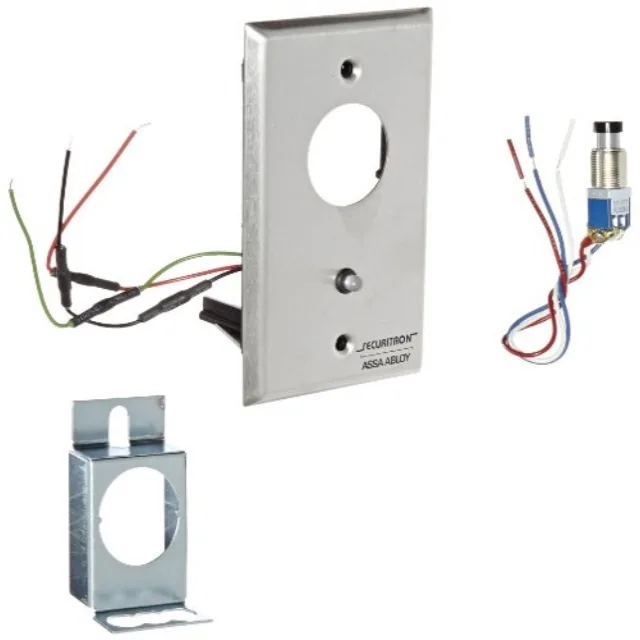

A mortise keyswitch with an included 5 amp SPDT plunger switch for door access control

  • TypeDoor Hardware & Components
  • Mortise mount fits standard door prep
  • Silver metal finish resists corrosion
  • 5 A SPDT switch handles access circuits
  • 4-1/2 in. length suits narrow stiles
  • 2-3/4 in. width matches common mortise pockets

Mortise Keyswitch for Access Control

This SECURITRON mortise keyswitch provides a metal door switch for access control systems. It suits installers fitting secure entry points in commercial or institutional buildings. The unit mounts within a standard mortise pocket for flush installation. It delivers a physical keyed override for electronic locking hardware.

5 Amp SPDT Plunger Switch Rating

The integrated single-pole double-throw plunger switch carries a 5 amp electrical rating. This specification determines compatibility with the control circuit voltage and current. Installers must verify the load matches this rating before wiring. Exceeding the rated amperage will damage the switch contacts.

Fits Standard Mortise Prep with Silver Finish

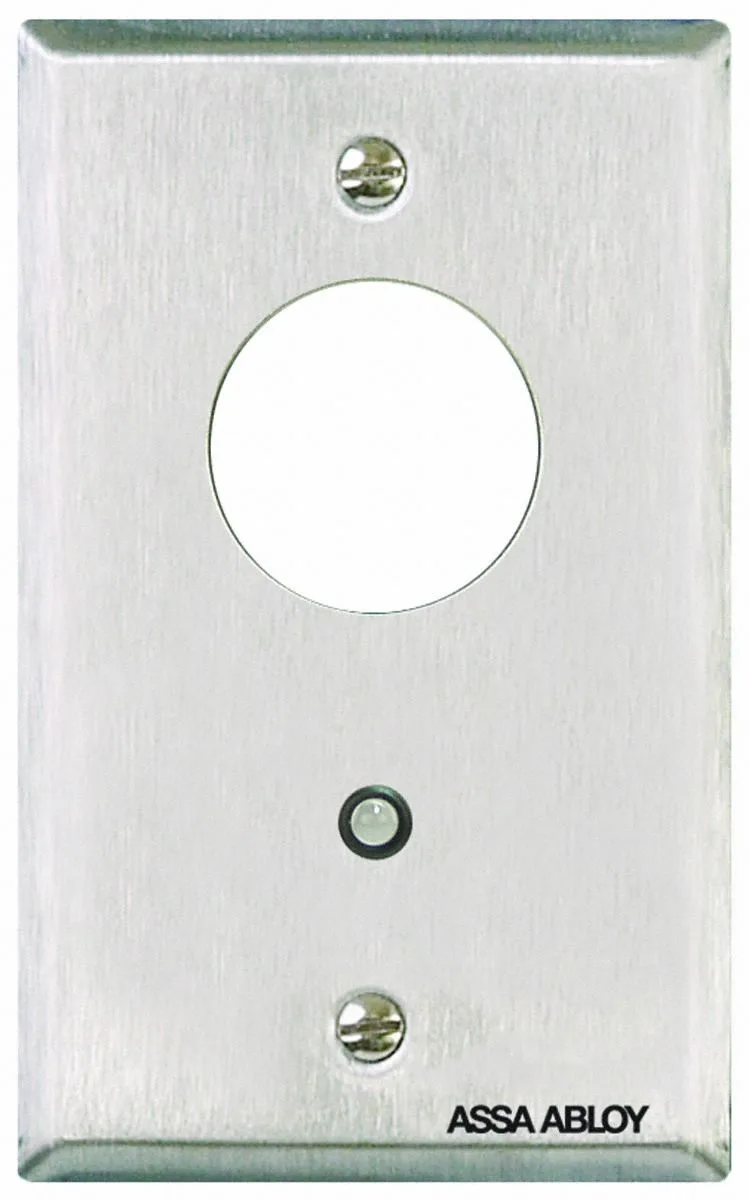

The switch body measures 4-1/2 inches long by 2-3/4 inches wide to fit a standard mortise cutout. Its silver metal finish coordinates with common lock trim hardware. The assembly requires a mortised door edge and a compatible cylinder for keyed operation. It frees the installer from surface-mounted hardware.

Highlights

  • Mortise mount fits standard door prep
  • Silver metal finish resists corrosion
  • 5 A SPDT switch handles access circuits
  • 4-1/2 in. length suits narrow stiles
  • 2-3/4 in. width matches common mortise pockets

Specifications

BrandSECURITRON
TypeDoor Hardware & Components

Questions about this item

How does the 5 Amp SPDT plunger switch perform once installed in a door access system?

The switch carries up to 5 Amps and toggles between normally open and normally closed contacts, letting it control a lock power supply, request-to-exit device or alarm shunt directly without an extra relay.

What wiring standard does the SPDT plunger switch follow and what does that limit?

It uses a standard three-terminal SPDT arrangement — common, normally open and normally closed — so the same switch can either send a signal or break power, but it cannot handle loads above 5 Amps or voltages outside the switch’s rating.

What cut-out size and depth are needed to mortise this keyswitch into a door frame?

The body measures 4-1/2 inches long by 2-3/4 inches wide, so the mortise pocket must accommodate those overall dimensions plus clearance for the plunger travel and the metal mounting tabs.
