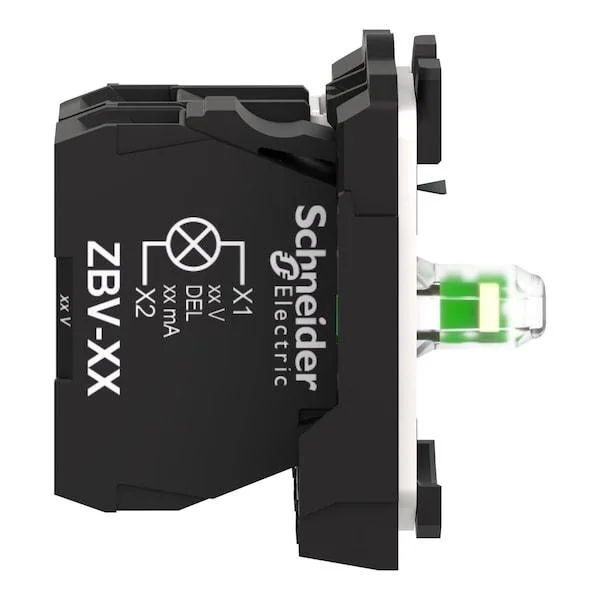

Schneider Electric ZB5AW0B11 white 22 mm lamp module and 1NO contact block

Schneider Electric

Schneider Electric ZB5AW0B11 Lamp Module and Contact Block 1NO White 22mm

SKU CH-CVPT-X943H

Combines a 24 V LED lamp module with a 1 NO contact block rated 10 A at 600 V for 22 mm panels

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • White LED illumination for clear status indication
  • 1 normally open contact rated 10 A at 600 V for reliable switching
  • 22 mm mounting fits standard panel cut-outs
  • Full-voltage 24 V AC/DC module simplifies wiring
  • NEMA 1, 12, 13, 2, 3, 4, 4X and IP20 ratings suit harsh environments

22 mm White LED Lamp Module & 1NO Contact Block

This Schneider Electric ZB5 series unit combines a 24 V AC/DC full-voltage LED indicator with a single normally-open contact rated at 10 A @ 600 V. It mounts in a standard 22 mm cut-out on plastic control panels and carries NEMA 1, 2, 3, 4, 4X and 12, 13 ratings plus IP20 protection.

Low heat, silent operation, minimal draw

The LED lamp generates negligible heat and produces no audible noise, drawing only the small current required for 24 V illumination. The 10 A contact block handles switching duties without adding measurable thermal load, keeping enclosure temperatures stable during normal use.

Fits 22 mm panel cut-outs, frees DIN-rail space

Designed for direct panel mounting, the module eliminates the need for separate pilot lights and contact blocks, saving cut-outs and wiring time. NEMA 4X and IP20 ratings suit indoor and wash-down environments, while UL, CSA, BV, DNV, GL, LROS and RoHS listings simplify compliance. Not suited for applications requiring normally-closed contacts or higher-voltage lamp supplies.

Highlights

  • White LED illumination for clear status indication
  • 1 normally open contact rated 10 A at 600 V for reliable switching
  • 22 mm mounting fits standard panel cut-outs
  • Full-voltage 24 V AC/DC module simplifies wiring
  • NEMA 1, 12, 13, 2, 3, 4, 4X and IP20 ratings suit harsh environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How do I install the ZB5AW0B11 into a 22 mm panel cut-out without damaging the contact block?

Insert the module through the 22 mm hole from the front, then tighten the locking nut on the rear to the specified torque so the IP20 seal seats evenly; over-tightening cracks the plastic bezel and misaligns the 1NO contact.

Which part of the ZB5AW0B11 will need replacement first in a continuously lit panel?

The white LED lamp module is rated for tens of thousands of hours at 24 V AC/DC; when brightness drops below usable level, unclip the lamp module from the contact block and snap in a new ZB5 series LED module.

At what point does the contact block reach its thermal limit during sustained 10 A loading?

The 1NO contact carries 10 A at 600 V AC/DC within NEMA A600/Q600 ratings; sustained operation at full load in an IP20 enclosure will hit the temperature rise limit before the electrical rating is exceeded.
