Schneider Electric ZB5AL7340 22 mm contactor

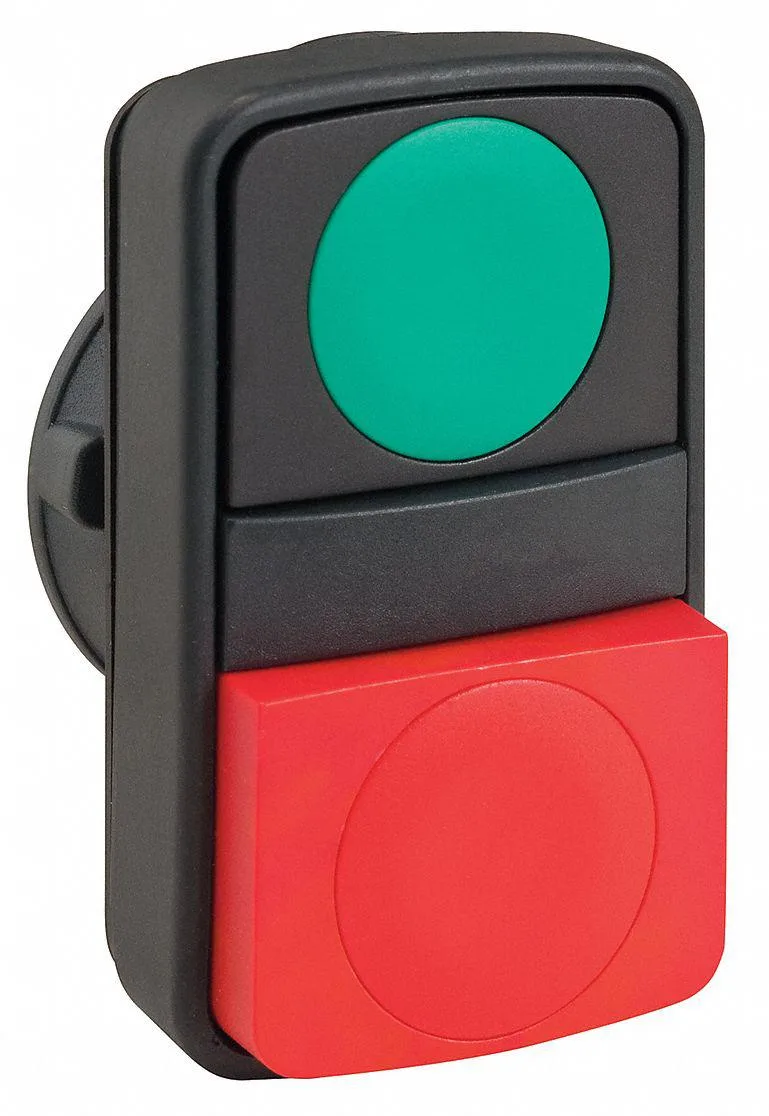

A 22 mm non-illuminated multi-head operator with one extended and one flush button, NEMA 13 and 4X rated, IP 66 and 69K sealed
- Dual-button operator with extended and flush heads for varied control
- Green and red unmarked backgrounds included for clear visual status
- 22 mm panel cut-out fits standard industrial mounting dimensions
- IP66 and IP69K ratings resist dust and high-pressure wash-down
- NEMA 13 and 4X enclosures suit indoor and outdoor industrial use
22 mm Multihead Operator
The Schneider Electric ZB5AL7340 is a non-illuminated control operator designed for 22 mm panel cut-outs. It combines one extended push button and one flush push button in a single rectangular housing. The unit carries green and red background colours for clear function identification. It is built for industrial machinery panels that need compact, colour-coded manual control.
Suits panels needing two momentary actions in one
This operator fits applications where a start and stop or up and down function share a single mounting hole. The momentary action returns each button to its default position when released. It is not suited for maintained or latching operations. Buyers who need illuminated heads, selector switches or key-operated mechanisms should look at a different product.
Simple 22 mm panel mounting with screw terminals
Installation uses the standard 22 mm diameter cut-out and the operator secures with a locking nut on the rear of the panel. Wiring connects to screw terminals on the contact blocks. The IP66 and IP69K ratings demand that the sealing gasket is seated cleanly and the nut is torqued correctly. The most common issue is debris on the gasket surface causing ingress failure.
Highlights
- Dual-button operator with extended and flush heads for varied control
- Green and red unmarked backgrounds included for clear visual status
- 22 mm panel cut-out fits standard industrial mounting dimensions
- IP66 and IP69K ratings resist dust and high-pressure wash-down
- NEMA 13 and 4X enclosures suit indoor and outdoor industrial use
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Does this 22 mm operator need a matching contact block to function?
Yes, the ZB5AL7340 is a non-illuminated multihead operator that requires a compatible ZB5 contact block mounted behind the panel to provide electrical switching.
Can I keep my existing NEMA 13 enclosure when installing this IP66/IP69K rated head?
The operator meets NEMA 13, 4X and IP66/IP69K ratings, so it maintains the same ingress protection level as a standard NEMA 13 enclosure when correctly mounted.
How do I verify the momentary action is working on both the green extended and red flush buttons after wiring?
Press each button; the contacts should change state only while the button is held and return immediately when released, confirming momentary operation on both heads.
