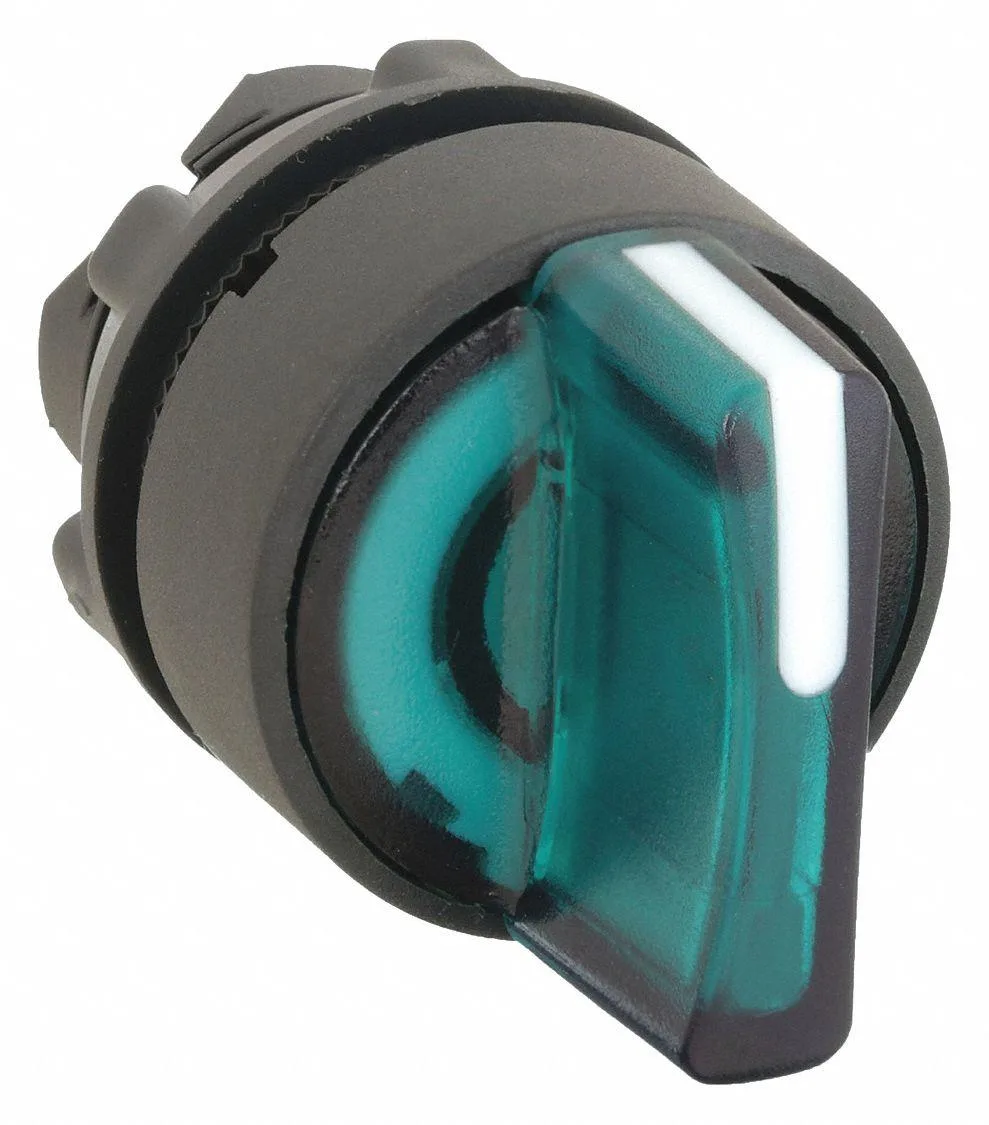

Green illuminated selector switch, short black plastic lever, 22 mm round body

Schneider Electric

Schneider Electric ZB5AK1233 Illuminated Selector Switch 22 mm 2 Position Green

SKU CH-BZTW-6ASYT

Green illuminated selector switch with 22 mm mounting, two maintained positions and IP66, IP67, IP69 and IP69K sealing

  • TypeLight Switch
  • Color MappingGreen
  • Green illumination for clear status indication
  • Two maintained positions for reliable on/off control
  • 22 mm mounting fits standard industrial panels
  • IP66, IP67, IP69 and IP69K sealing resists water and dust ingress
  • NEMA 1, 2, 3, 4, 4X, 13 ratings suit harsh environments

22 mm Illuminated Selector Switch

The Schneider Electric ZB5AK1233 is a 22 mm illuminated selector switch with two maintained positions and a green lever operator. It is built for industrial control panels that need clear visual status indication. The plastic head and black bezel meet NEMA 1, 2, 3, 4, 4X, 13 and IP66, IP67, IP69, IP69K ratings for harsh environments.

Replaces Non-Illuminated or Single-Position Units

This switch upgrades panels that currently use non-illuminated selectors or momentary-action operators where maintained positions are required. The jump is worth it when operators need a green status light visible at the control point and a lever that stays put in each position. It also suits installs that must satisfy CSA C 22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1 and UL 508.

Verify Panel Cutout and Contact Blocks Before

Confirm the enclosure provides a standard 22 mm mounting hole and sufficient depth for the operator body. Ensure you have or will order compatible contact blocks separately, as no cam is included with this operator head. Check that the panel material and thickness suit the plastic bezel and that the environmental ratings match the application's wash-down or outdoor requirements.

Highlights

  • Green illumination for clear status indication
  • Two maintained positions for reliable on/off control
  • 22 mm mounting fits standard industrial panels
  • IP66, IP67, IP69 and IP69K sealing resists water and dust ingress
  • NEMA 1, 2, 3, 4, 4X, 13 ratings suit harsh environments

Specifications

TypeLight Switch
BrandSchneider Electric
Color MappingGreen

Questions about this item

What panel cut-out diameter does the 22 mm selector switch require?

The switch is designed for a 22 mm panel cut-out, matching the standard mounting size for this operator.

How is the operator secured to the panel, and what step is often missed?

The operator mounts through the 22 mm hole and is secured from behind with a locking nut; the anti-rotation notch must align with the panel cut-out to prevent the head from spinning.

Which seal ratings should be checked when the switch is used in wash-down areas?

The head carries IP66, IP67, IP69 and IP69K ratings, so the panel gasket and nut torque must maintain those ingress protection levels during high-pressure cleaning.
