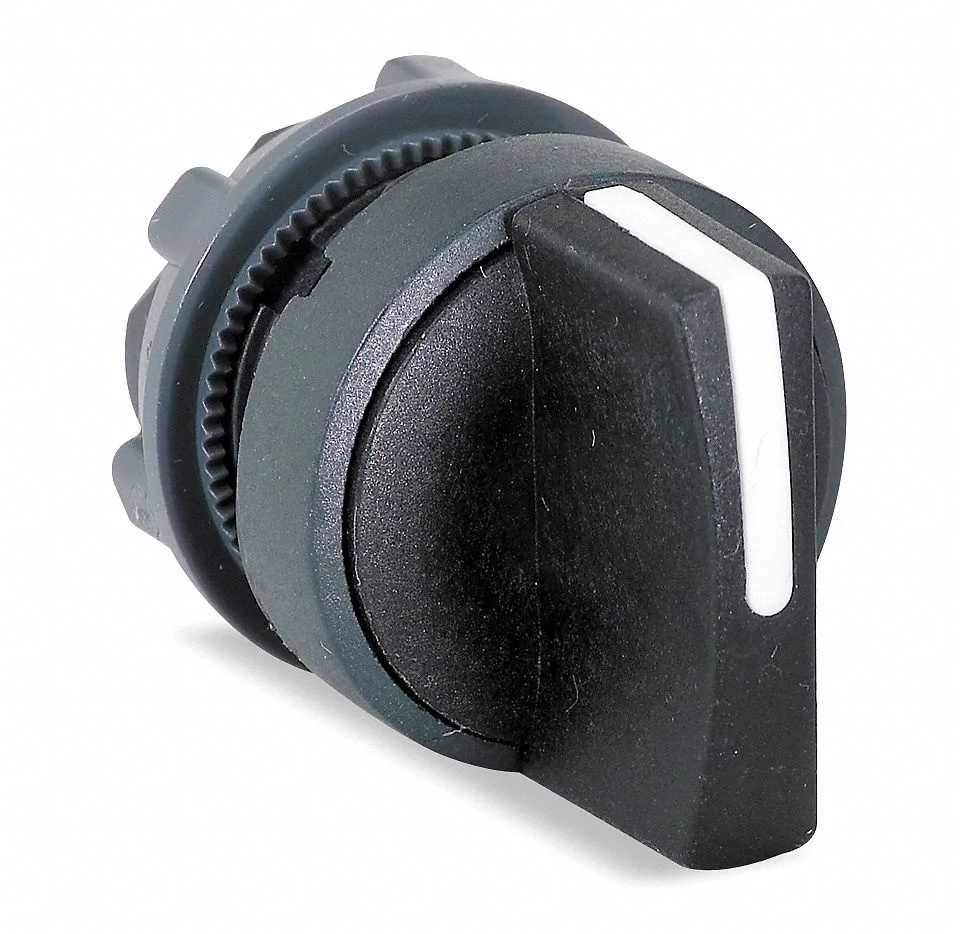

Black short-handle selector switch, 22 mm, three-position, plastic bezel and operator head

Schneider Electric

Schneider Electric ZB5AD7 Short Handle Selector Switch Black 3 Position 22mm

SKU CH-KYW2-0B09N

A 22 mm ZB5AD7 three-position selector switch with momentary and maintained actions, IP67 and IP69K sealing, and NEMA 1, 12, 13, 2, 3, 4, 4X ratings

  • TypeIndustrial Electrical Controls & Automation
  • Color MappingBlack
  • 22 mm mounting fits standard industrial panels
  • Three-position momentary/maintained/maintained action for flexible control
  • Black plastic operator and bezel resist corrosion
  • IP67, IP69 and IP69K ratings withstand high-pressure washdown
  • Certified to UL 508, CSA 22.2 No. 14 and IEC 60947 standards

22 mm Selector Switch for Control Panels

This Schneider Electric ZB5AD7 is a 22 mm short-handle selector switch designed for industrial control panels and automation systems. It provides three distinct positions with a momentary-maintained-maintained action sequence. The black plastic operator head and bezel suit standard panel cut-outs and harsh environments.

Suited for Machine Builders and Maintenance Teams

Operators who need a compact, panel-mounted selector with IP67 and IP69K sealing will find this switch appropriate. It meets NEMA 1, 2, 3, 4, 4X, 12 and 13 ratings for indoor and outdoor use. Buyers requiring a key-operated mechanism or a different contact cam arrangement should look at alternative models.

Fits Standard 22 mm Panel Cut-Outs

The switch mounts directly into a 22 mm opening and complies with EN/IEC 60947-1, 60947-5-1 and 60947-5-4 standards. Its plastic construction resists corrosion while the high IP ratings free the enclosure designer from additional sealing measures. No cam is included, so the required contact block must be sourced separately.

Highlights

  • 22 mm mounting fits standard industrial panels
  • Three-position momentary/maintained/maintained action for flexible control
  • Black plastic operator and bezel resist corrosion
  • IP67, IP69 and IP69K ratings withstand high-pressure washdown
  • Certified to UL 508, CSA 22.2 No. 14 and IEC 60947 standards

Specifications

TypeIndustrial Electrical Controls & Automation
BrandSCHNEIDER ELECTRIC
Color MappingBlack

Questions about this item

What mounting-hole size does the 22 mm selector switch require?

The operator fits a standard 22 mm panel cut-out and uses a plastic bezel that matches the same diameter.

Will the IP67 and IP69K ratings survive the same wash-down cycles as my older NEMA 4X panel components?

Yes, the switch carries NEMA 1, 2, 3, 4, 4X, 12 and 13 ratings alongside IP67, IP69 and IP69K, so it meets or exceeds typical NEMA 4X wash-down requirements.

How can I verify the three-position momentary-maintained-maintained action after wiring?

Rotate the short black lever through each detent; the first position returns automatically while the second and third stay latched until manually moved.
