Schneider Electric 22 mm red selector switch, short lever, chrome bezel

Schneider Electric

Schneider Electric ZB4BK1243 selector switch 22 mm red 2-position

SKU CH-28AK-H41F2

A 22 mm illuminated selector switch with two maintained positions and IP66, IP67, IP69 and IP69K sealing

  • TypeIndustrial Electrical Controls & Automation
  • Color MappingRed
  • Red illumination for clear status indication
  • Two maintained positions for reliable on/off control
  • 22 mm mounting fits standard industrial panels
  • IP66 IP67 IP69 IP69K sealing resists water and dust
  • Meets CSA 22.2 No. 14 UL 508 IEC 60947 standards

22 mm Red Selector Switch

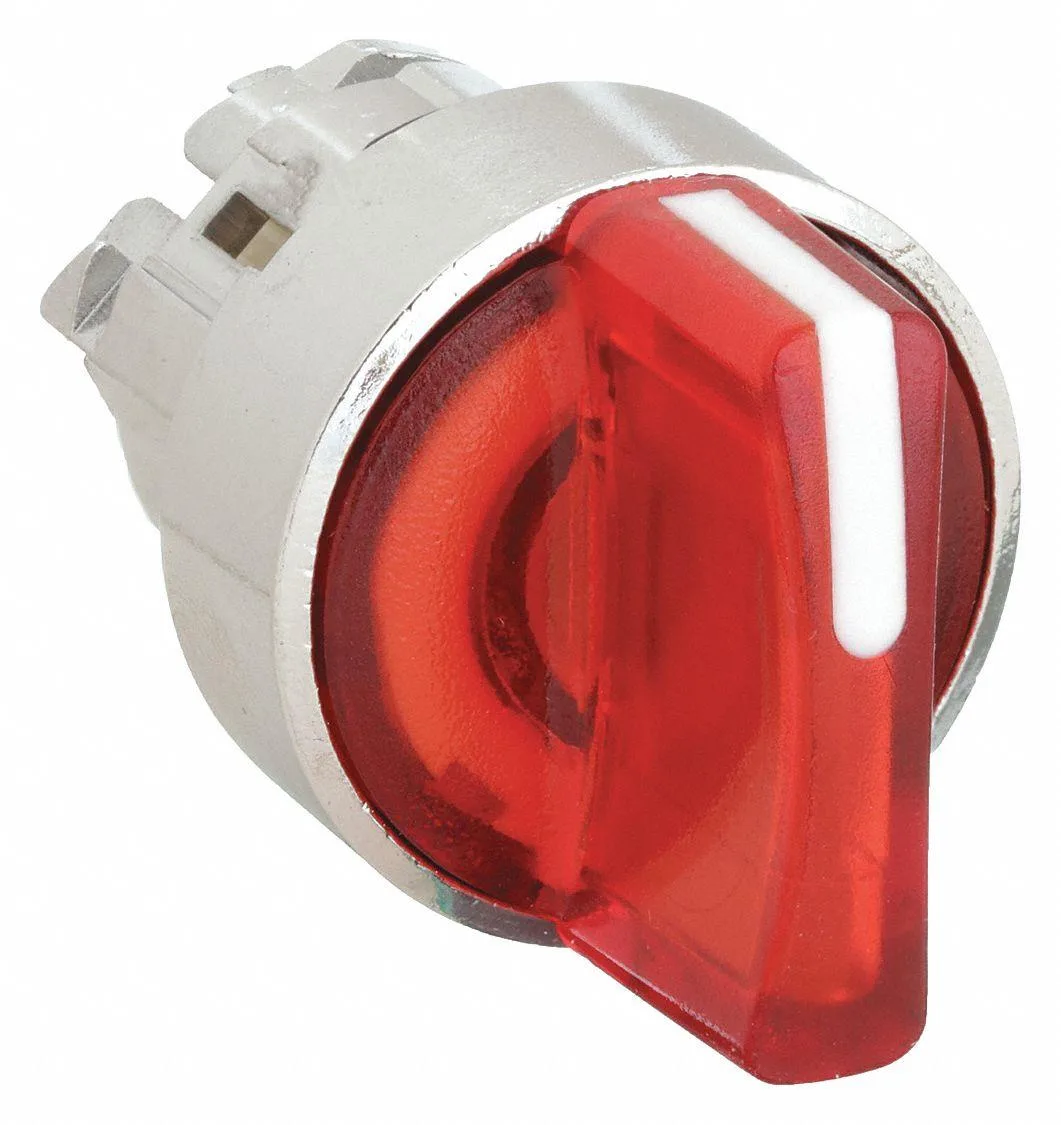

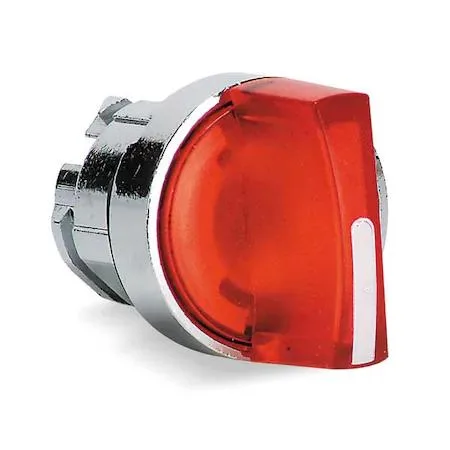

This Schneider Electric ZB4BK1243 is a short-handled industrial selector switch with a 22 mm mounting diameter. It is designed for control panels that require a maintained two-position lever operator in a red plastic head. The chrome-plated metal bezel provides a durable front-of-panel finish.

IP66 IP67 IP69 IP69K Environmental Protection

The operator carries NEMA ratings 1 2 3 4 13 and IP ratings IP66 IP67 IP69 IP69K, indicating resistance to dust ingress and high-pressure water jets during sustained exposure. This sealing performance suits wash-down environments and outdoor installations where the switch face remains subject to continuous spray or temporary immersion.

Standards Compliance Limits

The device conforms to CSA C22.2 No 14 UL 508 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C8201-1 and JIS C8201-5-1. These standards define the electrical endurance and mechanical operation thresholds for the maintained action cam mechanism. No cam is included with the operator head.

Highlights

  • Red illumination for clear status indication
  • Two maintained positions for reliable on/off control
  • 22 mm mounting fits standard industrial panels
  • IP66 IP67 IP69 IP69K sealing resists water and dust
  • Meets CSA 22.2 No. 14 UL 508 IEC 60947 standards

Specifications

TypeIndustrial Electrical Controls & Automation
BrandSCHNEIDER ELECTRIC
Color MappingRed

Questions about this item

Does the 22 mm red selector switch generate noticeable heat or noise when operated continuously in an industrial panel?

The switch is a passive mechanical device with no motor or electronics, so it produces no audible noise and negligible heat during continuous operation.

What mounting hardware or contact blocks must I already have to install this 22 mm selector switch?

You need a standard 22 mm panel cut-out and compatible contact blocks or a complete operator assembly that matches the maintained/maintained cam action.

Will this IP69K-rated red selector switch fit alongside older 22 mm pushbuttons that only carry IP66 ratings?

Yes, the 22 mm mounting diameter is identical, so it installs in the same cut-out; the higher IP69K rating simply adds extra sealing without changing the footprint.
