Schneider Electric ZB4BD7 selector switch 22 mm 3 position black

Industrial Selector Switch

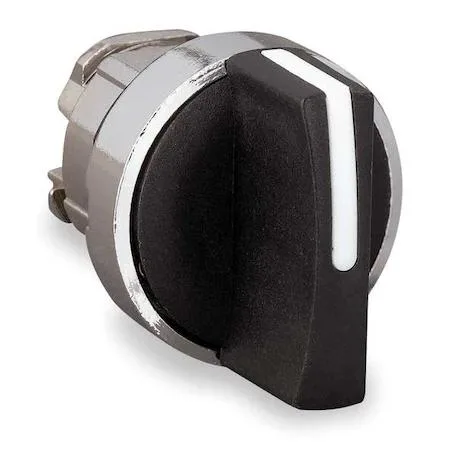

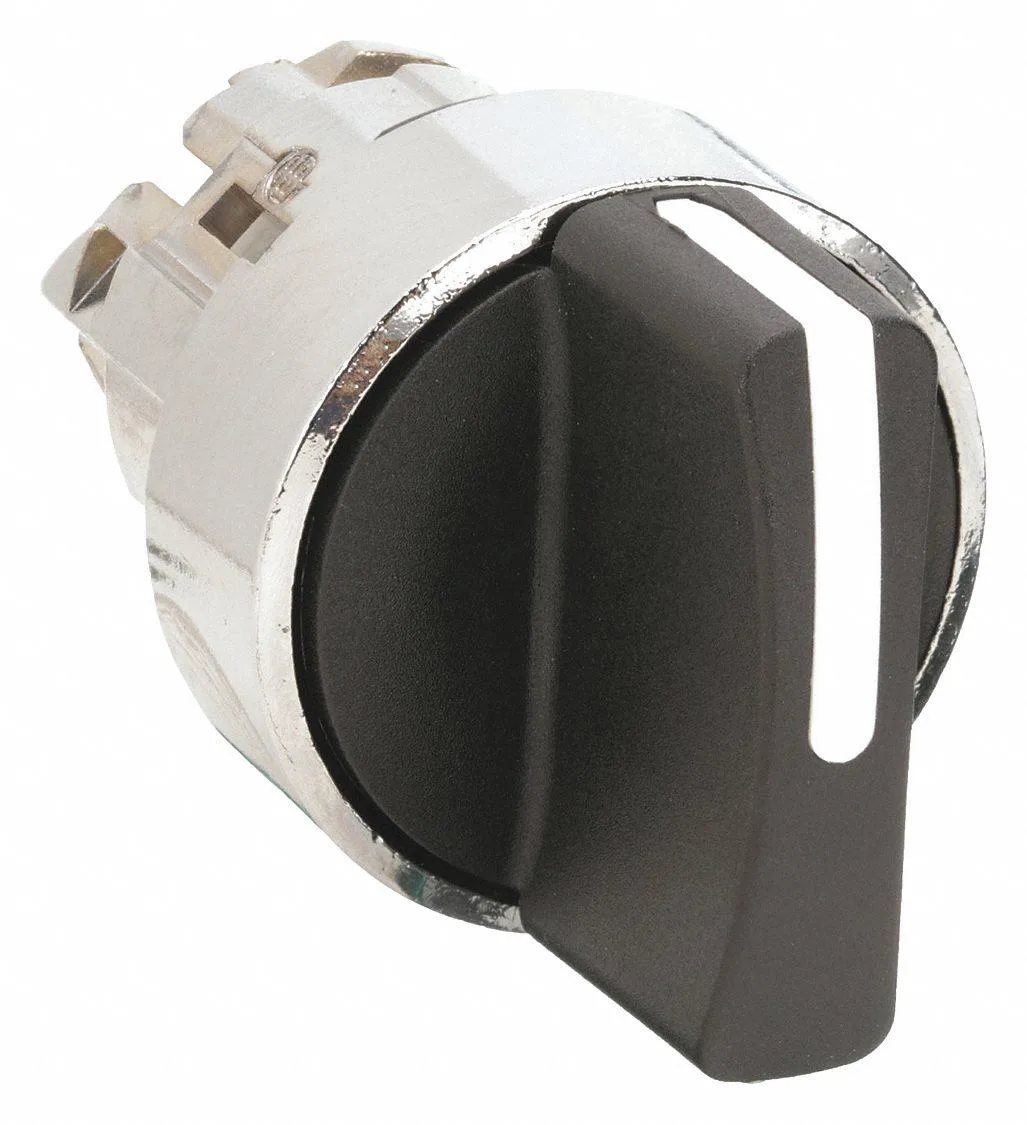

The Schneider Electric ZB4BD7 is a 22 mm short-handled selector switch designed for industrial control panels and automation systems. It provides three-position operation with momentary, maintained, and maintained action sequences. The black plastic operator head and chrome-plated metal bezel suit standard 22 mm panel cut-outs. This component is intended for engineers and electricians building or maintaining machinery interfaces.

Panel Integration Requirements

The switch mounts into a 22 mm opening and carries NEMA 1, 2, 3, 4, 4X, 12, 13 ratings alongside IP67, IP69, and IP69K protection. These ratings confirm suitability for wash-down, dusty, and outdoor environments without additional sealing. The chrome bezel resists corrosion while the plastic operator head reduces weight. No cam is included, so the contact block arrangement must be sourced separately to complete the switching function.

Standards and Compliance Benefits

The device conforms to CSA C22.2 No. 14, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, and JIS C8201-5-1. These certifications simplify regulatory approval for panels destined for North American, European, and Japanese markets. The key-less design removes key-management overhead for applications where security locking is not required.
