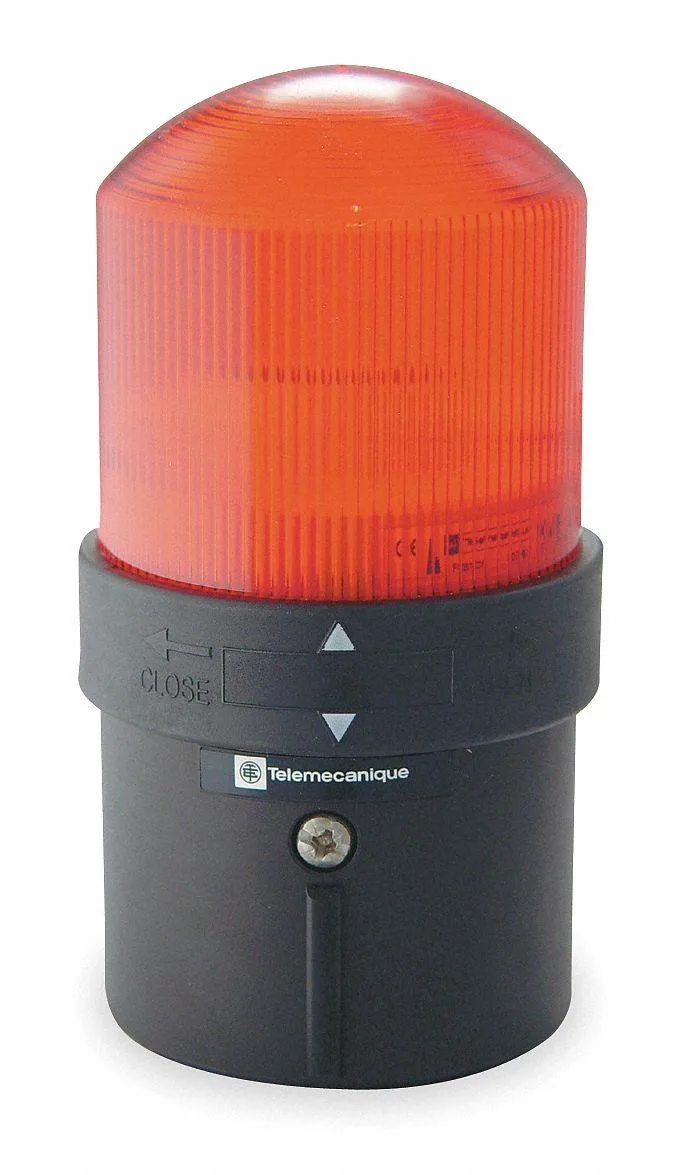

Red cylindrical warning light with screw-on polycarbonate dome, glass-reinforced polyamide housing, surface-mount base

Schneider Electric

Schneider Electric XVBL4B4 Warning Light Red LED 24-48V DC 24V

SKU CH-PFME-DDWKM

Red LED warning light operates on 24 to 48V DC, flashes 60 times per minute and carries IP65 and NEMA 4X ratings

  • widthdiameter3.200
  • Reliable warning signal with 60 flashes per minute
  • Long service life rated at 50,000 hours
  • Withstands harsh environments from -40 to 158 degrees F
  • IP65 and NEMA 1, 4X, 12 ratings for dust and water protection
  • Flexible 24 to 48V DC power input simplifies installation

Application Fit

The Schneider Electric XVBL4B4 is a red LED warning light rated for 24 to 48V DC operation at 24V. It suits industrial panels, machinery enclosures and outdoor stations that need a visible flash signal in harsh environments.

Installation Check

Verify the supply delivers 24V AC or 24 to 48V DC and can provide 850mA DC or 1300mA AC. Confirm a flat surface is available for mounting and that the screw-on dome can be accessed for lamp replacement.

Build & Connectors

The housing uses glass-reinforced polyamide with a polycarbonate dome rated IP65, NEMA 1, 4X and 12. Wiring connects directly to the base, and the unit operates from -40 to 158 degrees F with a 50,000-hour LED life.

Highlights

  • Reliable warning signal with 60 flashes per minute
  • Long service life rated at 50,000 hours
  • Withstands harsh environments from -40 to 158 degrees F
  • IP65 and NEMA 1, 4X, 12 ratings for dust and water protection
  • Flexible 24 to 48V DC power input simplifies installation

Specifications

BrandSCHNEIDER ELECTRIC
widthdiameter3.200

Questions about this item

Does the Schneider Electric XVBL4B4 come with the LED lamp installed or must I purchase it separately?

The warning light ships without a lamp; a compatible LED module must be sourced and fitted before use.

Should I choose the 24 V AC or the 24–48 V DC supply option for my installation?

Select the 24–48 V DC range when wiring to a DC control circuit; the 24 V AC rating applies only to alternating-current supplies.

What does the 60 flashes-per-minute rating mean once the beacon is mounted on a machine?

The unit will emit a red flash once every second, providing a clear visual alert that meets the 60 flashes-per-minute specification.
