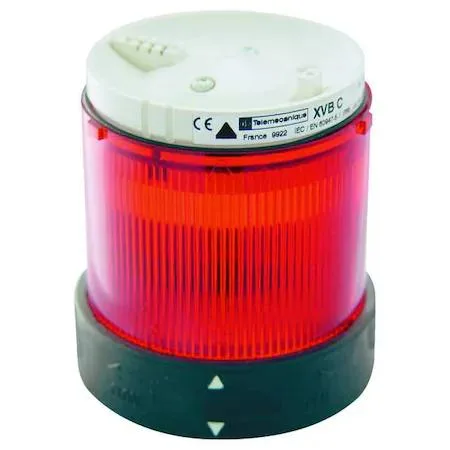

Schneider Electric 70mm red tower light flashing unit

Schneider Electric

Schneider Electric XVBC4B4 Tower Light 70mm Red 24-48V 60 Flashes/min

SKU CH-8R7R-EHMPR MPN XVBC4B4

Flashing 70 mm red LED tower light runs on 24–48 V AC/DC at 60 flashes per minute with NEMA 4X rating

  • NEMA 4X rating protects against dust and water ingress
  • LED flashing at 60 flashes per minute for clear visual alerts
  • Operates on 24 to 48 V AC/DC for flexible installation
  • 70 mm diameter with Fresnel lens enhances signal visibility
  • Certified to CCC, CSA 22.2 No. 14, EAC and UL 508 standards

Industrial Tower Light for Machine Status

The Schneider Electric XVBC4B4 is a 70 mm flashing tower light designed for industrial machinery and process indication. It operates on 24 to 48 V AC/DC and uses a red LED with a Fresnel lens for clear visibility. The unit carries NEMA 4X protection and meets CCC, CSA C22.2 No. 14, EAC and UL 508 standards. It suits panel builders and maintenance teams needing a compact visual signal.

Simple Panel Mount with Standard Voltage

Installation uses a standard 70 mm cut-out and the 24 to 48 V supply range matches common control-circuit voltages. The polycarbonate housing and lens resist impact and corrosion in NEMA 4X environments. A 0.040 A current draw at 7 W keeps wiring straightforward. No bulb is included so the installer must source a compatible 7 W max incandescent or LED module separately.

Single-Colour Flash at Fixed Rate

The light delivers 60 flashes per minute in red only, which covers basic alarm or run-status needs. It does not support multi-colour stacks, steady-burn modes or programmable flash patterns. Buyers who need green, amber or blue segments, continuous illumination or variable frequency should select a different tower light configuration.

Highlights

  • NEMA 4X rating protects against dust and water ingress
  • LED flashing at 60 flashes per minute for clear visual alerts
  • Operates on 24 to 48 V AC/DC for flexible installation
  • 70 mm diameter with Fresnel lens enhances signal visibility
  • Certified to CCC, CSA 22.2 No. 14, EAC and UL 508 standards

Specifications

BrandSchneider Electric
ModelXVBC4B4

Questions about this item

How can I verify the tower light is flashing correctly after installation?

Confirm the unit flashes at 60 flashes per minute with the red LED illuminated when 24 to 48 V DC is applied.

What components are included with the XVBC4B4 and what must be sourced separately?

The tower light ships as a complete 70 mm polycarbonate unit with Fresnel lens; mounting hardware and wiring are not included.

Which voltage version should I select for a 24 V DC control circuit?

Choose the 24 to 48 V DC version; it draws 0.040 A at 7 W and is rated for 24 V AC or 24 to 48 V DC operation.
