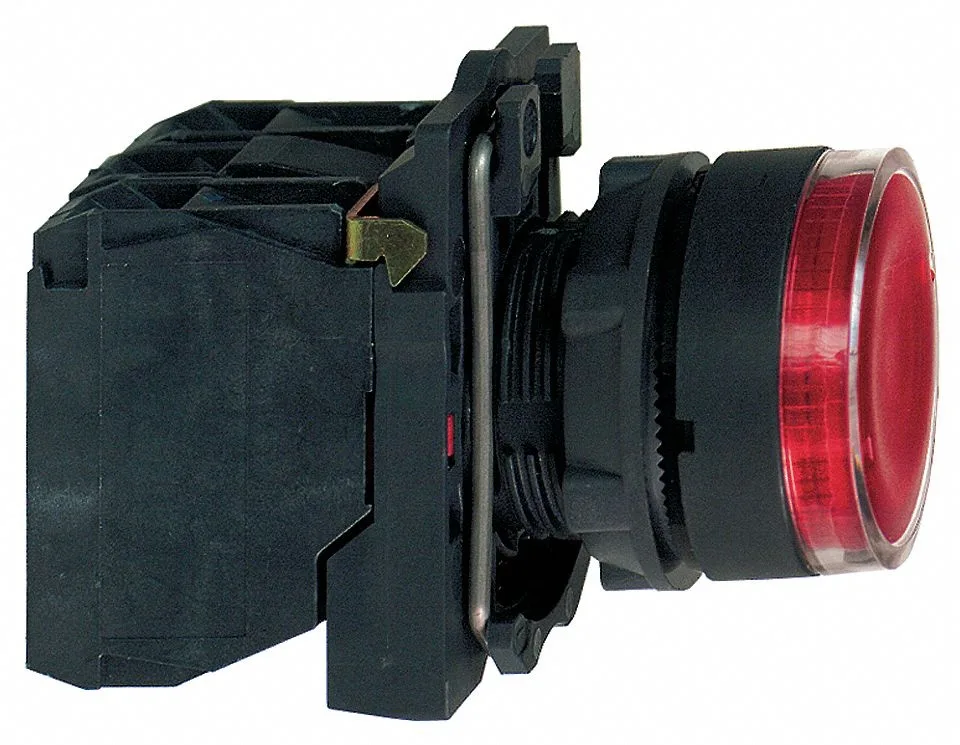

Red illuminated push button, 22 mm round flush head, plastic bezel

Schneider Electric

Schneider Electric XB5AW34B5 illuminated push button 22 mm 1NO/1NC red IP66 IP67 IP69 IP69K

SKU CH-APK9-54SW2

A 22 mm red illuminated push button with 1NO/1NC contacts rated at 10 A and 600 V AC, sealed to IP66, IP67, IP69 and IP69K

  • Color MappingRed
  • TypeIndustrial Electrical Controls & Automation
  • Illuminated operator for clear status indication
  • 22 mm mounting fits standard control panels
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • IP66 IP67 IP69 IP69K sealing resists harsh environments
  • NEMA 13 4 4X enclosure rating ensures robust protection

Schneider Electric XB5AW34B5 Illuminated Push Button

This Schneider Electric XB5AW34B5 is a 22 mm illuminated push button designed for industrial control panels. It features a red flush operator with momentary action and a double-insulated plastic bezel. The unit carries IP66 IP67 IP69 IP69K and NEMA 13 4 4X ratings for harsh environments. It provides 1NO/1NC contacts rated at 10A 600V AC.

Suits panels needing a sealed red momentary switch

This button fits panels requiring a single 22 mm operator with high ingress protection and a 10A 600V AC contact rating. It is not suitable for applications needing maintained action or multiple operators in one head. Buyers who need a different actuator colour or a non-illuminated version should look at other models.

Contact form 1NO/1NC at 10A 600V AC decides fit

The 1NO/1NC contact block delivers one normally open and one normally closed circuit at 10A 600V AC. Verify that your control circuit requires this exact contact arrangement and voltage rating. If your design demands a different contact configuration or a lower voltage rating, this part will not match.

Highlights

  • Illuminated operator for clear status indication
  • 22 mm mounting fits standard control panels
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • IP66 IP67 IP69 IP69K sealing resists harsh environments
  • NEMA 13 4 4X enclosure rating ensures robust protection

Specifications

BrandSCHNEIDER ELECTRIC
Color MappingRed
TypeIndustrial Electrical Controls & Automation

Questions about this item

Does my panel have a 22 mm cutout for this push button?

Yes, the operator is 22 mm in diameter and fits a standard 22 mm panel cutout.

Will the double-insulated plastic bezel hold up next to older metal-enclosure starters?

The bezel is double-insulated plastic rated NEMA 13, 4, 4X and IP66, IP67, IP69, IP69K for harsh environments.

How can I verify the 1NO/1NC contacts are switching correctly after wiring?

Apply 600 V AC up to 10 A and confirm the normally-open closes and the normally-closed opens when the red button is pressed.
