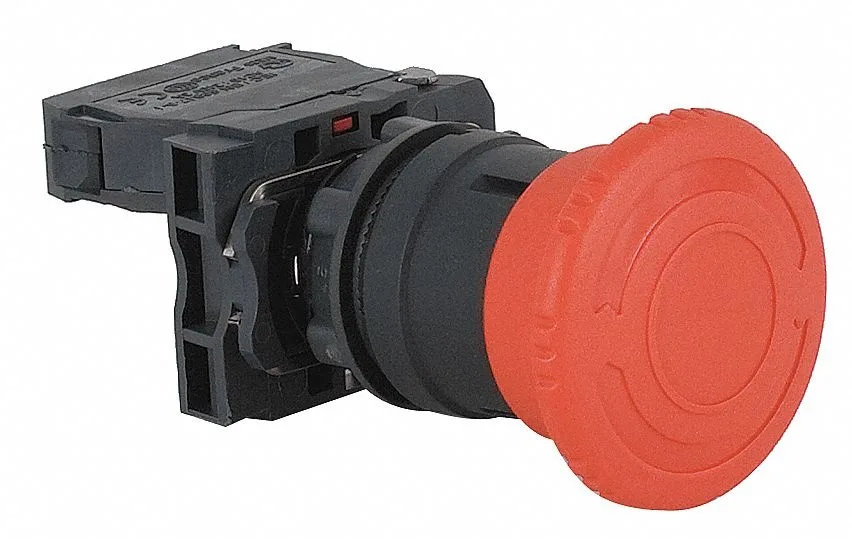

Red 22 mm emergency stop push button with 40 mm mushroom head

Schneider Electric

Schneider Electric XB5AS8445 22 mm emergency stop push button 1NO/1NC red

SKU CH-9PM7-70GCD

A 22 mm red emergency stop push button with a 40 mm mushroom head, 1NO/1NC contacts rated at 10A @ 600V AC, and IP66, IP67, IP69, IP69K protection

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • 22 mm panel cutout fits standard enclosures
  • Maintained mushroom action stays engaged until reset
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • IP66, IP67, IP69 and IP69K sealing resists washdown
  • NEMA 1, 2, 3, 4, 4X, 12 and 13 ratings suit harsh environments

Emergency stop button for 22 mm panels

The Schneider Electric XB5AS8445 is a 22 mm emergency stop push button with a maintained action and a 40 mm red mushroom head. It provides one normally open and one normally closed contact rated at 10 A at 600 V AC. The plastic bezel and head suit industrial control panels and machinery safety circuits.

Maintained action and high ingress protection

The maintained action keeps the circuit open until the operator is deliberately reset, preventing accidental restart. The head and bezel are plastic, while the unit meets NEMA ratings 1, 2, 3, 4, 4X, 12 and 13 together with IP66, IP67, IP69 and IP69K for resistance to dust, water jets and high-pressure cleaning.

Verify panel cut-out and voltage rating

Confirm the mounting panel has a standard 22 mm cut-out and sufficient depth behind the panel for the contact block. Ensure the 600 V AC rating matches the control circuit voltage and that the 10 A contact rating covers the intended load. The single-operator design provides one e-stop point per unit.

Highlights

  • 22 mm panel cutout fits standard enclosures
  • Maintained mushroom action stays engaged until reset
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • IP66, IP67, IP69 and IP69K sealing resists washdown
  • NEMA 1, 2, 3, 4, 4X, 12 and 13 ratings suit harsh environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How often should the mushroom head or contacts be inspected for wear on the XB5AS8445?

Schneider Electric recommends periodic visual checks of the 40 mm mushroom head and 1NO/1NC contacts; replace the operator if the red plastic shows cracking or the maintained latch fails to hold.

What contact rating limits continuous operation on this 22 mm emergency stop?

The 1NO/1NC contacts are rated 10 A at 600 V AC; sustained loads above that level will overheat the silver-alloy tips first.

Does the IP69K-rated bezel get hot or draw extra power during all-day use?

The plastic bezel and maintained operator draw no control power themselves; only the switched circuit carries current, so heat rise depends on the load you connect.
