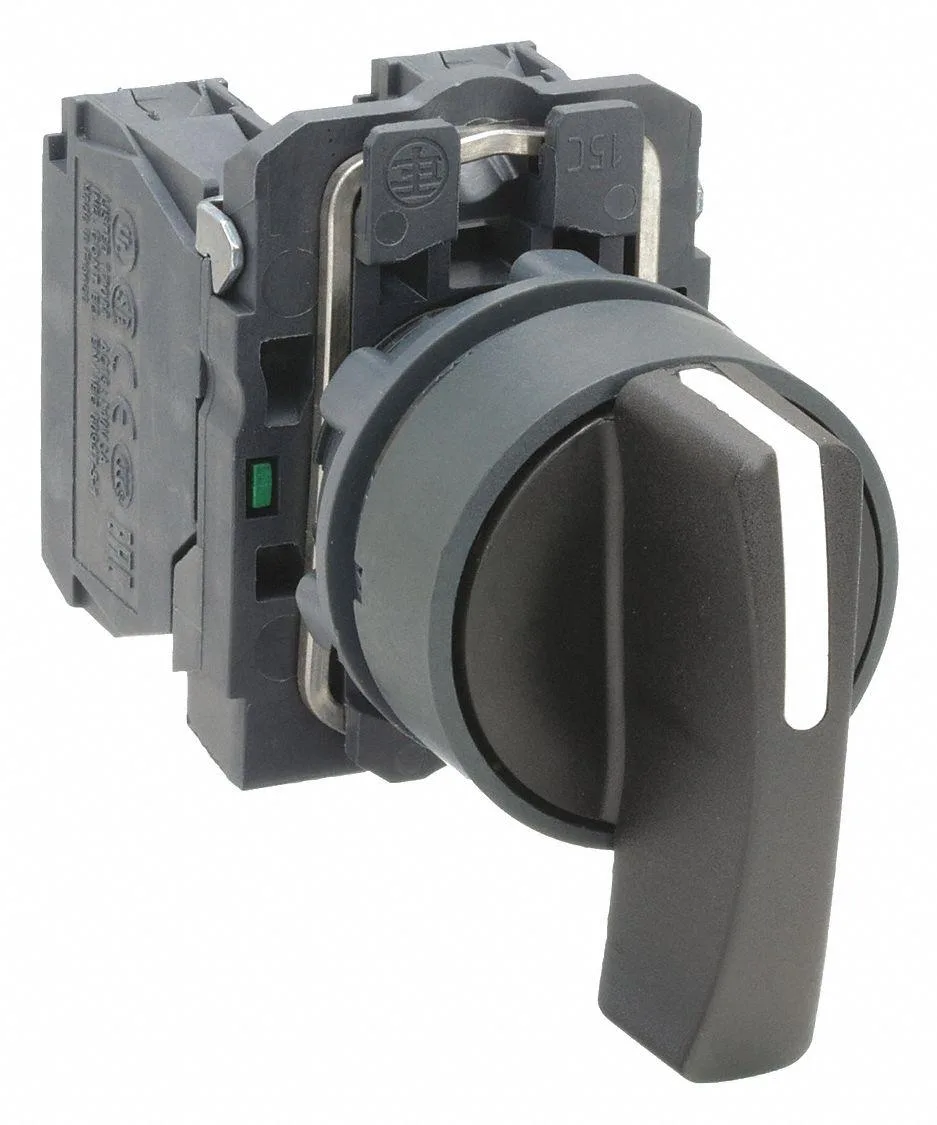

Schneider Electric 22 mm black selector switch with chrome bezel and extended lever

Schneider Electric

Schneider Electric XB5AJ33 selector switch 3 position 22 mm black

SKU CH-PY69-C0W03

A 22 mm three-position selector switch with maintained action, two normally-open contacts rated at 10 A and 600 V AC, and IP67, IP69, IP69K sealing in a black plastic housing

  • TypeIndustrial Electrical Controls & Automation
  • Color MappingBlack
  • Three maintained positions for flexible control
  • 22 mm mounting fits standard panels
  • 10 A at 600 V AC contact rating
  • IP67, IP69 and IP69K sealing resists wash-down
  • NEMA 1, 2, 3, 4, 4X, 12, 13 enclosure ratings

Schneider Electric XB5AJ33 selector switch

This Schneider Electric selector switch is a 22 mm industrial control device with three maintained positions and a black extended lever operator. It carries a 10 A contact rating at 600 V AC and meets NEMA B600/Q600 designations for heavy-duty pilot duty. The switch suits panel builders and maintenance engineers who need reliable manual selection in automation panels.

Plastic construction with IP67 IP69 IP69K ratings

The operator head, bezel and basic body are all plastic with a chrome-coloured bezel, delivering IP67, IP69 and IP69K ingress protection for wash-down environments. A 22 mm panel cut-out accepts the extended lever, which stays in each selected position without spring return. Two normally open contacts change state according to the cam sequence marked XO at position A and OO at position B.

Verify panel cut-out and contact logic before

Confirm the 22 mm mounting hole matches your enclosure and that the maintained action in all three positions fits the control sequence you require. Check that the XO and OO contact transitions at positions A and B align with your wiring diagram, and ensure the 10 A at 600 V AC rating covers the load you intend to switch.

Highlights

  • Three maintained positions for flexible control
  • 22 mm mounting fits standard panels
  • 10 A at 600 V AC contact rating
  • IP67, IP69 and IP69K sealing resists wash-down
  • NEMA 1, 2, 3, 4, 4X, 12, 13 enclosure ratings

Specifications

TypeIndustrial Electrical Controls & Automation
BrandSCHNEIDER ELECTRIC
Color MappingBlack

Questions about this item

What NEMA contact rating does the XB5AJ33 selector switch provide?

The switch carries a B600/Q600 NEMA contact rating, allowing 10 A at 600 V AC for typical industrial control circuits.

What panel cut-out and bezel dimensions are required to mount this 22 mm selector switch?

A 22 mm panel cut-out is needed; the operator head and bezel are plastic with a chrome-coloured bezel, and the extended lever projects beyond the front face.

How is the XB5AJ33 wired, and which step is often missed during installation?

Wire the two normally-open contacts according to the XO/OO position table; the step frequently missed is confirming the maintained action at all three positions before final tightening.
