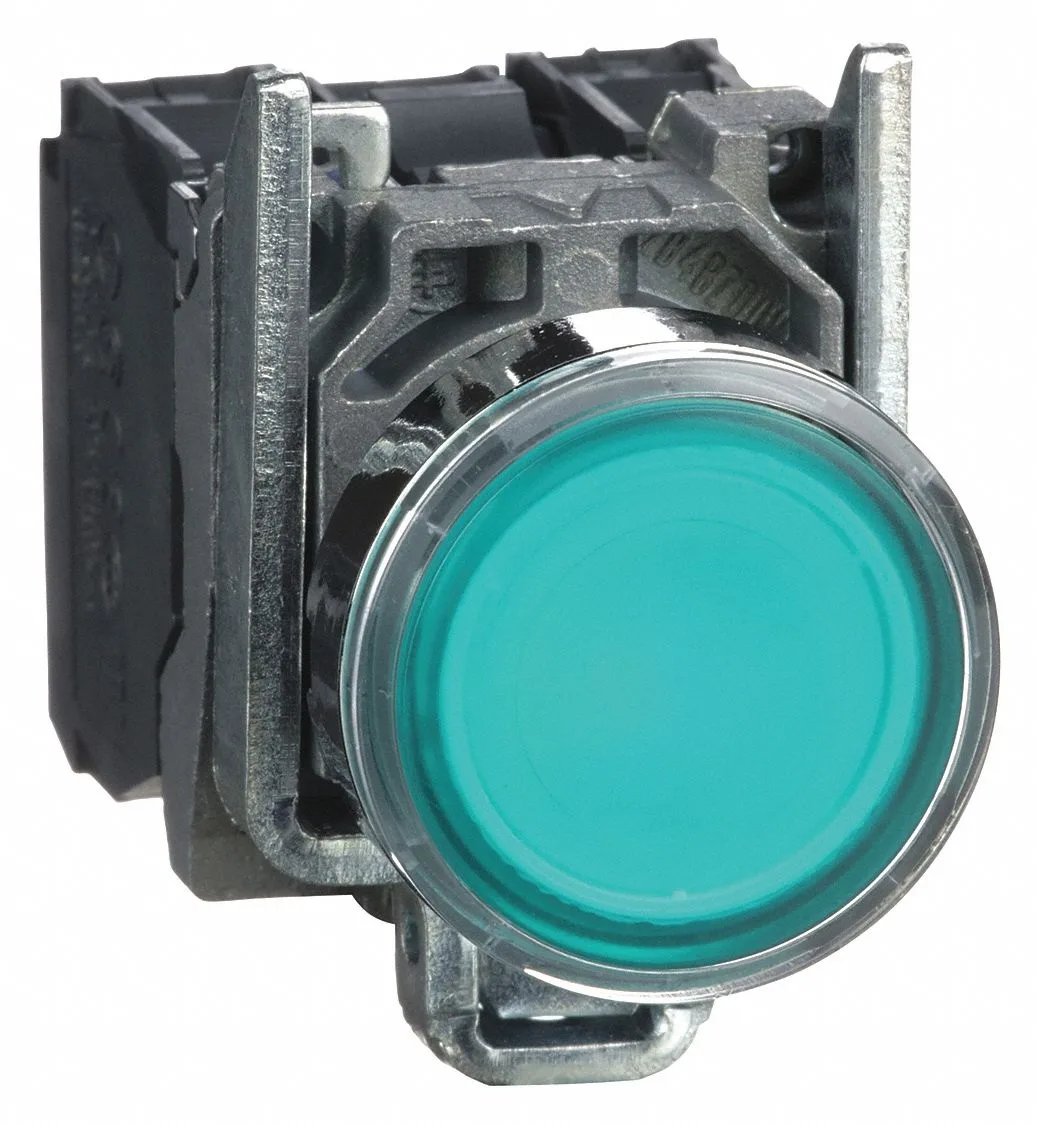

Schneider Electric XB4BW33G5 22 mm illuminated push button green 1NO/1NC
A 22 mm illuminated push button with green momentary operator, 1NO/1NC contacts rated 10 A at 600 V AC, and IP66, IP67, IP69, IP69K protection
- TypeIndustrial Electrical Controls & Automation
- Size22 mm
- Green illuminated 22 mm push button for clear status indication
- Momentary action with guarded metal head resists accidental activation
- 1NO/1NC contacts rated 10 A at 600 V AC for reliable switching
- NEMA 1, 2, 3, 4, 4X, 12, 13 and IP66, IP67, IP69, IP69K sealing for harsh environments
- Chrome-plated metal bezel provides durability and professional appearance
22 mm Illuminated Push Button for Industrial Panels
This 22 mm illuminated push button from Schneider Electric is built for industrial control panels and automation equipment. The green LED indicator and momentary action suit start, stop or reset functions where visual status is required. A chrome-plated metal bezel and metal head provide durability in demanding environments.
Contact Rating and Environmental Sealing Under
The contact block carries a 10 A rating at 600 V AC with NEMA A600/Q600 designation, supporting sustained switching without derating. NEMA 1, 2, 3, 4, 4X, 12, 13 ratings and IP66, IP67, IP69, IP69K sealing protect the internals during prolonged exposure to water jets, dust and high-pressure washdown. The single operator maintains consistent actuation force over extended duty cycles.
Metal Construction and Panel Mounting Implications
The round guarded operator with metal head and chrome-plated bezel resists impact and corrosion in harsh settings. A 22 mm panel cut-out accepts the threaded body for secure front-of-panel mounting. The 1NO/1NC contact form provides both normally open and normally closed circuits from a single block, simplifying wiring for safety or interlock logic.
Highlights
- Green illuminated 22 mm push button for clear status indication
- Momentary action with guarded metal head resists accidental activation
- 1NO/1NC contacts rated 10 A at 600 V AC for reliable switching
- NEMA 1, 2, 3, 4, 4X, 12, 13 and IP66, IP67, IP69, IP69K sealing for harsh environments
- Chrome-plated metal bezel provides durability and professional appearance
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|---|
| Type | Industrial Electrical Controls & Automation |
| Size | 22 mm |
Questions about this item
Does the 22 mm illuminated push button generate noticeable heat or noise during continuous operation?
The Schneider Electric XB4BW33G5 is a passive electromechanical switch with no moving parts that produce heat or audible noise under normal 10 A, 600 V AC duty cycles.
What mounting hardware and wiring must already be in place for this 22 mm push button to function?
A standard 22 mm panel cut-out, matching legend plate if required, and wiring rated for 600 V AC to connect the 1NO/1NC contacts are needed before installation.
Will the chrome-plated metal bezel and IP66/IP67/IP69K ratings remain reliable when mounted beside older 22 mm operators?
Yes, the identical 22 mm footprint, NEMA 1/12/13/2/3/4/4X ratings and A600/Q600 contact designation ensure mechanical and electrical compatibility with legacy panels.
