Schneider Electric XB4BG61 keyed selector switch, chrome metal bezel, 22 mm

Schneider Electric

Schneider Electric XB4BG61 selector switch keyed 22 mm

SKU CH-7MPK-4178X

Keyed 22 mm selector switch with two maintained positions, 10 A at 600 V AC rating, and IP66/IP67/IP69K sealing

  • TypeIndustrial Electrical Controls & Automation
  • Color MappingChrome
  • Keyed operator prevents unauthorised access
  • Chrome-plated metal bezel resists corrosion and impact
  • IP66, IP67, IP69 and IP69K sealing withstands high-pressure washdown
  • NEMA 1, 2, 3, 4, 12, 13 ratings suit indoor and outdoor industrial use
  • 10 A at 600 V AC contact rating handles heavy control circuits

22 mm keyed selector switch

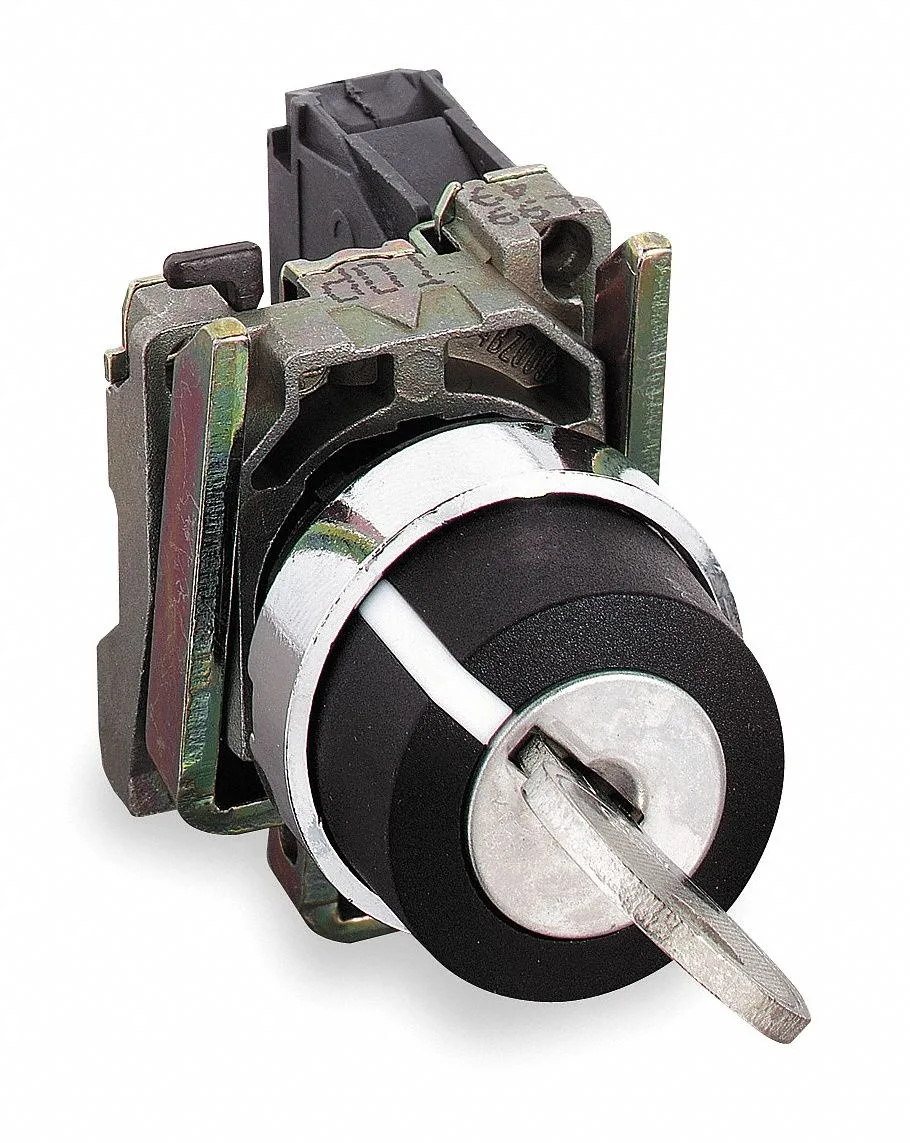

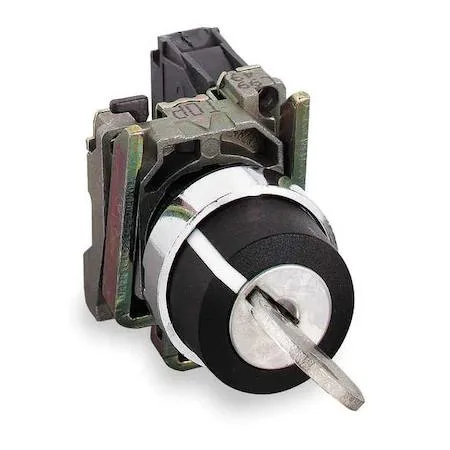

The Schneider Electric XB4BG61 is a 22 mm diameter keyed selector switch designed for industrial control panels. It provides a two-position maintained or momentary action with a single normally open contact. The chrome-plated metal bezel and metal operator head suit harsh environments. It is built for operators who need secure, key-operated machine control.

Replaces worn or non-keyed operators

This switch upgrades existing 22 mm panel cut-outs where a basic knob or non-illuminated selector lacks key security. The jump is worth it when access must be restricted to authorised personnel and the panel demands IP66, IP67, IP69 or IP69K sealing. The B600/Q600 contact rating supports 10 A at 600 V AC for standard control circuits.

Fits standard 22 mm cut-outs

The unit mounts in a 22 mm panel opening and requires a compatible contact block for the 1NO circuit. Its NEMA 1, 2, 3, 4, 12, 13 rating frees the enclosure design from additional weatherproofing measures. Left key removal ensures the key cannot be withdrawn in the active position, reinforcing safety procedures.

Highlights

  • Keyed operator prevents unauthorised access
  • Chrome-plated metal bezel resists corrosion and impact
  • IP66, IP67, IP69 and IP69K sealing withstands high-pressure washdown
  • NEMA 1, 2, 3, 4, 12, 13 ratings suit indoor and outdoor industrial use
  • 10 A at 600 V AC contact rating handles heavy control circuits

Specifications

TypeIndustrial Electrical Controls & Automation
BrandSCHNEIDER ELECTRIC
Color MappingChrome

Questions about this item

What panel cut-out diameter does the 22 mm keyed selector switch require?

The operator mounts in a standard 22 mm panel cut-out with a chrome-plated metal bezel.

How do I wire the single normally-open contact on the XB4BG61?

Terminate the 1NO contact block to the switch terminals; the cam gives maintained position A (O) and momentary position B (X).

When should the keyed operator head be replaced?

Replace the metal operator head if the key removal at the left position becomes unreliable or the IP66/IP67/IP69K seal is compromised.
