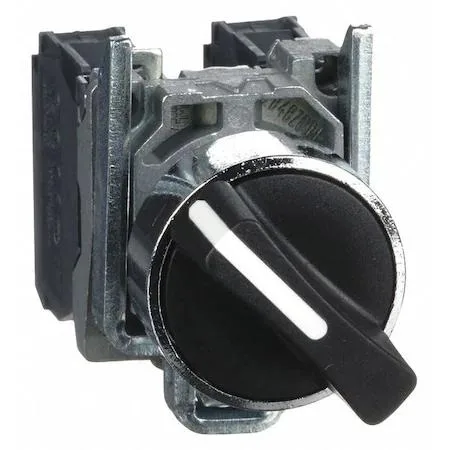

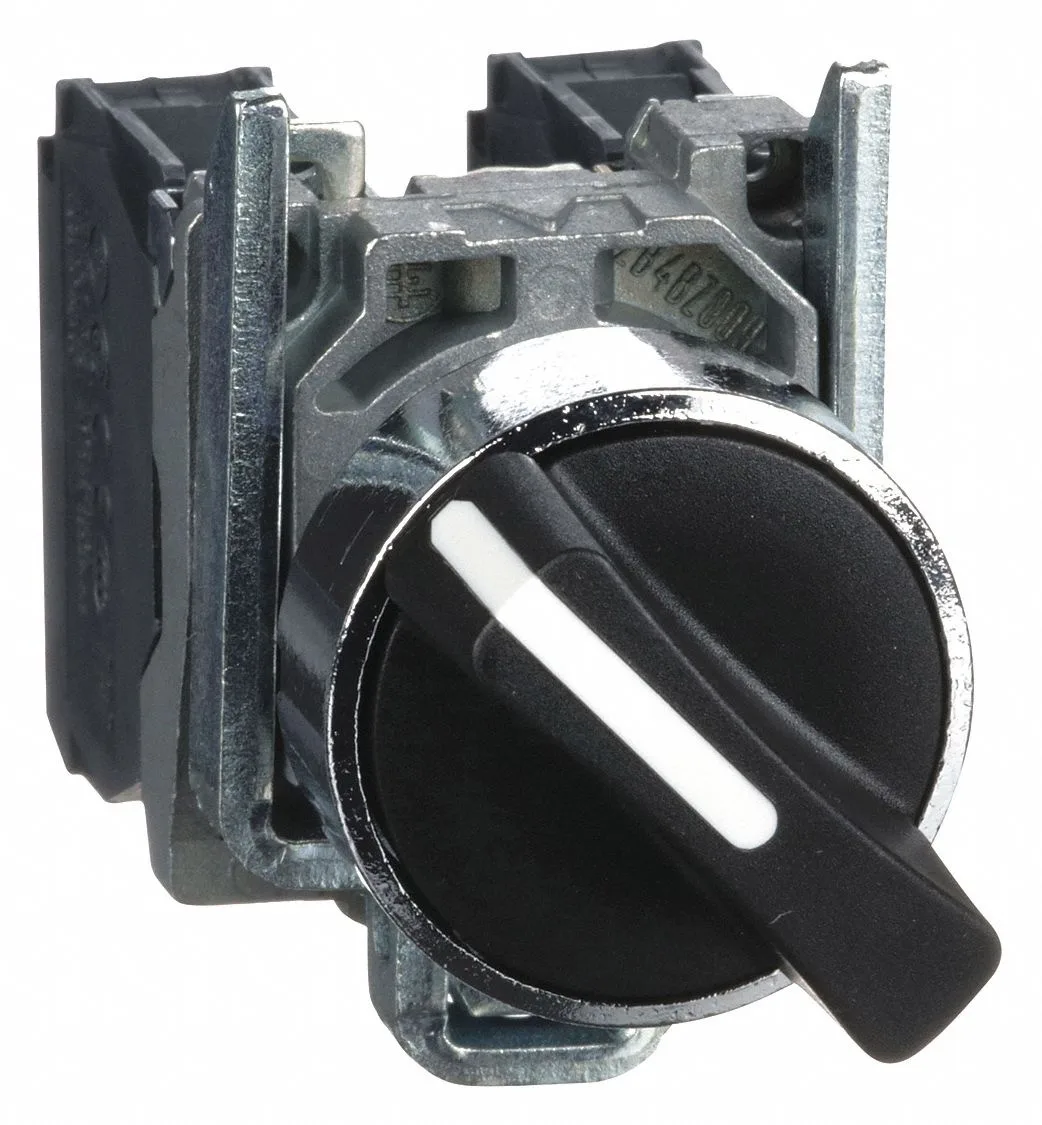

Schneider Electric XB4BD25 Selector Switch 22mm 2 Position Lever
A 22 mm two-position maintained lever selector switch rated NEMA 1, 2, 3, 4, 12, 13 and IP67, IP69, IP69K
- 22 mm mounting fits standard panels
- IP67 and IP69K ratings resist water and dust ingress
- Maintained two-position lever stays set without spring return
- NEMA 1, 2, 12, 13 ratings suit indoor and outdoor enclosures
- Chrome-plated metal bezel adds durability in harsh environments
Schneider Electric XB4BD25 Selector Switch
The Schneider Electric XB4BD25 is a 22 mm short-handled selector switch designed for industrial control panels. It provides two maintained positions with a black plastic lever operator on a chrome-plated metal bezel. The unit carries NEMA ratings 1, 2, 3, 4, 12, 13 and IP ratings IP67, IP69, IP69K for demanding environments.
Thermals noise and power draw
As a manual mechanical operator the switch generates no heat and produces no audible noise during actuation. It draws zero electrical power because it contains no active electronics or illumination. The contacts simply open or close according to the lever position without any supply requirement.
Build integration and clearance
The switch mounts in a standard 22 mm panel cut-out and uses a metal body with a chrome bezel for secure fastening. The maintained action holds position A (OX) and position B (XO) without spring return. No cam is included so the contact block must be sourced separately to complete the circuit.
Highlights
- 22 mm mounting fits standard panels
- IP67 and IP69K ratings resist water and dust ingress
- Maintained two-position lever stays set without spring return
- NEMA 1, 2, 12, 13 ratings suit indoor and outdoor enclosures
- Chrome-plated metal bezel adds durability in harsh environments
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
How is the 22 mm selector switch mounted and what step do installers often miss?
The switch fits a standard 22 mm panel cut-out and uses a chrome-plated metal bezel that threads onto the operator head; the step often missed is tightening the locking nut to the specified torque so the IP67 and IP69K seals seat correctly.
What maintenance or replacement will the selector switch need over time?
The plastic operator head and metal basic material are designed for maintained two-position operation with cam action OX at position A and XO at position B; no user-serviceable parts are inside, so replacement is only required if the lever mechanism becomes mechanically worn or the bezel finish is damaged.
Which environmental limit is reached first during sustained industrial use?
The NEMA 1, 2, 3, 4, 12, 13 and IP67, IP69, IP69K ratings protect against dust, water jets and high-pressure wash-down; the first limit reached is typically the mechanical endurance of the lever cam rather than the sealing rating.
