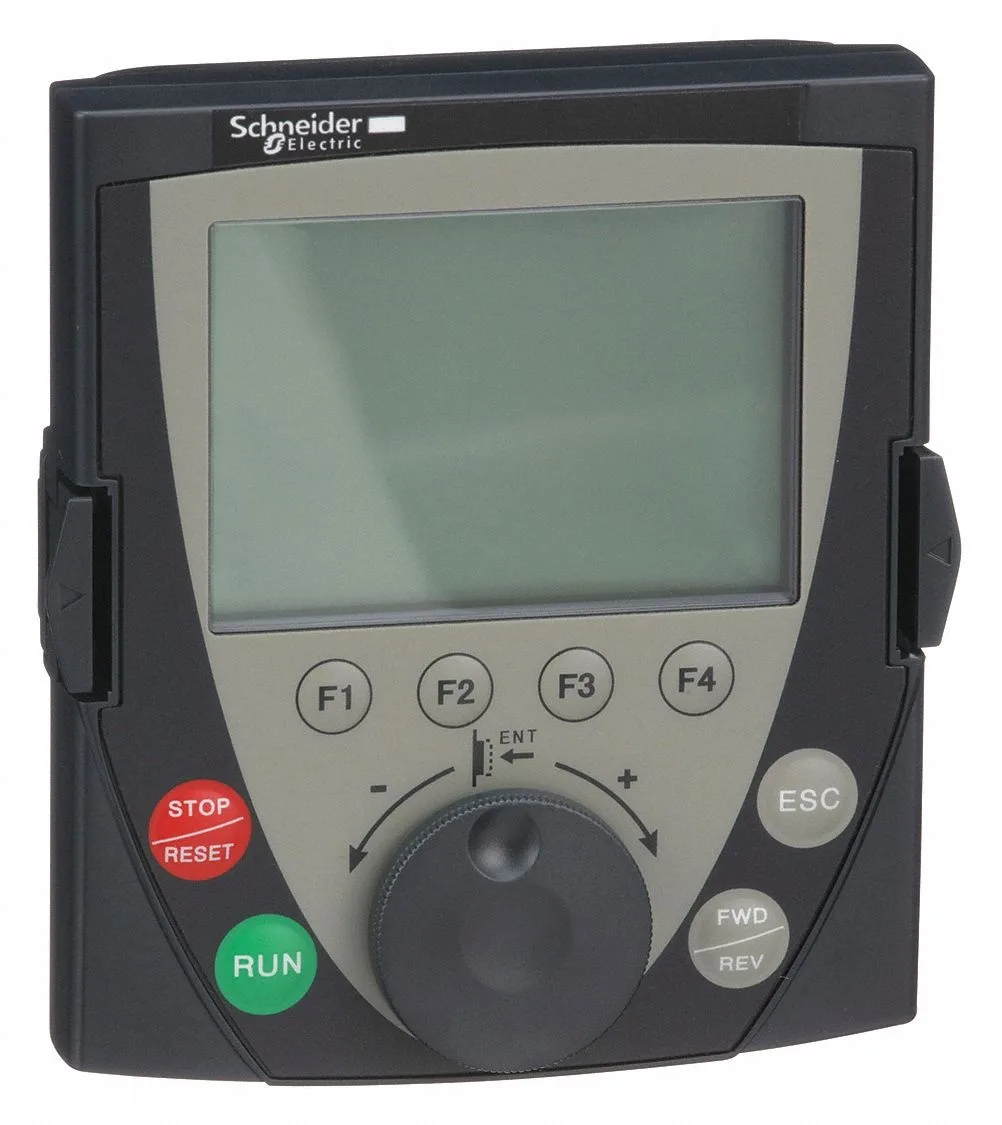

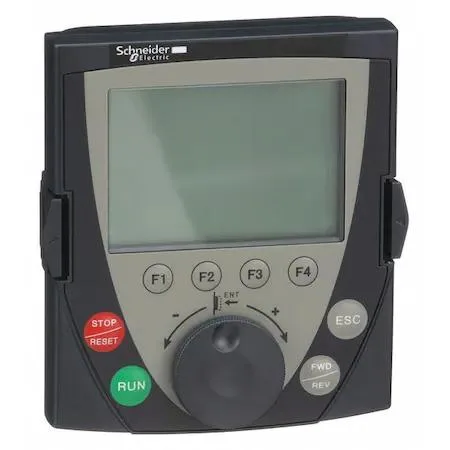

Schneider Electric VW3A1101 LCD graphic keypad, IP54 rated rectangular unit with dark screen and membrane buttons

Schneider Electric

Schneider Electric VW3A1101 LCD Graphic Keypad IP54

SKU CH-7FPZ-8V15M

LCD graphic keypad rated IP54 for Schneider Electric Altivar variable-speed drives including ATV212, ATV312, ATV32, ATV320, ATV61 and ATV71 series

  • TypeMotors
  • Clear LCD graphics simplify drive configuration
  • IP54 enclosure rating protects against dust and water jets
  • Compatible with Altivar 212, 312, 320, 61, 71 series
  • Works with VW3A1104R10, R30, R50, R100 cables
  • Supports VW3A1105 and VW3CANTAP2 accessories

Schneider Electric VW3A1101 LCD Graphic Keypad

The Schneider Electric VW3A1101 is an LCD graphic keypad rated IP54 for use with Altivar variable speed drives. It provides a local human-machine interface for drive configuration, monitoring and control in industrial environments. The unit is designed for panel or door mounting on compatible Altivar 212, 312, 32, 320, 61, 61Q, 71 and 71Q series drives. Operators and maintenance engineers use it for on-site parameter adjustment without a PC.

Replaces legacy remote display modules

This keypad supersedes earlier remote display accessories such as the VW3A1104R10, VW3A1104R30, VW3A1104R50 and VW3A1104R100 cables and the VW3A1105 remote mounting kit. It also replaces the VW3CANTAP2 CANopen tap for local display duties. The upgrade is worthwhile when an existing drive installation lacks a built-in graphic display or when a door-mounted IP54 interface is required for harsh conditions. It consolidates cabling and mounting hardware into a single sealed unit.

Suits Altivar drive integrators and panel builders

The keypad suits system integrators and panel builders fitting Altivar 212, 312, 32, 320, 61, 61Q, 71 or 71Q drives into IP54 enclosures. It is not for installations that require a higher ingress protection rating than IP54. Buyers needing wireless connectivity, multi-language font sets beyond the factory load, or a colour touchscreen should look at other Schneider Electric HMI ranges. It also does not support drives outside the listed Altivar series.

Highlights

  • Clear LCD graphics simplify drive configuration
  • IP54 enclosure rating protects against dust and water jets
  • Compatible with Altivar 212, 312, 320, 61, 71 series
  • Works with VW3A1104R10, R30, R50, R100 cables
  • Supports VW3A1105 and VW3CANTAP2 accessories

Specifications

BrandSCHNEIDER ELECTRIC
TypeMotors

Questions about this item

What mounting cut-out or enclosure rating does the VW3A1101 keypad require?

The keypad is rated IP54 and is designed for use with Altivar drives including the ATV212, ATV312, ATV32, ATV320, ATV61, ATV61Q, ATV71 and ATV71Q series.

How do I connect the VW3A1101 to my drive and which step is often missed?

Connect using a compatible remote-mount cable such as the VW3A1104R10, VW3A1104R30, VW3A1104R50 or VW3A1104R100; the step often missed is securing the cable’s connector locking tab to maintain the IP54 seal.

Which replacement cables or tap accessories might be needed later for the VW3A1101?

Spare remote cables VW3A1104R10, VW3A1104R30, VW3A1104R50, VW3A1104R100 and the CANopen tap VW3CANTAP2 are the compatible replacement parts.
