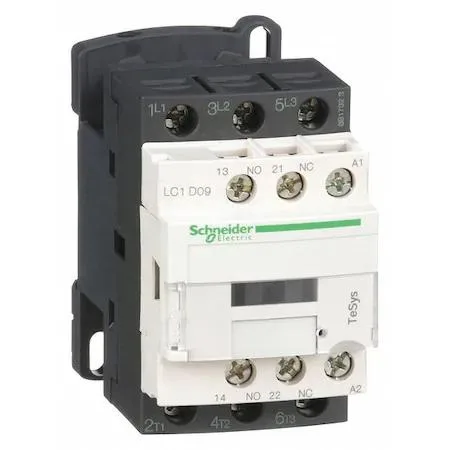

Transparent IEC magnetic contactor, DIN-rail mount, screw-clamp terminals, 1.77 by 3.03 inches

Schneider Electric

Schneider Electric Square D LC1D09T7 480V 3P 9A 20A video accessory

SKU CH-HWFD-H3T4R

IEC magnetic contactor with 9 A inductive and 20 A resistive ratings at 480 V AC, three-pole non-reversing operation, screw-clamp terminals and DIN-rail mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Rated for 9 A inductive loads and 20 A resistive loads
  • 480 V AC coil voltage suits industrial control panels
  • Three-pole non-reversing contactor for straightforward motor switching
  • Compact 3.03 in height and 1.77 in width fits tight DIN-rail spaces
  • Screw-clamp terminals give secure wiring without special tools

IEC magnetic contactor for three-phase control

The Schneider Electric Square D LC1D09T7 is a non-reversing IEC contactor rated for 480 V AC coil voltage. It switches three poles with a 9 A inductive and 20 A resistive full-load rating and includes 1 NO and 1 NC auxiliary contact.

Verify coil voltage and mounting before ordering

Your control circuit must supply 480 V AC to operate the coil. The unit mounts on DIN rail or plate and uses screw-clamp terminals for wiring. Confirm the enclosure rating suits the installation because the contactor ships with no enclosure.

Suits panels needing a compact three-pole starter

It fits applications that require a small-footprint IEC contactor with auxiliary feedback. Builders who need reversing operation, a different coil voltage or an integrated enclosure should look at other models.

Highlights

  • Rated for 9 A inductive loads and 20 A resistive loads
  • 480 V AC coil voltage suits industrial control panels
  • Three-pole non-reversing contactor for straightforward motor switching
  • Compact 3.03 in height and 1.77 in width fits tight DIN-rail spaces
  • Screw-clamp terminals give secure wiring without special tools

Specifications

BrandSQUARE D
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What comes in the box with the LC1D09T7 contactor and what must be purchased separately?

The contactor body with integrated 1NO/1NC auxiliary contacts and screw-clamp terminals is supplied; DIN-rail or plate mounting hardware and control-circuit wiring are not included.

Should I select the 9 A inductive or the 20 A resistive rating for my application?

Use the 9 A rating for motor or inductive loads and the 20 A rating for heating or resistive loads; both values apply to the same three-pole device.

How does the 480 V AC coil voltage affect installation in a real panel?

The coil requires a 480 V AC control supply; ensure your control transformer or source matches this voltage before wiring the contactor.
