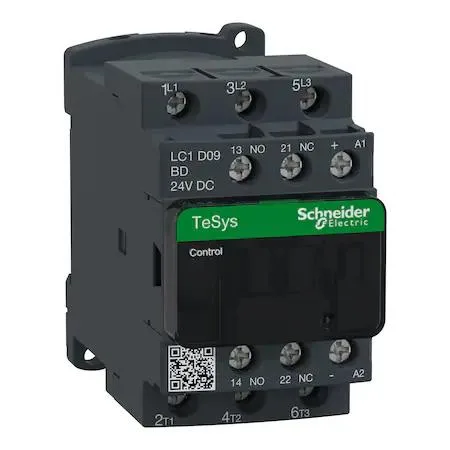

Transparent IEC magnetic contactor with screw terminals and DIN rail mounting

Schneider Electric

Schneider Electric SQUARE D LC1D09BD 24V DC 3P 9A Contactor

SKU CH-DG6Y-CHCS9

A 24 V DC, three-pole IEC contactor rated for 9 A inductive and 20 A resistive loads with DIN-rail mounting and screw-clamp terminals

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Reliable switching up to 9 A inductive load
  • Handles 20 A resistive current for heavier circuits
  • Low 24 V DC coil voltage for safe control
  • Compact 1.77 in width fits tight DIN-rail space
  • Screw-clamp terminals enable fast, secure wiring

Purpose-built IEC contactor

The Schneider Electric SQUARE D LC1D09BD is a non-reversing three-pole IEC magnetic contactor designed for 24 V DC coil operation. It handles inductive loads up to 9 A and resistive loads up to 20 A with a 1NO/1NC auxiliary contact pair. The unit mounts on DIN rail or plate using screw clamp terminals.

Suits compact panels not high-power motor starters

This contactor fits builders who need a small-footprint IEC switch for lighting heating or low-current motor circuits in a 24 V DC control system. The 3.03 in height and 1.77 in width suit tight enclosures. It will not serve applications that require reversing capability or higher inductive current ratings.

9 A inductive rating at 24 V DC coil

The defining limit is the 9 A full-load inductive current rating paired with a 24 V DC coil voltage. Verify that the load never exceeds this inductive figure and that the control circuit supplies exactly 24 V DC. The 20 A resistive rating applies only to non-inductive loads.

Highlights

  • Reliable switching up to 9 A inductive load
  • Handles 20 A resistive current for heavier circuits
  • Low 24 V DC coil voltage for safe control
  • Compact 1.77 in width fits tight DIN-rail space
  • Screw-clamp terminals enable fast, secure wiring

Specifications

BrandSQUARE D
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Does my panel already have a 24 V DC supply for the coil?

The contactor coil requires a 24 V DC source; verify your control circuit provides this voltage before wiring.

Can the 9 A inductive rating handle the motor I’m keeping?

The contactor is rated 9 A inductive and 20 A resistive; confirm your motor’s full-load current does not exceed 9 A.

How do I confirm the auxiliary contacts changed state after energising?

With the coil powered, measure continuity across the 1NO/1NC auxiliary pair to verify switching.
