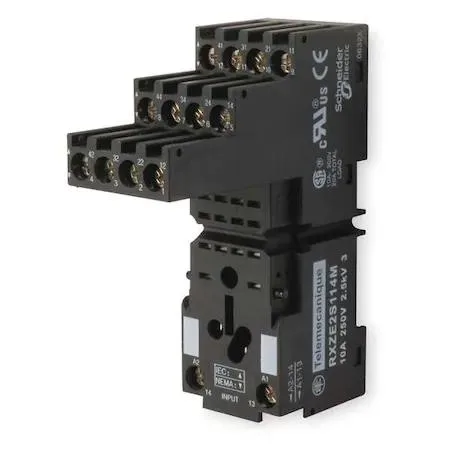

Black square relay socket with 14 flat screw terminals DIN rail mountable

Schneider Electric

Schneider Electric RXZE2S114M 14-Pin DIN Rail Socket 250V 10A

SKU CH-ZPZ5-2A9JQ

A 14-pin DIN rail socket rated 10 A at 250 V with IP20 finger-safe terminals

  • TypeSquare
  • Length1.000
  • ColorBlack
  • Weight0.14
  • 14-pin relay socket fits Harmony RXM series
  • 10 A / 250 V AC rating for standard control circuits
  • IP20 finger-safe terminals prevent accidental contact
  • DIN rail and surface mounting for flexible panel layout
  • Screw-clamp flat-pin terminals accept 0.09 in pins

Socket for Harmony RXM Relays

The Schneider Electric RXZE2S114M is a 14-pin square relay socket designed for DIN rail and surface mounting. It accepts Harmony RXM series relays with a 4PDT contact form and provides finger-safe elevator terminals for secure wiring in industrial control panels.

Rated 10 A at 250 V with IP20 protection

The socket carries a contact rating of 10 A at 250 V AC and meets IP20 ingress protection. It operates up to a maximum temperature of 131 degrees Fahrenheit, making it suitable for standard cabinet environments without forced cooling.

Elevator terminals and DIN rail mounting

Screw-type elevator terminals with 0.09 in flat pins simplify conductor insertion and reduce wiring time. The base mounts directly on standard DIN rail or flat surfaces, and the black square housing measures 3.25 in deep by 2.4 in high for compact panel layouts.

Highlights

  • 14-pin relay socket fits Harmony RXM series
  • 10 A / 250 V AC rating for standard control circuits
  • IP20 finger-safe terminals prevent accidental contact
  • DIN rail and surface mounting for flexible panel layout
  • Screw-clamp flat-pin terminals accept 0.09 in pins

Specifications

BrandSchneider Electric
ModelRXZE2S114M
TypeSquare
Length1.000
ColorBlack
Weight0.14

Questions about this item

How do I mount the RXZE2S114M on a DIN rail and secure it to the panel?

Clip the socket onto a standard DIN rail until the latch engages, then drive the two mounting screws through the side flanges to lock it against the panel; the step often missed is tightening both screws after the rail clip feels secure.

What parts of the RXZE2S114M will need inspection or replacement after extended service?

Check the 14 screw terminals for discoloration or loose wires, verify the elevator contacts still grip the relay pins firmly, and replace the socket if the black housing shows heat stress or the IP20 finger-safe shrouds are cracked.

At what temperature does the RXZE2S114M reach its continuous operating limit?

The socket is rated for a maximum operating temperature of 131 Degrees F; sustained loads at 10 A and 250 V will push the housing toward that limit first, so monitor ambient temperature and wire gauge to stay below it.
