Schneider Electric 14-pin square plug-in relay with LED indicator

Schneider Electric

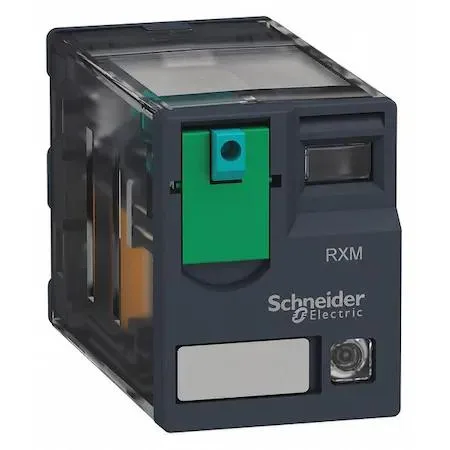

Schneider Electric RXM4GB2BD 14 Pin 24VDC Plug-In Relay

SKU CH-131J-Y6G9W

A 14-pin plug-in relay with LED indicator for 24 V DC control circuits, switching up to 3 A at 277 V AC or 28 V DC

  • TypeMiniature Plug In, LED Indicator
  • 4PDT contact form switches four circuits independently
  • 24 V DC coil voltage suits low-voltage control panels
  • 3 A rating at 277 V AC handles mains loads
  • 3 A rating at 28 V DC covers battery circuits
  • LED indicator plus mechanical flag shows relay status at a glance

Relay Purpose and Audience

The Schneider Electric RXM4GB2BD is a 14-pin miniature plug-in relay designed for control panels and automation systems. It suits engineers and technicians who need a compact switching device with a 24 V DC coil and visual status feedback. The built-in LED and mechanical flag simplify commissioning and troubleshooting in industrial environments.

Upgrade Context and Value

This relay replaces older plug-in models that lack an integrated indicator or push-to-test function. The jump is worthwhile when maintenance speed matters, because the lockable test button allows circuit verification without removing the unit. Silver-gold contacts also extend service life in low-level signal applications where standard contacts may degrade.

Capacity and Limits

The relay handles 3 A at 277 V AC or 3 A at 28 V DC across four changeover contacts, drawing 1.1 W coil power. It comfortably switches small motors, solenoids and pilot loads in 24 V DC control circuits. It runs out when loads exceed the 3 A rating or when higher-voltage DC switching is required beyond the 28 V limit.

Highlights

  • 4PDT contact form switches four circuits independently
  • 24 V DC coil voltage suits low-voltage control panels
  • 3 A rating at 277 V AC handles mains loads
  • 3 A rating at 28 V DC covers battery circuits
  • LED indicator plus mechanical flag shows relay status at a glance

Specifications

BrandSchneider Electric
ModelRXM4GB2BD
TypeMiniature Plug In, LED Indicator

Questions about this item

What socket accepts the 14-pin square base of this relay?

Use a Schneider Electric G-series socket that matches the 14-pin square plug-in layout.

Which step is often missed when plugging the relay into its socket?

Seat the relay fully until the locking clips engage; a loose fit opens the 4PDT contacts under vibration.

How can I tell when the silver-gold contacts need replacement?

The LED indicator and mechanical flag show coil status; if they stay lit but the load does not switch, the contacts are worn.
