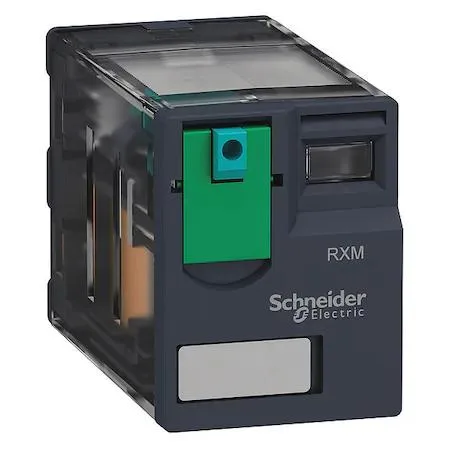

Schneider Electric RXM4AB1BD 14-pin 24VDC plug-in relay with mechanical indicator

Schneider Electric

Schneider Electric RXM4AB1BD 14 Pin 24VDC Relay

SKU CH-D336-W51FJ

A 14-pin plug-in relay with a 24 V DC coil, 4PDT silver-nickel contacts rated 6 A at 277 V AC and 8 A at 28 V DC, plus a mechanical flag indicator and lockable push-to-test button

  • TypeMiniature Plug In, Mechanical Indicator
  • Miniature plug-in design simplifies installation on standard sockets
  • 14-pin configuration provides four-pole double-throw switching flexibility
  • 24 V DC coil operates on common control voltages
  • 6 A at 277 V AC and 8 A at 28 V DC contact ratings suit mixed loads
  • Mechanical flag indicator and lockable push-to-test button enable quick status checks

Product identity

The Schneider Electric RXM4AB1BD is a 14-pin miniature plug-in relay with a 24 V DC coil. It suits control panels and automation cabinets that need four change-over contacts in a square base format.

Thermals noise and power

The coil consumes 1.1 W during normal operation. Contacts are rated for 6 A at 277 V AC or 8 A at 28 V DC. A mechanical flag provides visual status indication without added electronics.

Deciding specification

The 4PDT contact form delivers four independent change-over circuits from a single relay. Builders needing fewer poles or a different coil voltage must choose another part.

Highlights

  • Miniature plug-in design simplifies installation on standard sockets
  • 14-pin configuration provides four-pole double-throw switching flexibility
  • 24 V DC coil operates on common control voltages
  • 6 A at 277 V AC and 8 A at 28 V DC contact ratings suit mixed loads
  • Mechanical flag indicator and lockable push-to-test button enable quick status checks

Specifications

BrandSchneider Electric
ModelRXM4AB1BD
TypeMiniature Plug In, Mechanical Indicator

Questions about this item

How do I install the Schneider Electric RXM4AB1BD relay and what is the common wiring mistake?

Plug the 14-pin relay into a compatible G-code socket; the frequent error is reversing the 24 V DC coil polarity, which prevents the mechanical flag from operating.

What maintenance or replacement will the RXM4AB1BD relay need over time?

The silver-nickel contacts are rated for 6 A at 277 V AC and 8 A at 28 V DC; replace the relay when contact resistance rises or the mechanical indicator fails to show actuation.

What is the first limit reached during sustained operation of the RXM4AB1BD relay?

The 1.1 W coil dissipation and the 8 A DC contact rating at 28 V are the limiting factors; continuous loads beyond either will cause overheating or contact wear first.
