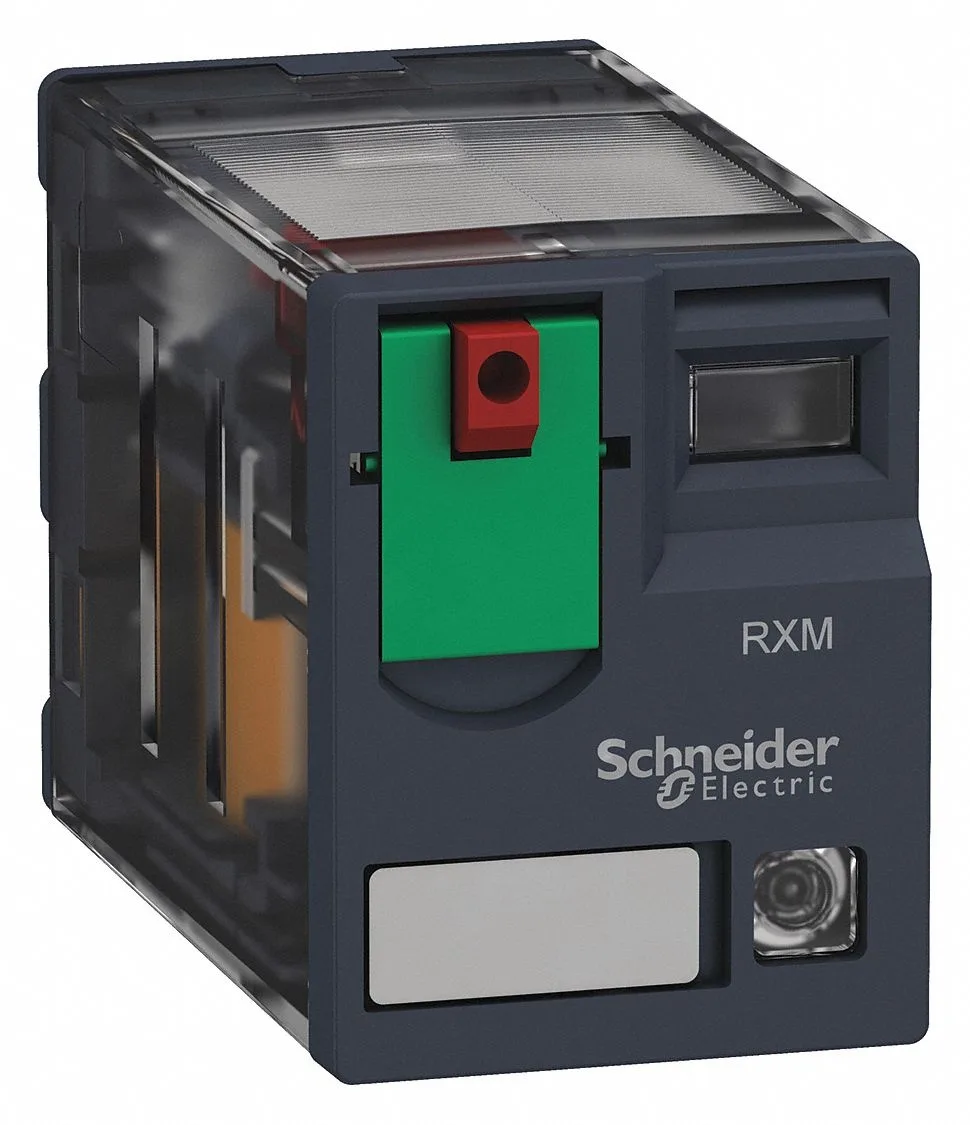

Schneider Electric RXM2AB2P7 Relay DPDT 12 A 230 V AC 8 Pin

SKU CH-NQG3-HEHP0

A plug-in DPDT relay rated 12 A at 230 V AC with LED indicator, lockable push-to-test and 8 flat pins

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • DPDT switching handles two circuits simultaneously
  • 12 A rating supports up to 250 V AC loads
  • 230 V AC coil fits standard control panels
  • LED indicator and mechanical flag show status instantly
  • Plug-in 8-pin base enables quick installation

Plug-in relay for 230 V AC control circuits

The Schneider Electric RXM2AB2P7 is a square-base general-purpose relay rated at 12 A with a DPDT contact form. It suits industrial automation panels, lighting control and motor-starter circuits where a 230 V AC coil drives plug-in switching.

Verify coil voltage and socket pinout before

Your panel must supply 230 V AC to the coil and accept an 8-pin flat-pin plug-in base with 0.09 in pin width. The enclosure is sealed and the relay body measures 1.57 in deep by 1.06 in high, so confirm the socket cut-out and wiring clearance match these dimensions.

LED indicator and lockable push-to-test aid

A built-in LED shows coil status at a glance while the mechanical flag and lockable push-to-test button let technicians verify contact operation without removing the relay. Contacts are rated 12 A at 250 V AC and 12 A at 28 V DC for resistive loads.

Highlights

  • DPDT switching handles two circuits simultaneously
  • 12 A rating supports up to 250 V AC loads
  • 230 V AC coil fits standard control panels
  • LED indicator and mechanical flag show status instantly
  • Plug-in 8-pin base enables quick installation

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Does the RXM2AB2P7 relay include a socket or must I buy the 8-pin base separately?

The relay has eight flat pins for plug-in mounting; a compatible socket is not included and must be purchased separately.

How do I choose between the 12 A 250 V AC rating and the 12 A 28 V DC rating for my circuit?

Use the 12 A 250 V AC rating for alternating-current loads up to 250 V and the 12 A 28 V DC rating for direct-current loads up to 28 V.

What does the 230 V AC coil voltage mean when the relay is installed in a control panel?

The coil requires a 230 V AC supply to operate; once energised the DPDT contacts switch up to 12 A at 250 V AC or 28 V DC.
