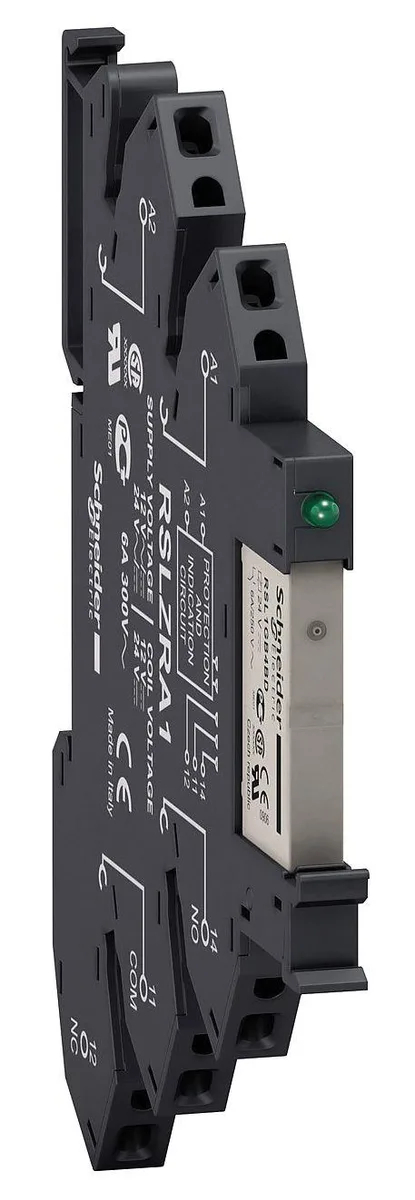

Schneider Electric RSL1PRFU slim relay transparent housing 5 pins DIN rail mount

Schneider Electric

Schneider Electric RSL1PRFU Slim Interface Relay 60VDC 6A 5Pin Transparent

SKU CH-PWRA-PFHKA

A slim interface relay with SPDT contacts rated 6 A at 28 V DC and 250 V AC, 60 V DC coil, spring terminals, LED indicator and DIN-rail mounting

  • TypeSlim Interface
  • Length4.000
  • ColorTransparent
  • Weight0.06
  • Slim 4.000 profile saves DIN-rail space
  • 6 A switching at 250 V AC or 28 V DC handles diverse loads
  • LED indicator gives instant coil-status visibility
  • Spring-terminal wiring speeds installation without tools
  • Enclosed transparent housing protects contacts and shows operation

Slim Interface Relay for DIN-Rail Panels

The Schneider Electric RSL1PRFU is a slim interface relay designed for DIN-rail mounting in control panels. Its 5-pin SPDT configuration with spring-terminal connections suits automation and switching tasks where space is limited. The transparent housing provides visible LED status indication for quick diagnostics. This relay fits builders assembling compact industrial or building-management systems.

Coil Voltage and Contact Ratings Define

The relay operates from a 60 V DC coil and switches up to 6 A at 250 V AC or 6 A at 28 V DC. Loads exceeding these voltage or current limits require a different switching device. The spring-terminal connection accepts solid or stranded wire without a screw driver, but the terminal pitch is fixed by the 5-pin flat-pin layout. Installers must verify that the control circuit supplies 60 V DC and that the load stays within the stated ratings.

5-Pin SPDT Layout Is the Decisive Specification

The single specification that decides fit is the 5-pin SPDT contact form with flat pins on 4.000 mm spacing. A project needing DPDT contacts, a different pin count or a screw-terminal base cannot use this module. The enclosed body measures 3.97 in deep, 3.09 in high and 0.24 in wide, so the panel cut-out and rail spacing must accommodate those dimensions.

Highlights

  • Slim 4.000 profile saves DIN-rail space
  • 6 A switching at 250 V AC or 28 V DC handles diverse loads
  • LED indicator gives instant coil-status visibility
  • Spring-terminal wiring speeds installation without tools
  • Enclosed transparent housing protects contacts and shows operation

Specifications

BrandSchneider Electric
ModelRSL1PRFU
TypeSlim Interface
Length4.000
ColorTransparent
Weight0.06

Questions about this item

Should I choose the 60 V DC coil version or a different voltage for my control circuit?

This relay has a 60 V DC coil, so select it only when your control signal is 60 V DC; other coil voltages are separate part numbers.

What does the 6 A contact rating mean when I wire it to a 250 V AC load?

The silver-alloy contacts are rated for 6 A at 250 V AC, so the relay can switch that current at mains voltage without exceeding its specification.

How does the spring-terminal connection affect wiring on a DIN rail?

Spring terminals accept stripped solid or ferruled wire without tools, speeding installation on the 0.24 in wide DIN-rail housing.
