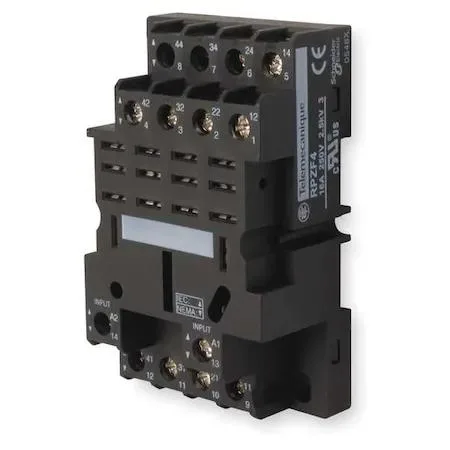

Gray square relay socket with 14 flat pins, finger-safe screw terminals, DIN rail mount, IP20 rated

Schneider Electric

Schneider Electric RPZF4 Relay Socket 16 A 14 Pin Finger Safe IP20

SKU CH-BFEZ-Q9VXM

A finger-safe 14-pin relay socket rated 16 A at 250 V with screw-clamp terminals and DIN-rail mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorGray
  • Finger-safe IP20 design protects against accidental contact
  • 14 flat pins and screw-clamp terminals ensure secure wiring
  • 16 A at 250 V AC rating handles demanding control circuits
  • DIN-rail and surface mounting options suit varied panel layouts
  • Operates reliably up to 131 °F in harsh environments

Relay Socket for Industrial Control

The Schneider Electric RPZF4 is a 14 pin relay socket rated at 16 A and 250 V AC. It is designed for mounting on DIN rail or flat surfaces inside control panels. The gray housing provides IP20 finger safe protection. Compatible relays include the Harmony RPM series.

Screw Clamp Wiring and Pin Layout

Electrical connections use screw clamp terminals that accept flat pins 0.18 in wide. The socket carries 14 terminals in a mixed arrangement for 4PDT contact form. Wiring access is from the elevator style front. Maximum operating temperature is 131 degrees F.

16 Ampere Contact Rating Decides Fit

The 16 A contact rating at 250 V AC is the single figure that determines whether this base suits your load. Circuits demanding higher current need a different socket. Builders who need more than 14 pins or a different pin shape must select another model.

Highlights

  • Finger-safe IP20 design protects against accidental contact
  • 14 flat pins and screw-clamp terminals ensure secure wiring
  • 16 A at 250 V AC rating handles demanding control circuits
  • DIN-rail and surface mounting options suit varied panel layouts
  • Operates reliably up to 131 °F in harsh environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorGray

Questions about this item

Which pin count matches my relay — 14 or another option?

This socket has 14 pins and 14 terminals, built for Harmony RPM series relays with a 4PDT contact form.

What does the 16 A rating mean when the socket is wired in a panel?

It supports 16 A at 250 V AC per contact, with screw-clamp terminals that accept flat pins 0.18 in wide for secure connections.

How does the IP20 rating limit where I can mount this socket?

IP20 gives finger-safe protection but no water resistance, so it must be installed inside an enclosure or cabinet on DIN rail or surface mount.
