Schneider Electric RPF2BBD 24V DC 30A DPDT Relay Transparent

SKU CH-YK7V-KRY94

Enclosed 24V DC relay with DPDT contacts rated 30 A at 250/277 V AC and DIN-rail or flange mounting

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • 30 A switching capacity for heavy loads
  • 24 V DC coil voltage for standard control circuits
  • DPDT contact form enables two-circuit control
  • DIN rail and top-flange mounting for flexible installation
  • Sealed transparent housing protects contacts and allows visual inspection

Enclosed Power Relay for Industrial Control

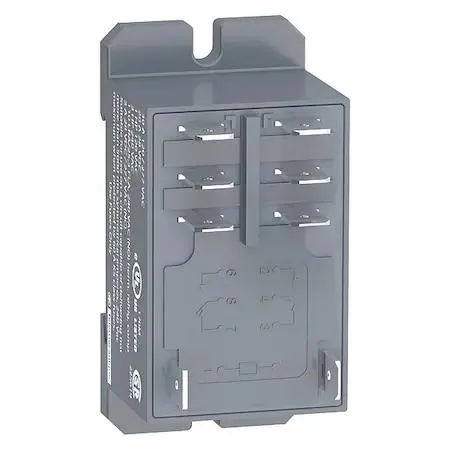

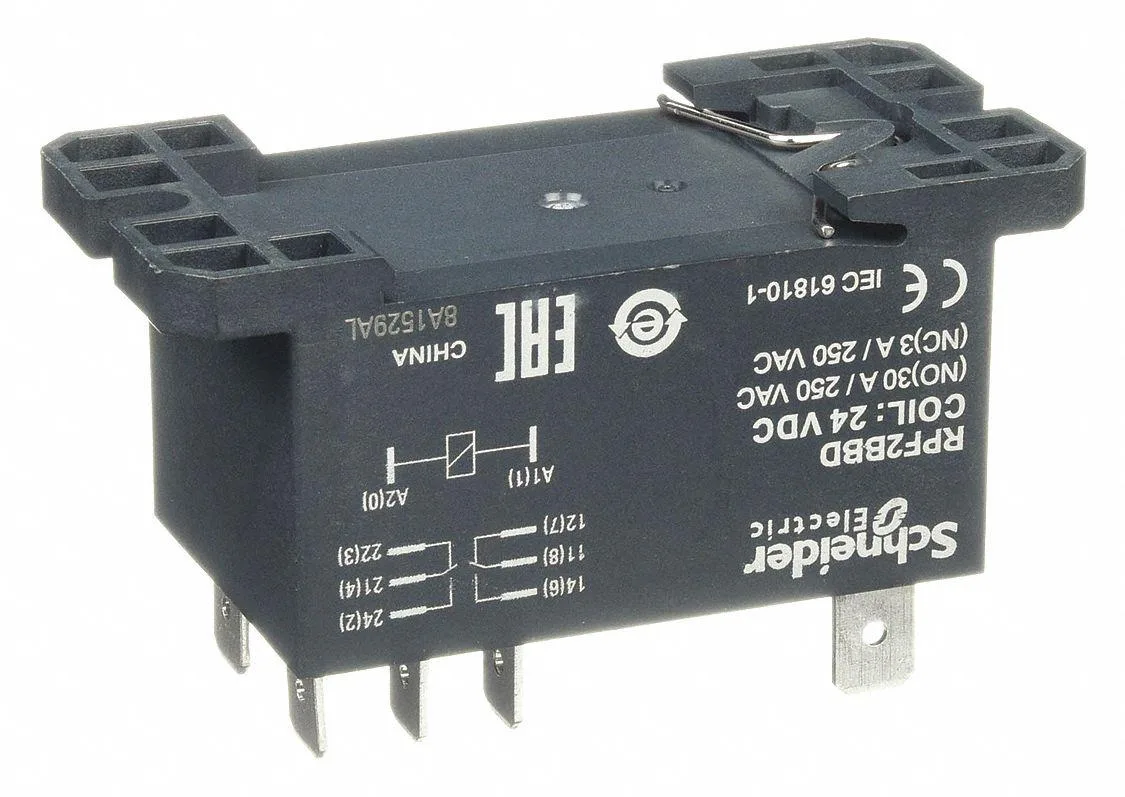

The Schneider Electric RPF2BBD is an enclosed power relay designed for DIN rail or top flange mounting in industrial automation panels. It operates on a 24V DC coil and provides DPDT contact switching for control circuits. The sealed housing and transparent cover allow visual inspection without exposure to the environment.

Screw Terminal Wiring and Secure Mounting

The relay uses 1/4 inch tab terminals with a 0.25 inch flat pin width across eight pins for straightforward screw-down wiring. The combined DIN rail and top flange mounting style offers flexible installation inside cabinets or on flat surfaces. No push-to-test button or status indicator is fitted, so external monitoring must be provided separately.

30 Amp Switching with Defined Load Limits

The normally open contacts handle 30 A at 250/277V AC and 25 A at 28V DC, while normally closed contacts are rated for 3 A at those same voltages. Motor loads up to 1 hp at 120V AC or 3 hp at 240V AC are supported. Applications requiring higher DC breaking capacity or auxiliary indication will need a different relay.

Highlights

  • 30 A switching capacity for heavy loads
  • 24 V DC coil voltage for standard control circuits
  • DPDT contact form enables two-circuit control
  • DIN rail and top-flange mounting for flexible installation
  • Sealed transparent housing protects contacts and allows visual inspection

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How often should the sealed DPDT contacts rated for 30 A at 250 V AC be inspected or replaced?

The relay is a sealed unit with no user-serviceable parts; replace the entire module if contact resistance rises or switching becomes unreliable.

What thermal limit appears first when the coil runs continuously at 24 V DC?

The coil is rated for continuous 24 V DC operation; the first limit reached will be the contact temperature rise at the 30 A AC or 25 A DC load rating.

How much heat does the relay dissipate when carrying 30 A all day?

At 30 A the contacts dissipate power equal to current squared times contact resistance; the sealed enclosure passes that heat to the DIN rail and surrounding panel air.
