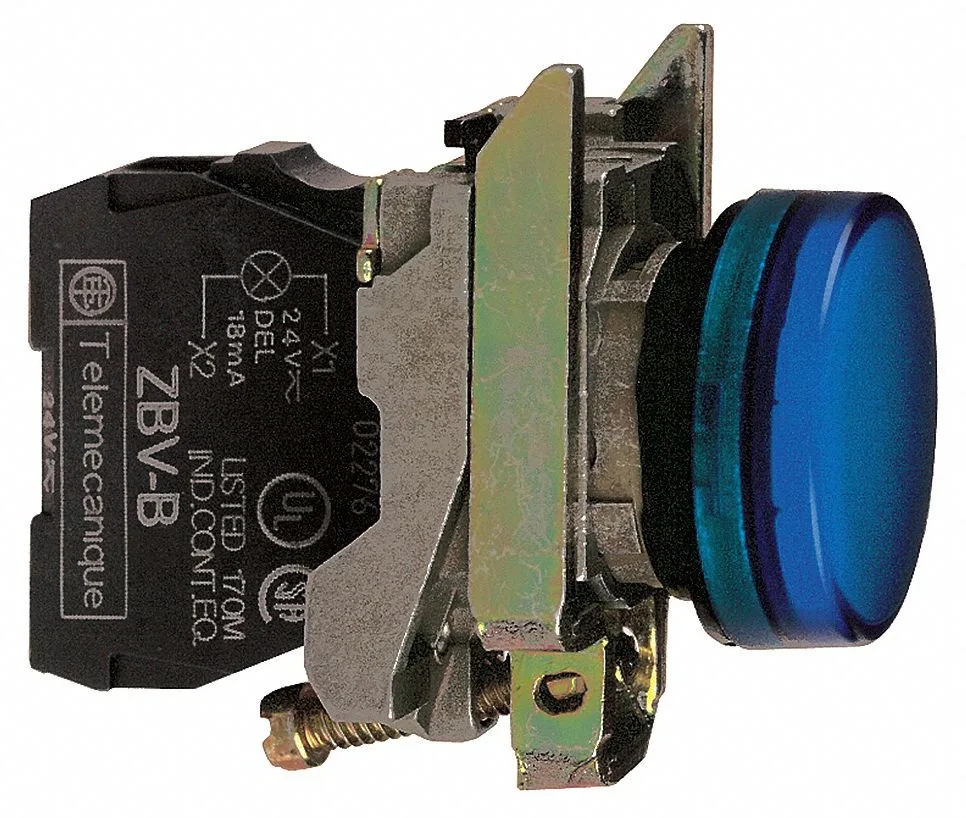

Schneider Electric round blue LED pilot light 22mm

Schneider Electric

Schneider Electric Pilot Light LED 24V Blue XB4BVB6 22mm

SKU CH-0TZT-1DBR0

A 24 V AC/DC blue LED pilot light with 22 mm metal body, screw-clamp terminals and IP66/IP67/IP69K sealing

  • TypeLight Switch
  • Size/Dimensions22mm
  • Color/FinishBlue
  • Color MappingBlue
  • 24V AC/DC LED pilot light for clear signalling
  • Blue 22mm round lens gives distinct visual status
  • IP66 IP67 IP69 IP69K ratings protect against water and dust
  • NEMA 13 4 4X enclosure suits harsh environments
  • Screw clamp terminals on metal body ensure secure wiring

Schneider Electric 22mm Pilot Light

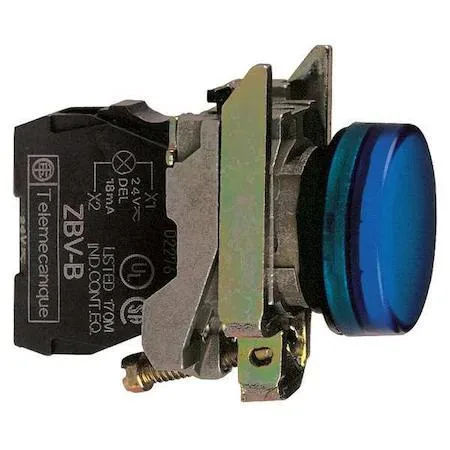

The Schneider Electric XB4BVB6 is a round 22mm LED pilot light designed for industrial control panels and machinery status indication. It operates on 24V AC/DC supply and features a blue lens for clear visual signalling in automation environments.

NEMA 13 and IP66/IP67/IP69K ratings

The metal body and plastic lens assembly meets NEMA 13, 4, 4X and IP66, IP67, IP69, IP69K standards for dust and water ingress protection. Screw clamp terminals provide secure wiring connections suitable for harsh industrial installations.

24V AC/DC full voltage LED module

This unit uses a full voltage LED lamp module requiring a direct 24V AC/DC supply without external resistors or transformers. Buyers needing other voltages or alternative lens colours must select a different part number.

Highlights

  • 24V AC/DC LED pilot light for clear signalling
  • Blue 22mm round lens gives distinct visual status
  • IP66 IP67 IP69 IP69K ratings protect against water and dust
  • NEMA 13 4 4X enclosure suits harsh environments
  • Screw clamp terminals on metal body ensure secure wiring

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Size/Dimensions22mm
Color/FinishBlue
Color MappingBlue

Questions about this item

How is the 22 mm pilot light mounted and which wiring step is often missed?

Insert the round body through a 22 mm panel cut-out and secure the metal retaining nut from behind; the step often missed is tightening both screw-clamp terminals onto the 24 V AC/DC supply wires before restoring power.

What part will need replacement after long service?

The integrated LED lamp module is not user-replaceable; when light output fades the complete pilot light unit must be swapped out.

Which environmental limit is reached first during continuous operation?

The 24 V AC/DC full-voltage lamp module determines thermal limits; sustained use at rated voltage keeps the sealed IP66/IP67/IP69/IP69K housing within its design temperature range.
