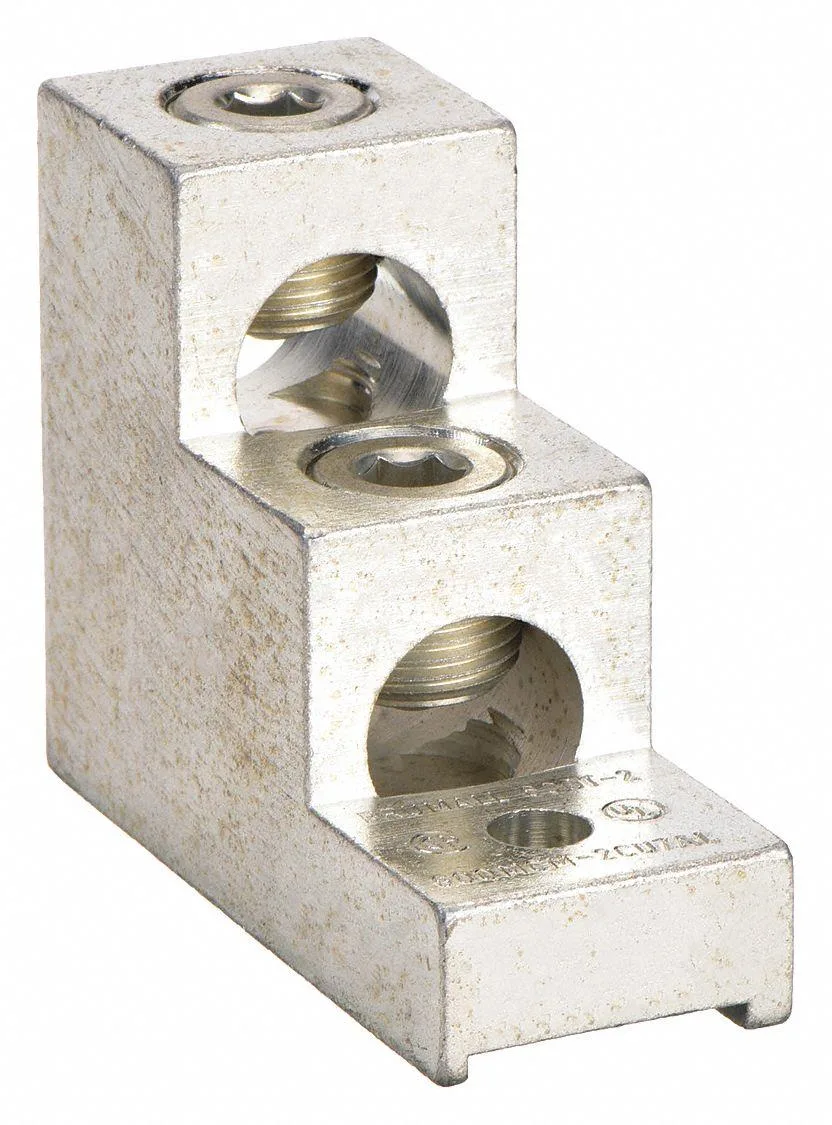

Aluminium mechanical lug, single 600 kcmil, 5.800 length, hex socket head

Schneider Electric

Schneider Electric Mechanical Lug Single 600 kcmil 5.800

SKU CH-A9X1-3QZN3

Single mechanical lug accepts stranded copper or aluminium conductors from 2 AWG up to 600 kcmil, rated 1,000 V and 131 °F with a hex-socket head and two 0.94 in mounting holes

  • Length5.800
  • TypeSingle
  • Single lug accepts 2 AWG to 600 kcmil copper conductors
  • Aluminium body rated for 1000 V and 131 °F operation
  • Hex socket head enables quick torque tightening
  • Two-hole tongue spaced at .94 in for secure mounting
  • 800 in length fits standard panel layouts

Single Mechanical Lug for Large Conductors

This Schneider Electric mechanical lug accepts stranded copper or aluminum conductors from 2 AWG up to 600 kcmil. The aluminum body uses a hex-socket head and provides two terminations for each of the two conductors. It is rated for 1,000 V maximum voltage and a 131 °F operating temperature.

Installers needing a single 600 kcmil termination

Electricians terminating large service conductors in panelboards or switchgear will find the 5.800 in length and two-hole mounting convenient. The lug is not suited for applications requiring more than two conductors per phase or for installations where a smaller maximum wire size is specified.

Maximum conductor size 600 kcmil

The decisive specification is the 600 kcmil maximum stranded copper wire size, which determines whether the lug fits the cable being used. If the project calls for a larger conductor or a different stud-hole pattern, another connector must be selected.

Highlights

  • Single lug accepts 2 AWG to 600 kcmil copper conductors
  • Aluminium body rated for 1000 V and 131 °F operation
  • Hex socket head enables quick torque tightening
  • Two-hole tongue spaced at .94 in for secure mounting
  • 800 in length fits standard panel layouts

Specifications

BrandSchneider Electric
Length5.800
TypeSingle

Questions about this item

What is the maximum operating temperature the lug can handle during continuous use?

The lug is rated for a maximum operating temperature of 131 Degrees F under sustained load.

How much power does the connector itself draw or dissipate when energized all day?

As a passive mechanical connector it draws no power and dissipates negligible heat during normal operation.

What conductor material and size range must already be on site for this lug to terminate correctly?

It accepts stranded copper or aluminum conductors from 2 AWG up to 600 kcmil with a hex-socket head.
