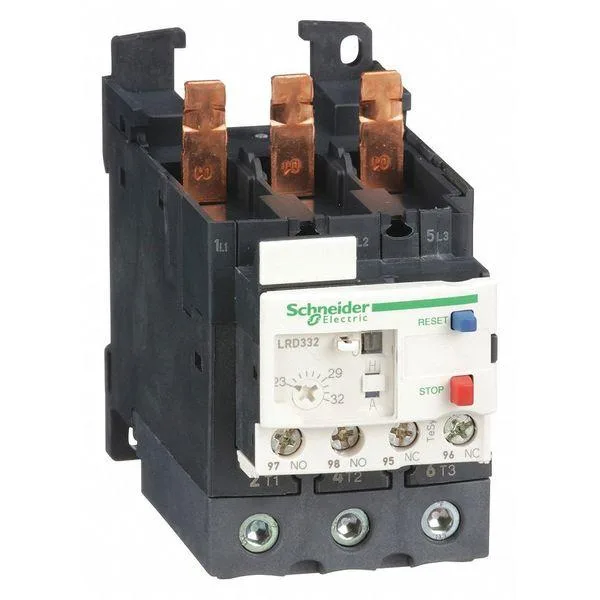

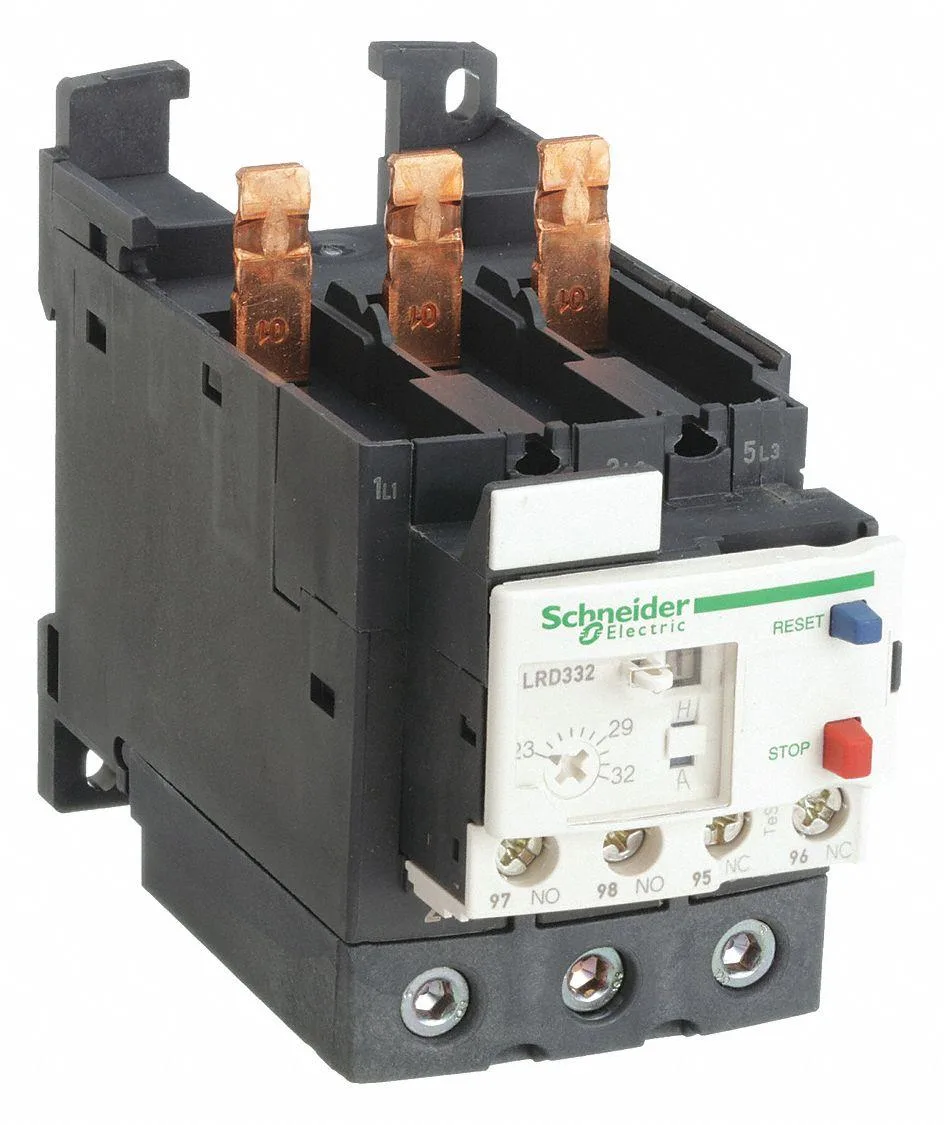

Transparent Schneider Electric LRD332 overload relay with screw terminals

Schneider Electric

Schneider Electric LRD332 Overload Relay 23-32A 690V video accessory

SKU CH-JHVG-WNJAX

Thermal overload relay protects three-phase motors with a 23-32 A trip range and 690 V AC rating

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Thermal overload protection for 3-phase motors up to 32 A
  • Adjustable current range from 23 A to 32 A matches load requirements
  • Rated for 690 V AC maximum voltage in industrial circuits
  • 1NO/1NC auxiliary contacts provide trip signalling and control interlocks
  • Direct contactor mounting with screw clamp terminals simplifies installation

Schneider Electric LRD332 Overload Relay

The Schneider Electric LRD332 is a thermal overload relay rated for 23 A minimum and 32 A maximum current at 690 V AC. It provides overload protection for three-phase motor circuits in industrial control panels. The unit mounts directly to a compatible TeSys Deca contactor and uses screw clamp terminals for secure wiring.

Check contactor compatibility and wiring space

Verify that the existing contactor belongs to the TeSys Deca series so the relay mounts directly without an adapter. Confirm the panel has enough depth for the relay body and that screw clamp terminals suit the wire gauge used in the installation. Ensure the control circuit can accommodate the 1NO/1NC auxiliary contact configuration for trip signalling.

Replaces worn or undersized thermal relays

This relay replaces a failed or incorrectly rated thermal unit on the same contactor series. The jump is worth it when the motor load has changed and the previous relay no longer matches the 23 A to 32 A setting range or when a manual reset and Trip Class 10A response are required for the application.

Highlights

  • Thermal overload protection for 3-phase motors up to 32 A
  • Adjustable current range from 23 A to 32 A matches load requirements
  • Rated for 690 V AC maximum voltage in industrial circuits
  • 1NO/1NC auxiliary contacts provide trip signalling and control interlocks
  • Direct contactor mounting with screw clamp terminals simplifies installation

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What does the Schneider Electric LRD332 overload relay include and what must be purchased separately?

The relay ships as a single unit with screw-clamp terminals and direct-to-contactor mounting for TeSys Deca contactors. No auxiliary contacts, contactors, or wiring accessories are included.

How do I choose between the 23 A minimum and 32 A maximum current settings?

Set the dial between 23 A and 32 A to match the motor full-load current; the relay trips at 10 A trip-class curves to protect against sustained overloads.

What does the 690 V AC rating mean when the relay is installed in a panel?

The 690 V AC maximum voltage rating allows the relay to be applied on three-phase supplies up to 690 V, with three poles providing overload protection for each phase.
