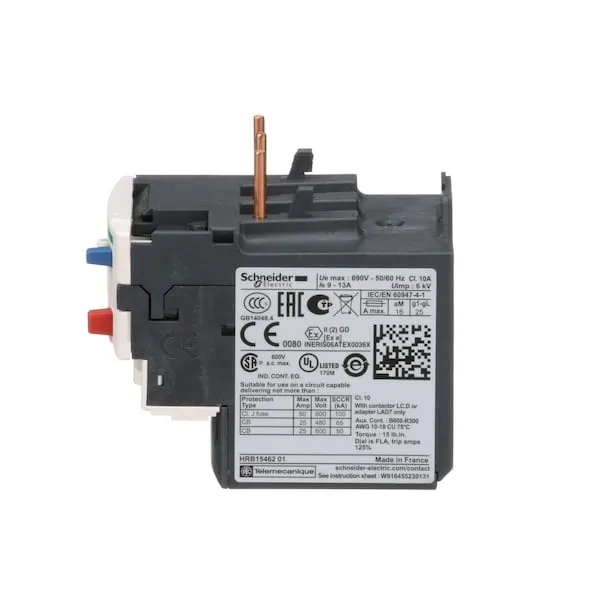

Schneider Electric LRD16 Overload Relay 9-13 A Class 10A

SKU CH-VJZP-8ZRH6

Protects motors from 9 to 13 A overloads with Class 10A thermal trip and fits contactors up to 38 A

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Adjustable 9–13 A trip range protects motor windings
  • Class 10A calibration ensures fast overload response
  • Compatible with TeSys D contactors up to 38 A
  • Multi-standard certified for IEC, UL, CSA, CCC, EAC, ATEX, Marine
  • Differential thermal detection disconnects power on overcurrent

Schneider Electric LRD16 Overload Relay 9-13 A

This Schneider Electric LRD16 overload relay provides adjustable thermal protection for electric motors. It is calibrated to Class 10A and covers a trip current range of 9 to 13 amperes. The unit integrates directly with TeSys D contactors rated from 9 through 38 amperes to form a complete motor starter. It carries multi-standard certifications including IEC, UL, CSA, CCC, EAC, ATEX and Marine approvals.

Panel builders and maintenance engineers

This relay suits installations that require a 9 to 13 A trip setting on a Class 10A curve with a transparent housing for visual inspection. It is not intended for circuits needing a higher trip range or a different trip class. Buyers needing protection for larger motors or alternative trip characteristics should select a different model.

Adjustable 9-13 A trip current Class 10A

The single specification that determines fit is the adjustable trip current range of 9 to 13 amperes calibrated to Class 10A. This range must match the motor full-load current and the required overload curve. Verify the motor nameplate current falls within this window before purchase.

Highlights

  • Adjustable 9–13 A trip range protects motor windings
  • Class 10A calibration ensures fast overload response
  • Compatible with TeSys D contactors up to 38 A
  • Multi-standard certified for IEC, UL, CSA, CCC, EAC, ATEX, Marine
  • Differential thermal detection disconnects power on overcurrent

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

How do I confirm the LRD16 overload relay is protecting the motor correctly after wiring it to a TeSys D contactor?

The relay trips when current exceeds the 9 to 13 A adjustable setting, calibrated to Class 10A, and the contactor then disconnects power to the motor.

What comes with the Schneider Electric LRD16 and what must I purchase separately to complete the motor starter?

The overload relay itself is supplied; a compatible TeSys D contactor rated 9 A through 38 A must be bought separately.

Which TeSys D contactor rating should I pair with the 9-13 A LRD16 overload relay?

Any TeSys D contactor from 9 A up to 38 A can be used; match the contactor to your motor's full-load current.
