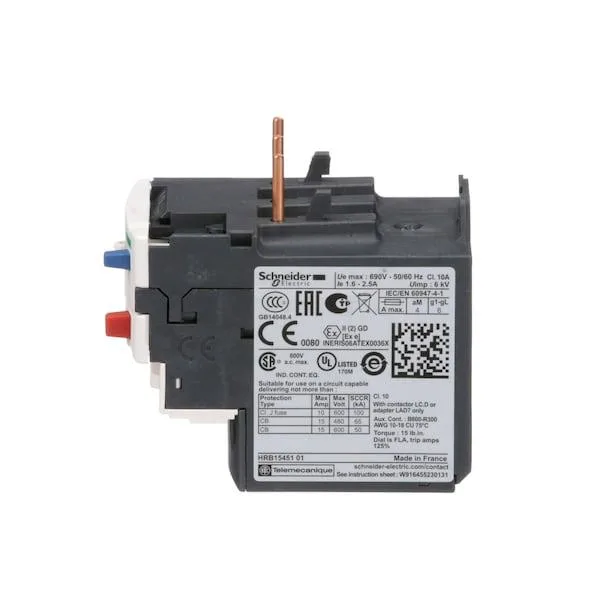

Transparent Schneider Electric LRD07 overload relay, compact rectangular form, screw terminals visible

Schneider Electric

Schneider Electric LRD07 Overload Relay 1.6-2.5 A

SKU CH-PHEN-NCTJ1

Protects three-phase motors with a 1.6 to 2.5 A thermal trip range, manual reset and screw-clamp terminals

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Protects motors from 1.6 to 2.5 A overloads
  • Thermal trip class 10A cuts power fast
  • 690 V AC rating suits industrial panels
  • Screw-clamp terminals give secure wiring
  • Manual reset lets you confirm fault clearance

Schneider Electric LRD07 Overload Relay

The Schneider Electric LRD07 is a thermal overload relay designed for motor protection in industrial control panels. It suits maintenance engineers and panel builders who need reliable overload detection for three-phase circuits up to 690 V AC.

Check contactor compatibility and wiring

Verify that the existing contactor accepts direct mounting and that the screw clamp terminals match the wire gauges used in the panel. Confirm the control circuit can accommodate a manual reset relay with 1NO and 1NC auxiliary contacts before ordering.

Transparent housing and direct contactor mounting

The transparent cover allows visual inspection of the trip indicator without removing the relay. Direct mounting to a compatible TeSys Deca contactor reduces panel space and wiring time, while screw clamp terminals provide secure connections that resist vibration in daily operation.

Highlights

  • Protects motors from 1.6 to 2.5 A overloads
  • Thermal trip class 10A cuts power fast
  • 690 V AC rating suits industrial panels
  • Screw-clamp terminals give secure wiring
  • Manual reset lets you confirm fault clearance

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What comes with the LRD07 overload relay and what must be purchased separately?

The relay is supplied as a single unit with 1NO/1NC auxiliary contacts and screw-clamp terminals; a matching TeSys Deca contactor for direct mounting must be bought separately.

Which current setting version should I choose for my application?

This model covers a 1.6 A to 2.5 A adjustment range with Trip Class 10A; select it only if your motor full-load current falls inside that window.

What does the 690 V AC rating mean when the relay is installed in a panel?

It is the maximum operational voltage for the main power circuit; the relay can protect motors on supplies up to 690 V AC when mounted on a compatible contactor.
