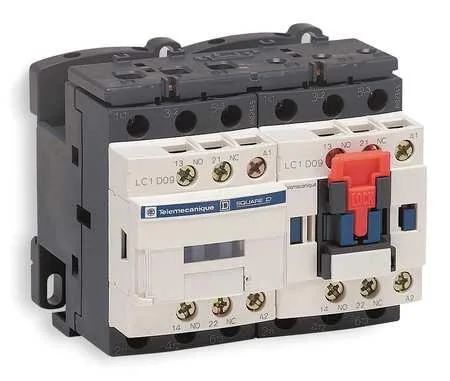

Schneider Electric magnetic contactor, compact cube, light grey enclosure

Schneider Electric

Schneider Electric LC2D09U7V 3-Pole 240V 9A Magnetic Contactor

SKU CH-ZGV8-TRWKJ

A 3-pole IEC magnetic contactor rated 9 A inductive and 20 A resistive at 240 V AC with reversing operation and 1NO/1NC auxiliary contacts

  • Type3" Harsh Environment, Hook-and-Loop Closure
  • Switches inductive loads up to 9 A with 3-pole IEC contactor
  • Handles resistive loads up to 20 A for heating circuits
  • Operates on 240 V AC coil at 50/60 Hz
  • Controls motors up to 7.5 hp at 575 V three-phase
  • Compact 3.54 in cube fits tight panel space

Electrical Rating

This Schneider Electric LC2D09U7V is a three-pole IEC magnetic contactor rated for 9 A inductive and 20 A resistive full-load current at 240 V AC. It operates on 50/60 Hz supplies and provides motor control up to 7 1/2 hp at 575 V three-phase. The unit includes a built-in electrical interlock and a 1NO/1NC auxiliary contact block.

Coil Voltage

The contactor coil requires a 240 V AC control signal, which is the single specification that determines compatibility with your control circuit. Supplying a different coil voltage will prevent reliable operation or damage the device. Verify that your control voltage matches exactly before installation.

Application Fit

This contactor suits motor starters, lighting banks and resistive heating loads where a 240 V AC coil and 9 A inductive rating meet the design requirements. It is not for buyers who need a different coil voltage, higher current ratings, an enclosed housing or DC coil operation.

Highlights

  • Switches inductive loads up to 9 A with 3-pole IEC contactor
  • Handles resistive loads up to 20 A for heating circuits
  • Operates on 240 V AC coil at 50/60 Hz
  • Controls motors up to 7.5 hp at 575 V three-phase
  • Compact 3.54 in cube fits tight panel space

Specifications

BrandSchneider Electric
ModelLC2D09U7V
Type3" Harsh Environment, Hook-and-Loop Closure

Questions about this item

What does the 9 A inductive rating mean for the loads I can switch?

The contactor is rated for 9 A full-load inductive current and 20 A resistive current, so it can handle motor loads up to the listed horsepower ratings at 120 V, 240 V, 208 V, 480 V and 575 V.

What does the 240 V AC coil voltage and 50/60 Hz rating cap in practice?

The coil operates on 240 V AC at either 50 Hz or 60 Hz, so the contactor will pull in and hold reliably on standard mains frequencies without needing a separate DC supply.

Will the 3.54 in cube fit in my panel and how does it mount?

The unit measures 3.54 in high, wide and deep, has no enclosure and includes an electrical interlock, so it is designed for panel mounting inside a suitable enclosure with standard DIN rail or screw fixing.
