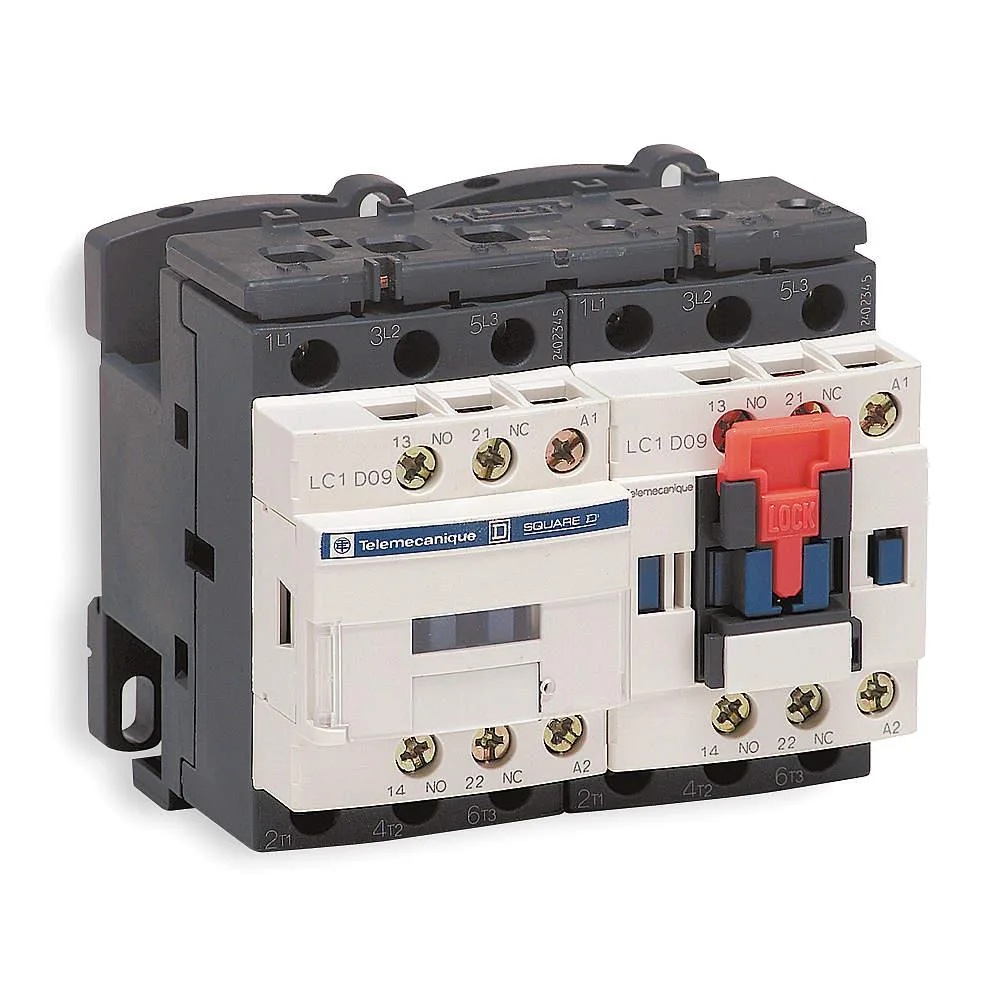

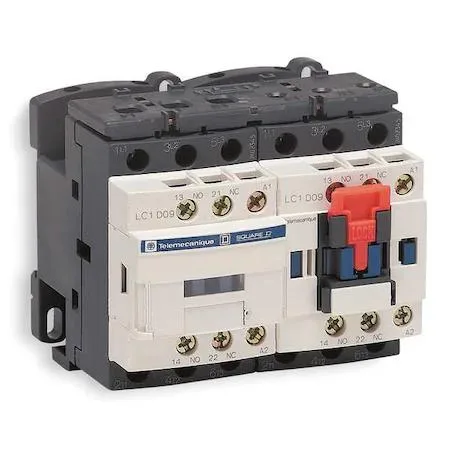

Transparent IEC reversing contactor, DIN-rail mount, screw terminals

Schneider Electric

Schneider Electric LC2D09BD IEC Magnetic Contactor 24V DC 3P Reversing 9A

SKU CH-3W4H-VW8QT

A 24V DC reversing IEC contactor rated 9A inductive and 20A resistive with 1NO/1NC auxiliary contacts

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Reversing three-pole contactor handles forward and reverse motor control
  • 24 V DC coil voltage suits low-voltage control circuits
  • 9 A inductive current rating matches typical small-motor loads
  • Screw-clamp terminals give secure wiring without special tools
  • DIN-rail or plate mounting fits standard industrial enclosures

Industrial Reversing Contactor

The Schneider Electric LC2D09BD is a three-pole IEC magnetic contactor rated for 9 A inductive and 20 A resistive loads. It operates from a 24 V DC coil and provides reversing capability with one normally open and one normally closed auxiliary contact. The unit suits motor control panels, conveyor systems and compact automation cabinets.

DIN Rail Mounting and Wiring

Screw clamp terminals accept solid or stranded conductors for secure connections without special tooling. The contactor clips onto standard DIN rail or can be plate mounted, leaving panel space free for overload relays or timers. A 240 V AC three-phase motor up to 2 hp can be switched directly.

Sustained Load Behaviour

Under continuous operation the coil draws steady DC current while the main contacts carry full rated current without derating. The TeSys Deca series construction maintains consistent contact pressure over millions of cycles, reducing temperature rise during extended duty. Heat dissipates through the open-frame body into the enclosure airflow.

Highlights

  • Reversing three-pole contactor handles forward and reverse motor control
  • 24 V DC coil voltage suits low-voltage control circuits
  • 9 A inductive current rating matches typical small-motor loads
  • Screw-clamp terminals give secure wiring without special tools
  • DIN-rail or plate mounting fits standard industrial enclosures

Specifications

BrandSQUARE D
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What is the maximum inductive load the LC2D09BD can switch continuously without overheating?

The contactor is rated for a full-load inductive current of 9 A; sustained operation at or near that value will be the first thermal limit reached.

How much heat and noise does the 24 V DC coil produce when the contactor stays energised all day?

The DC coil dissipates only a few watts, so the unit runs silently and adds minimal heat to the enclosure during continuous duty.

Which mounting hardware and control supply must already be in place for this contactor to operate?

It mounts on a standard DIN rail or flat plate using screw-clamp terminals and requires a 24 V DC source to energise the coil.
