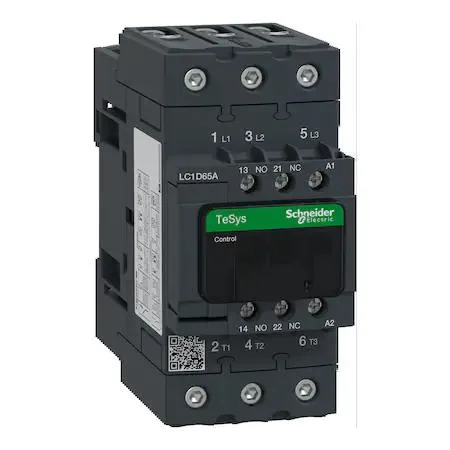

Compact grey contactor with transparent cover and screw terminals

Schneider Electric

Schneider Electric LC1D65AG7 Contactor 120V AC 3P 65A

SKU CH-BHVE-9B8SW

Three-pole IEC contactor rated 65A/440V AC-3 for motor control up to 30kW at 400V with 120V AC coil, 1NO+1NC mirror-certified auxiliaries and EverLink power terminals

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Controls motors up to 65 A AC-3 duty
  • 120 V AC coil with 1 NO + 1 NC auxiliary contacts
  • Rated 20 HP at 208 V, 40 HP at 480 V, 50 HP at 600 V
  • SCCR 100 kA with Class J fuse or 110 A breaker
  • Compact 55 mm width, DIN-rail mount, operates to 60 °C

Motor control contactor 65A

This Schneider Electric TeSys Deca contactor handles three-phase motor loads up to 65 amperes at 440 volts AC-3 duty. It delivers 30 kilowatts at 400 volts and is rated for 20 horsepower at 200 to 208 volts, 20 horsepower at 240 volts, 40 horsepower at 480 volts and 50 horsepower at 600 volts. The unit operates on a 120 volt 60 hertz AC coil.

Coil voltage and mounting check

Verify that your control circuit supplies 120 volts AC at 60 hertz to match the coil rating. Ensure the DIN rail or panel provides space for the 55 millimetre width and that the ambient temperature will not exceed 60 degrees Celsius. Confirm the operating rate stays within 3600 cycles per hour for reliable service.

Built-in auxiliaries and EverLink terminals

One normally open and one normally closed auxiliary contact are included, with the NC contact mirror certified for safety circuits. EverLink BTR screw connectors handle power wiring while screw clamp terminals serve control connections. These integrated features reduce the need for separate accessory blocks in many starter assemblies.

Highlights

  • Controls motors up to 65 A AC-3 duty
  • 120 V AC coil with 1 NO + 1 NC auxiliary contacts
  • Rated 20 HP at 208 V, 40 HP at 480 V, 50 HP at 600 V
  • SCCR 100 kA with Class J fuse or 110 A breaker
  • Compact 55 mm width, DIN-rail mount, operates to 60 °C

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Does the LC1D65AG7 contactor ship with any extra cables or mounting hardware, or do I need to buy them separately?

The contactor is supplied with a 120 VAC 60 Hz coil and built-in 1NO+1NC auxiliary contacts. Power connections use EverLink BTR screw connectors and control uses screw clamp terminals; no extra cables or mounting brackets are included.

The listing mentions several horsepower ratings — which one should I match to my motor?

Choose the rating that matches your supply voltage and motor horsepower: 20HP at 200–208VAC, 20HP at 240VAC, 40HP at 480VAC or 50HP at 600VAC three phase.

What does the 65A AC-3 rating mean when the contactor is installed in a motor starter?

It means the contactor can reliably switch motor loads up to 65A at 440V AC-3 (30kW at 400V) for up to 3600 cycles per hour in ambient temperatures up to 60°C.
