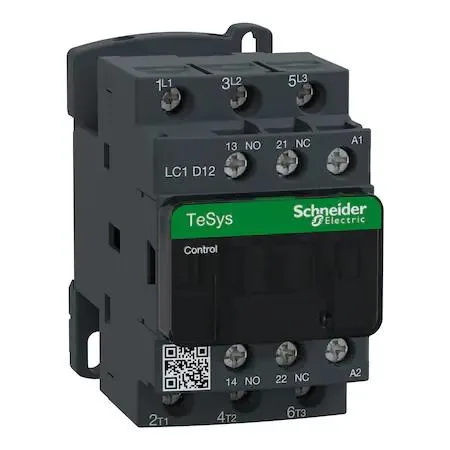

Compact grey contactor with DIN-rail clips and screw terminals

Schneider Electric

Schneider Electric LC1D12G7 120VAC 3P 12A Contactor

SKU CH-41JB-1B72W

Three-pole contactor switches motors up to 12 A with a 120 V AC coil, screw terminals and built-in auxiliary contacts

  • Type3" Harsh Environment, Hook-and-Loop Closure
  • ColorTransparent
  • Controls motors up to 12 A / 690 V AC-3 with 5.5 kW at 400 V
  • Built-in 1 NO + 1 NC auxiliary contacts with mirror-certified NC for safety circuits
  • 120 V 50/60 Hz AC coil simplifies panel wiring across regions
  • Compact 45 mm width fits dense DIN-rail or screw-mounted layouts
  • High short-circuit ratings: 85 kA with 480 V/35 A breaker, 100 kA with 600 V/30 A Class J/CC fuse

Schneider Electric 12A 3-Pole Contactor

This Schneider Electric TeSys Deca contactor is a 3-pole non-reversing IEC magnetic starter rated for 12A AC-3 duty at up to 690V. It is built for motor control applications up to 5.5kW at 400V and suits industrial automation panels needing reliable switching. The unit operates on a 120VAC 50/60Hz coil and mounts on standard DIN rail or via screw fixing.

12A AC-3 rating with 5.5kW motor capacity

The contactor comfortably handles three-phase motors rated at 3HP for 200-208VAC and 240VAC, 7.5HP at 480VAC, and 10HP at 600VAC. It supports operating rates up to 3600 cycles per hour in environments reaching 60°C. High fault-current withstand is achieved with an 85kA SCCR using a 35A breaker at 480VAC or 100kA SCCR with a 30A Class J or CC fuse at 600VAC.

45mm compact width with screw clamp terminals

A narrow 45mm profile saves panel space while screw clamp terminals secure both power and auxiliary circuits. One normally open and one normally closed auxiliary contact are built in, with the NC contact mirror certified for safety circuits. Multi-standard certification including IEC, UL, CSA, CCC, EAC and Marine allows broad regulatory acceptance across installations.

Highlights

  • Controls motors up to 12 A / 690 V AC-3 with 5.5 kW at 400 V
  • Built-in 1 NO + 1 NC auxiliary contacts with mirror-certified NC for safety circuits
  • 120 V 50/60 Hz AC coil simplifies panel wiring across regions
  • Compact 45 mm width fits dense DIN-rail or screw-mounted layouts
  • High short-circuit ratings: 85 kA with 480 V/35 A breaker, 100 kA with 600 V/30 A Class J/CC fuse

Specifications

BrandSchneider Electric
ModelLC1D12G7
Type3" Harsh Environment, Hook-and-Loop Closure
ColorTransparent

Questions about this item

Will the 45 mm wide contactor share a DIN rail with my existing 45 mm components?

The unit is 45 mm wide and mounts on standard DIN rail, so it aligns with other 45 mm wide devices on the same rail.

How can I verify the 120 VAC coil is operating correctly after wiring?

Apply 120 VAC 50/60 Hz to the coil terminals; the main 3-pole contacts should close and the built-in 1NO+1NC auxiliary contacts will change state, confirming operation.

Does the package include the 120 VAC coil and auxiliary contacts, or must they be ordered separately?

The contactor is supplied with the 120 VAC 50/60 Hz coil already fitted and includes one normally open and one normally closed auxiliary contact built in.
