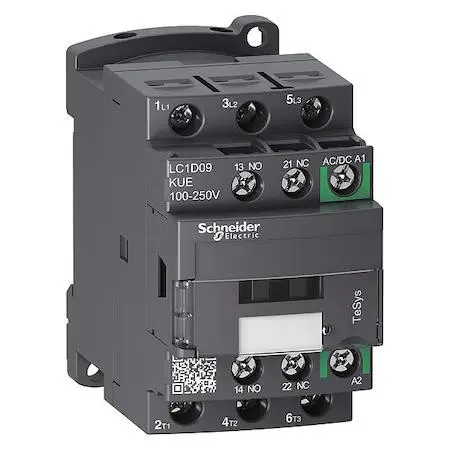

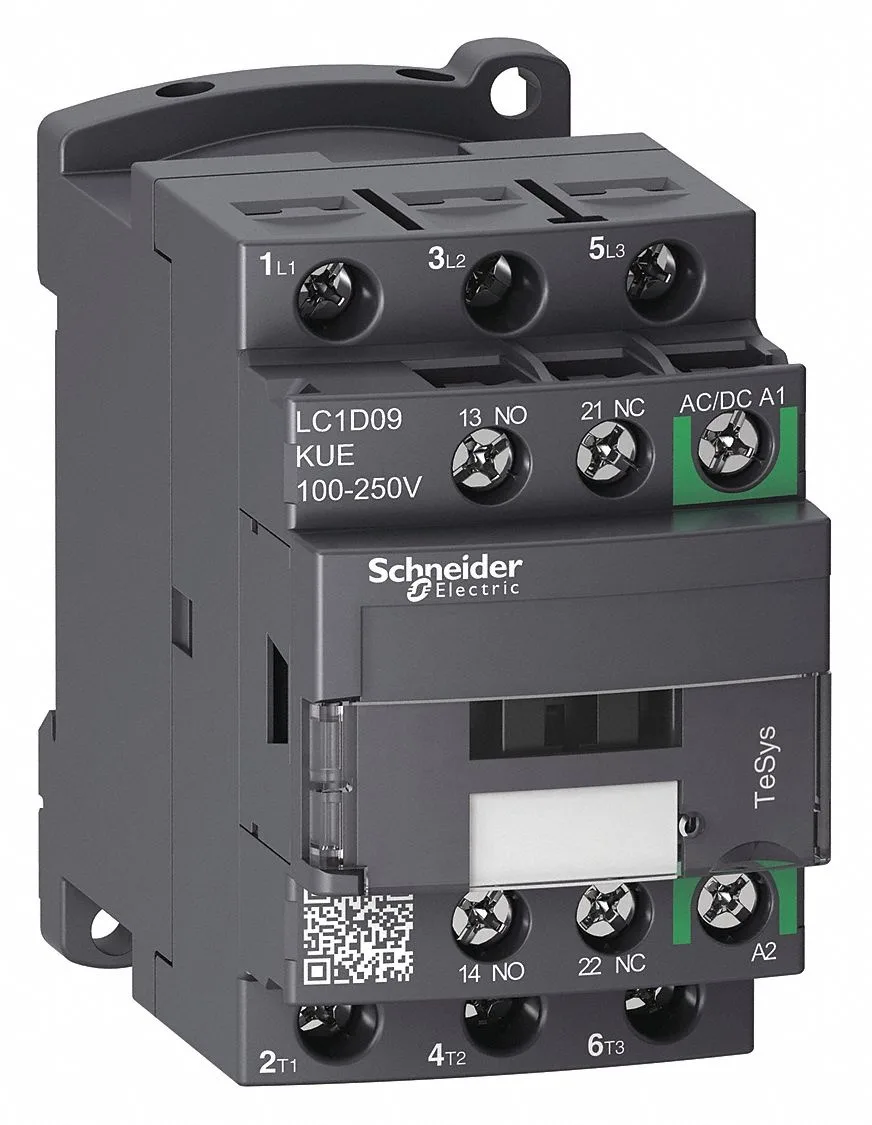

Schneider Electric LC1D09KUE Contactor 9A 100-250V AC/DC
A 9 A IEC magnetic contactor with 100–250 V AC/DC coil, 1 NO/1 NC auxiliary, and DIN-rail mounting
- Switches 9 A inductive loads reliably
- Handles 20 A resistive current capacity
- Operates on 100-250 V AC/DC coil voltage
- Mounts on DIN rail or plate easily
- Uses screw clamp terminals for secure wiring
IEC 9 A Contactor
The Schneider Electric LC1D09KUE is a three-pole IEC magnetic contactor rated for 9 A inductive and 20 A resistive loads. It suits motor-starting and power-switching duties in industrial control panels and machinery.
Wide-Range 100-250 V Coil
The coil operates on 100-250 V AC or DC, replacing contactors limited to a single coil voltage. The change is worth it when supply voltage varies or when standardising spares across sites with mixed control voltages.
Compact DIN-Rail Mount
At 3.03 in high and 1.77 in wide, the TeSys Deca body fits dense DIN-rail assemblies and leaves room for wiring. It handles 9 A motor loads continuously; it runs out above that inductive rating or when a reversing function is required.
Highlights
- Switches 9 A inductive loads reliably
- Handles 20 A resistive current capacity
- Operates on 100-250 V AC/DC coil voltage
- Mounts on DIN rail or plate easily
- Uses screw clamp terminals for secure wiring
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What DIN rail width and panel spacing does the 1.77 in wide contactor need for mounting?
It mounts on DIN rail or a plate; the unit is 1.77 in wide and 3.03 in high, so allow that clearance in the enclosure.
Which terminals accept the coil supply and how should they be wired?
The coil operates on 100-250V AC/DC; connect the supply to the designated coil terminals using the screw clamp terminals provided.
When should the 9 A inductive-rated main contacts be inspected or replaced?
Inspect the main contacts periodically; replace them if erosion or pitting appears, since they are rated for 9 A inductive and 20 A resistive loads.
