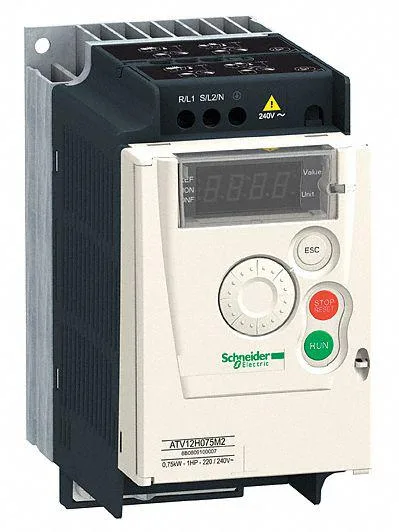

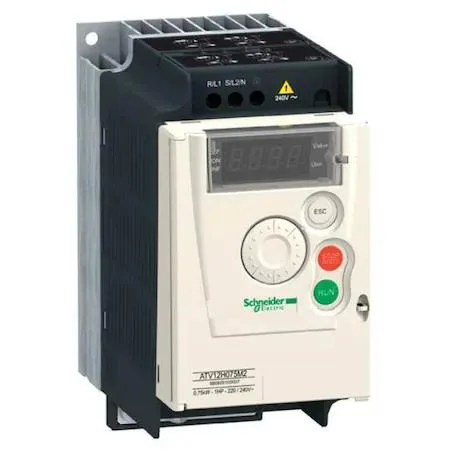

Compact beige industrial drive with front panel controls and ventilation slots

Schneider Electric

Schneider Electric ATV12H075M2 1 HP 230VAC Variable Frequency Drive

SKU CH-Y2K1-315RQ

Controls single-phase 200-240 VAC input to three-phase 0.5-400 Hz output at 1 hp and 4.2 A in a NEMA 1 enclosure

  • Length7.300
  • TypeBuilding Cable
  • 1 HP motor control for industrial automation
  • Single-phase 230 VAC input simplifies installation
  • Three-phase output enables standard motor use
  • Adjustable 0.5 to 400 Hz frequency range
  • NEMA 1 enclosure protects drive internals

Schneider Electric ATV12H075M2 VFD

This Schneider Electric ATV12H075M2 variable frequency drive delivers 1 hp maximum output power for single-phase 230 VAC supply networks. It converts the input to three-phase output voltage ranging from 200 to 240 VAC with a 4.2 A current rating. The NEMA 1 enclosure suits indoor industrial installations where basic protection is required.

Altivar single-to-three phase conversion

The drive accepts single-phase AC input at 50 or 60 Hz and produces three-phase output for standard induction motors. Output frequency is adjustable from 0.5 to 400 Hz, allowing wide speed control range. This topology lets users run three-phase motors on single-phase mains without a separate phase converter.

4.2 A output current rating

The 4.2 A maximum output current determines which motor loads the drive can support. Match this figure to the motor nameplate full-load current before purchase. Builders needing higher current capacity must select a larger frame size.

Highlights

  • 1 HP motor control for industrial automation
  • Single-phase 230 VAC input simplifies installation
  • Three-phase output enables standard motor use
  • Adjustable 0.5 to 400 Hz frequency range
  • NEMA 1 enclosure protects drive internals

Specifications

BrandSCHNEIDER ELECTRIC
Length7.300
TypeBuilding Cable

Questions about this item

How often should the internal cooling fan of this ATV12H075M2 drive be inspected or replaced?

The drive uses a 4.2 A rated output; fan inspection intervals depend on ambient temperature and duty cycle rather than a fixed schedule.

What thermal limit is reached first when the drive runs continuously at 4.2 A output?

Continuous 4.2 A operation at 200-240 V AC raises heatsink temperature until the built-in overtemperature protection trips.

What is the typical heat dissipation and fan noise level when this drive operates all day at full load?

At 1 hp output the drive loses power as heat inside its NEMA 1 enclosure; the internal fan runs whenever the heatsink temperature rises above its threshold.
