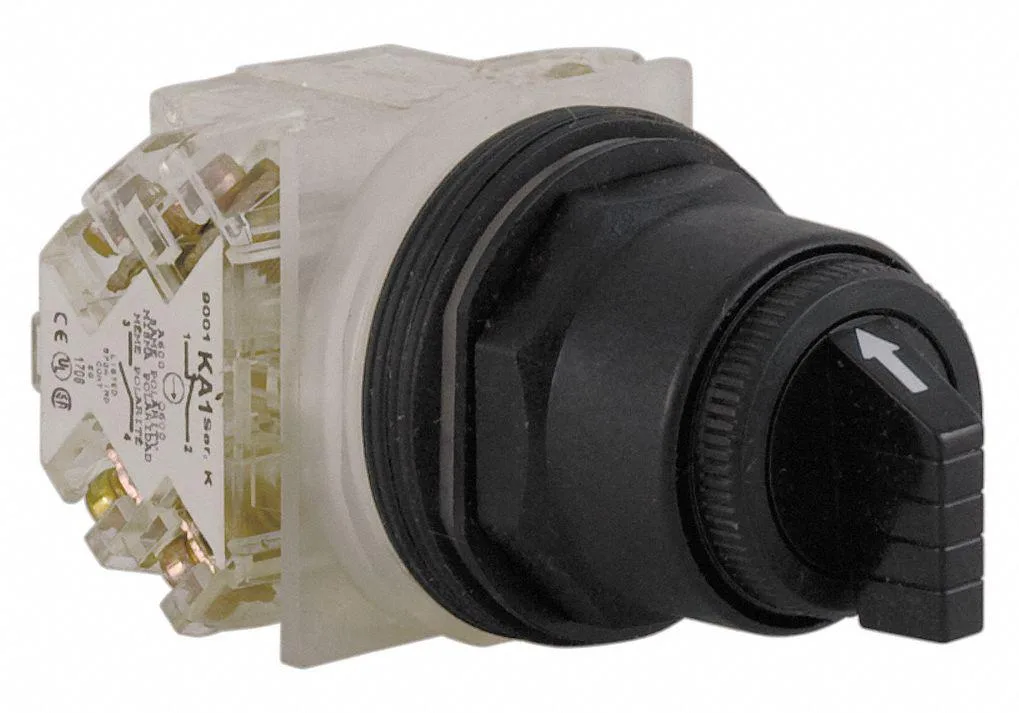

Schneider Electric 9001SKS43BH2 30 mm 3 position selector switch
A 30 mm three-position lever selector switch with maintained action, DPDT contacts rated 10 A at 600 V AC, IP66 and NEMA 4X enclosure
- 3-position maintained action gives flexible control
- 30 mm mounting fits standard panels
- DPDT contacts rated 10 A at 600 V AC
- IP66 and NEMA 4X seal out dust and water
- Polycarbonate lever and plastic bezel resist impact
Industrial control selector
The Schneider Electric 9001SKS43BH2 is a 30 mm three-position selector switch built for industrial control panels. It uses a maintained lever action at every position and provides a DPDT contact form rated at 10A at 600V AC. The operator head and bezel are plastic with a chrome finish, and the unit carries NEMA 12, 13, 3, 3R, 4, 4X and IP66 ratings for harsh environments.
Sustained load behaviour
Contacts are rated A600/Q600 for continuous duty at the stated voltage and current. The polycarbonate head and plastic construction resist oil, coolant and wash-down exposure without degradation. Cam C delivers fixed OXOX, OOOO and XOXO switching sequences that remain stable over repeated cycles.
Upgrade context
This switch replaces worn or lower-rated selector operators in existing 30 mm cut-outs where maintained three-position logic is required. The jump is worth it when an application demands both the higher NEMA and IP ingress protection and the 10A contact rating in a single non-illuminated lever unit.
Highlights
- 3-position maintained action gives flexible control
- 30 mm mounting fits standard panels
- DPDT contacts rated 10 A at 600 V AC
- IP66 and NEMA 4X seal out dust and water
- Polycarbonate lever and plastic bezel resist impact
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Does the 30 mm selector switch generate noticeable heat or noise when operated continuously at its 10A 600V AC rating?
The Schneider Electric 9001SKS43BH2 is a passive electromechanical switch with no internal electronics, so it produces no audible noise and negligible heat during continuous operation at its rated 10A 600V AC load.
What mounting hardware or panel cut-out is required to install this 30 mm lever operator?
A standard 30 mm panel cut-out is needed; the switch includes its own mounting nut and bezel, so no separate mounting kit is required for installation.
Will the DPDT contacts and Cam C switching sequence work with legacy relay logic wired for A600/Q600 duty?
Yes, the DPDT contact form and Cam C sequence (OXOX / OOOO / XOXO) are compatible with traditional A600/Q600 rated control circuits, allowing direct replacement in existing panels.
